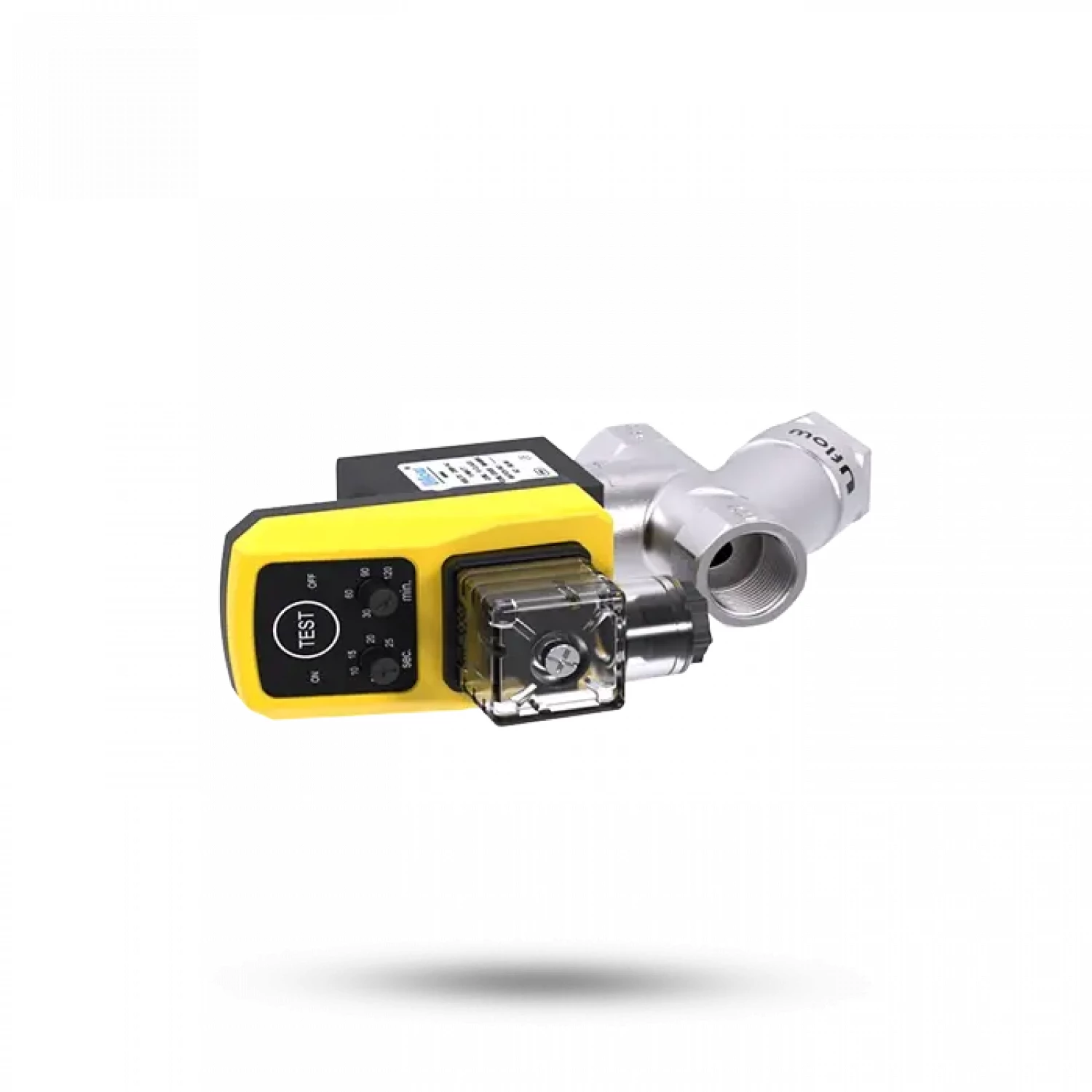

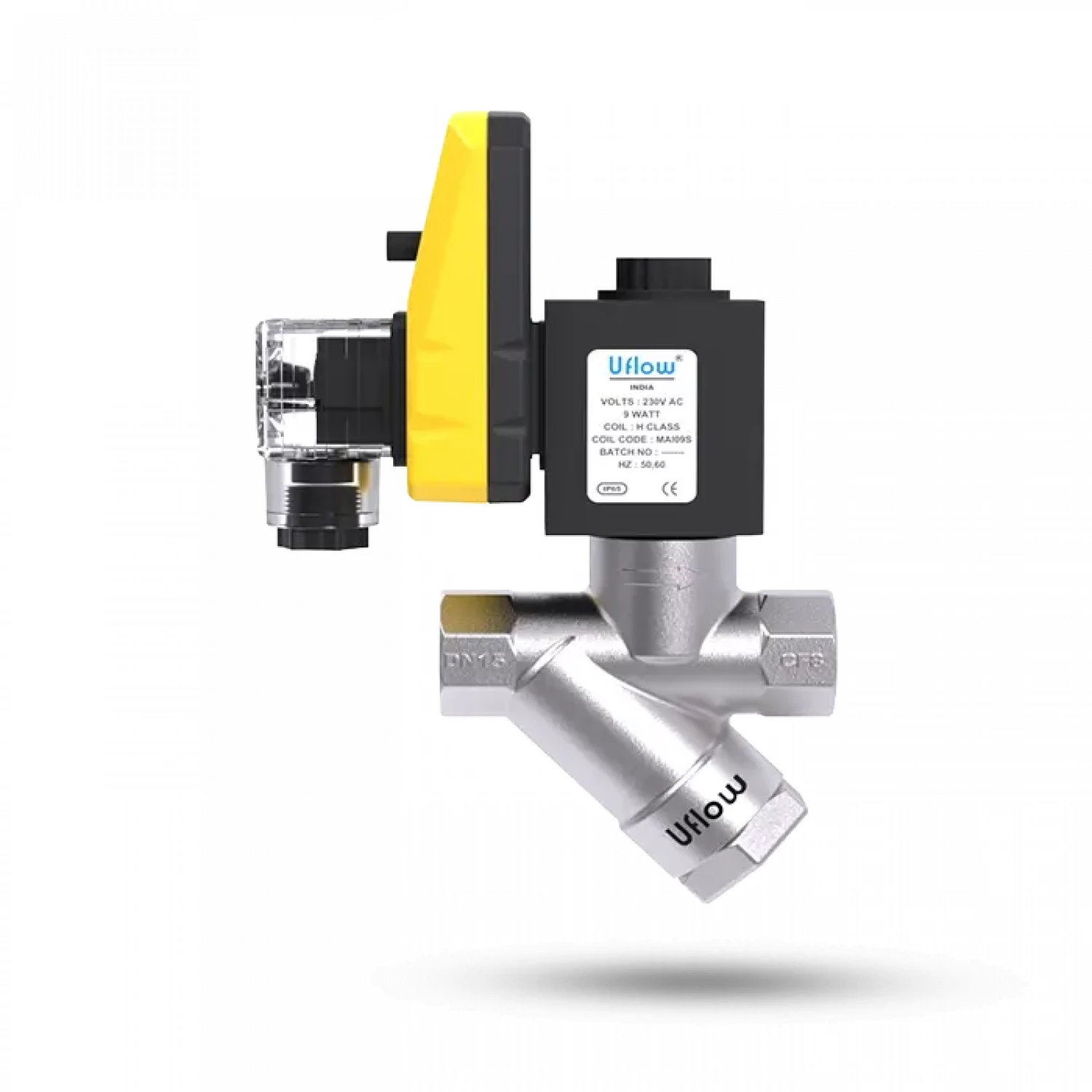

Uflow 2/2 Way Direct Acting Auto Drain Solenoid Valve (NC)

AvailabilityIn Stock
CategorySolenoid Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow 2/2 Way Direct Acting Auto Drain Solenoid Valve (NC) Details

Valve Information

  • Port: ½” - BSP Thread
  • End Connection: Screwed
  • Body Material: CF8 / CF8M
  • Media Temp:
    -30°C to 90°C-10°C to 140°C-10°C to 180°C-10°C to 180°C
  • Diaphragm:
    Nitrile (NBR)EPDMViton (FKM)SPL. Viton
  • Circumstance Temp: -10°C to 70°C
  • Media: Air, Water, Chemical, Gas
  • Main Features: Internal Parts are in superior corrosion-resistant materials
  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as rerequiredCoil Housing: IP65 Epoxy square coil
  • Operating Voltage:
    230V AC12V DC24V DC
    09W09W09W
  • timing: Cycle  1 min to 120 min A,djustable Drain  1 sec to 25 sec A,djustable

Technical Data

Valve Model No.Timer Model No&Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
AD2E013T11ANCF8½”1.3016NBR / EPDM / Viton / SPL. Viton0.05
