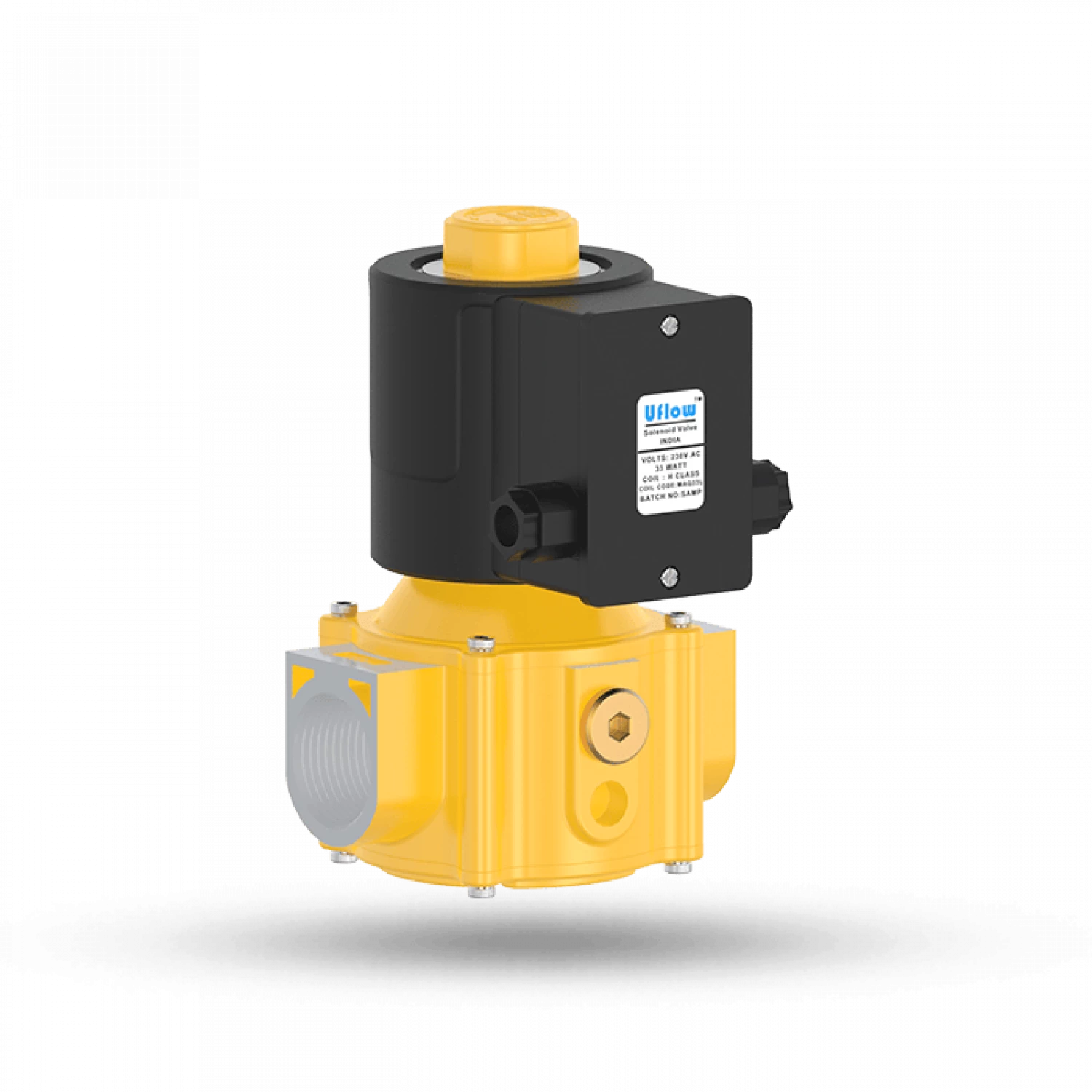

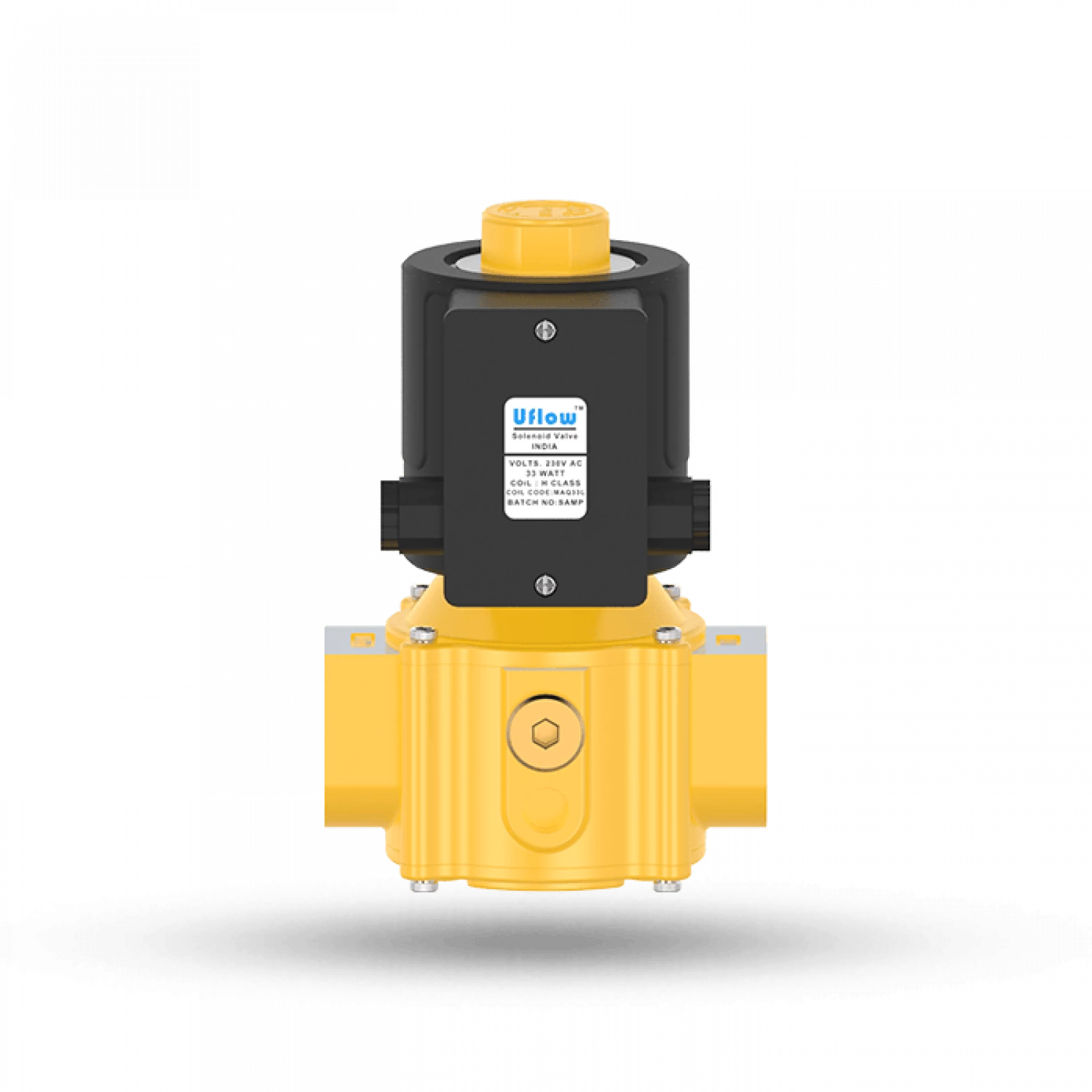

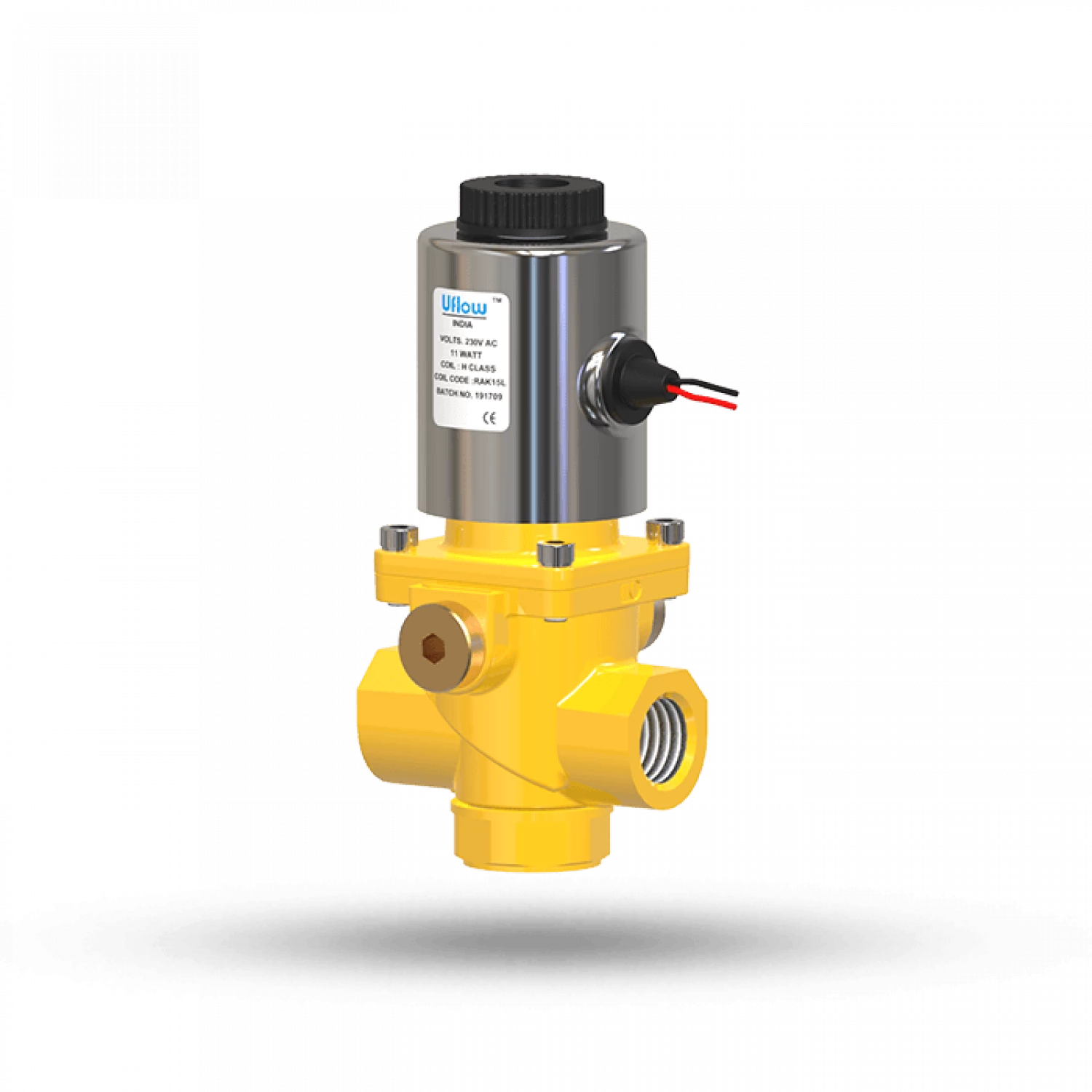

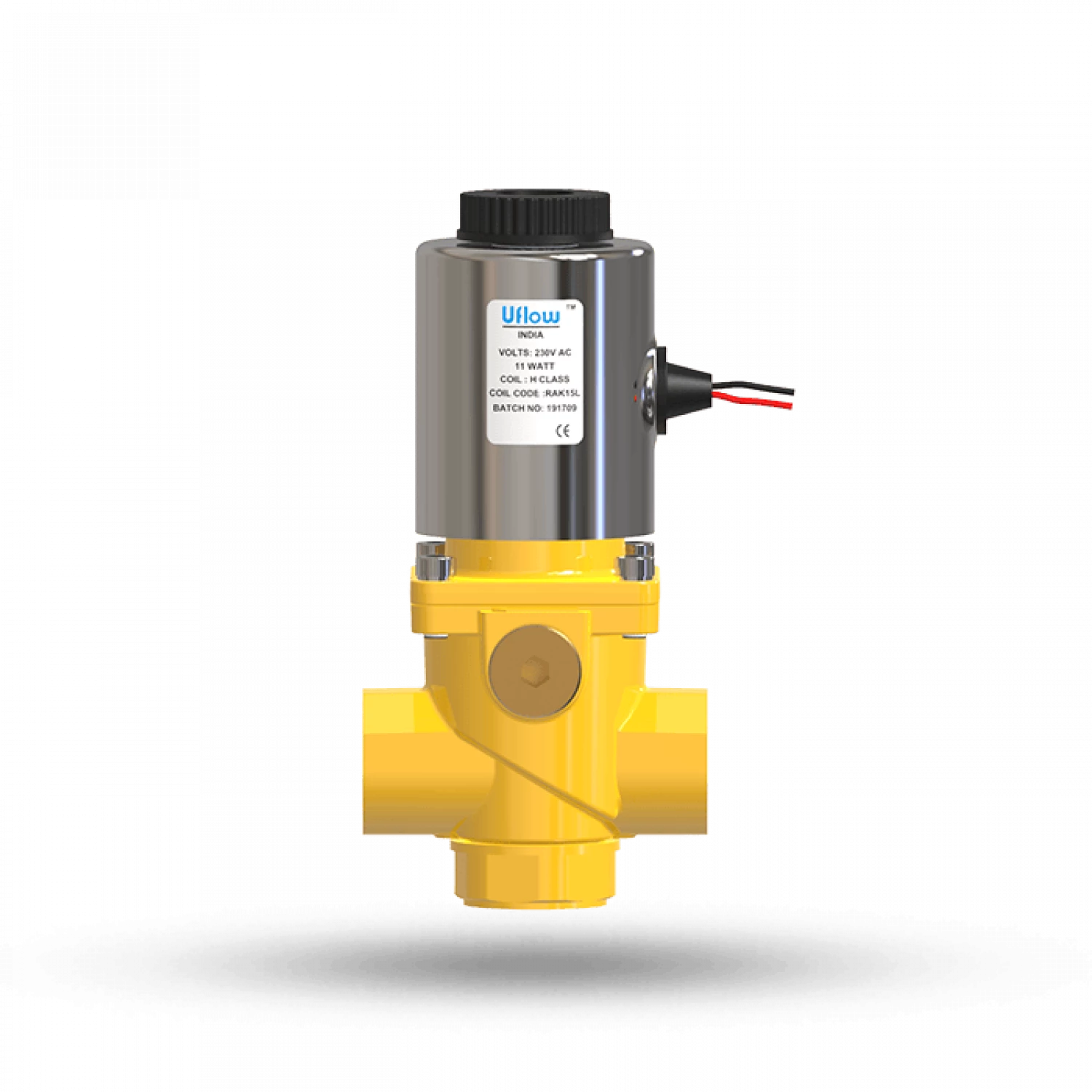

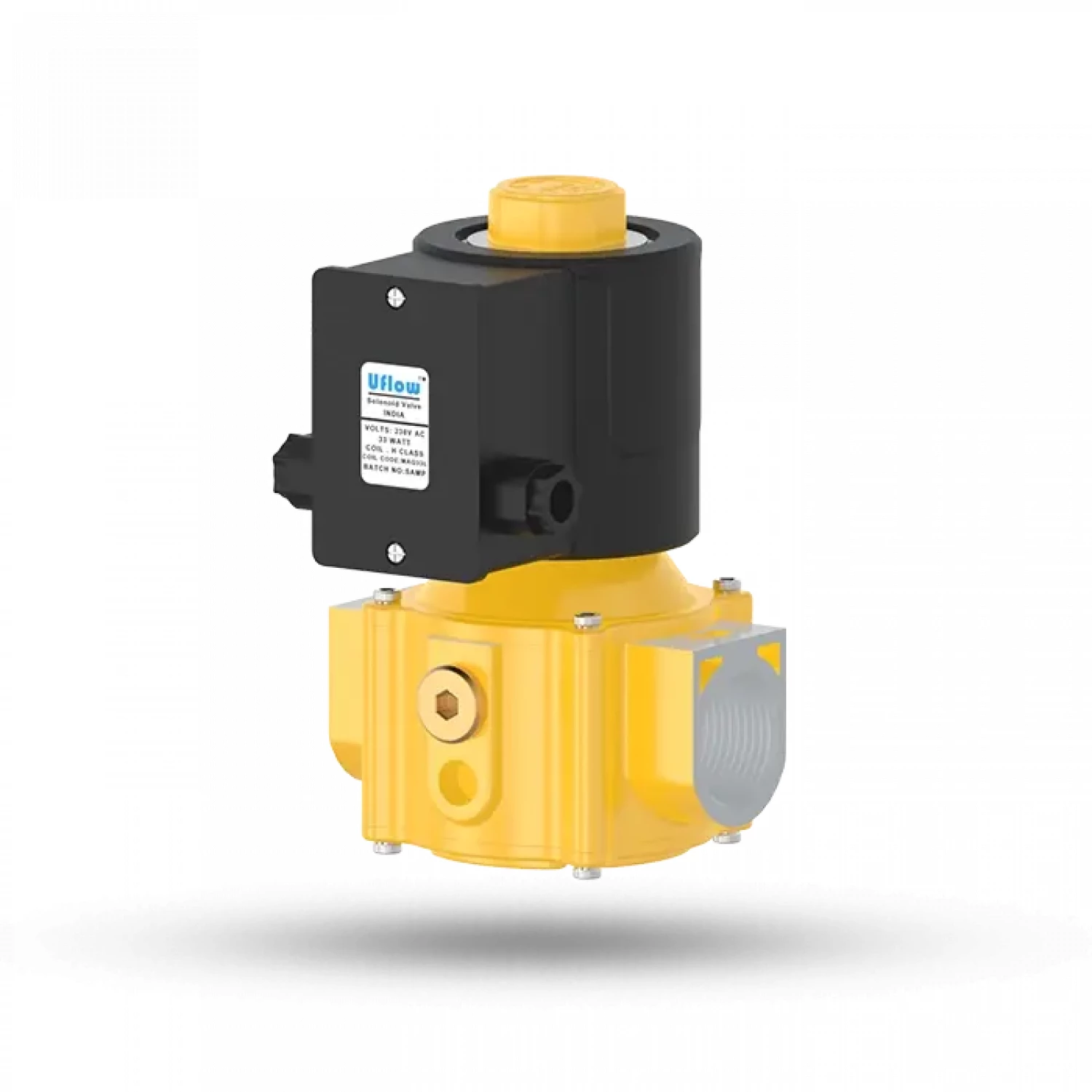

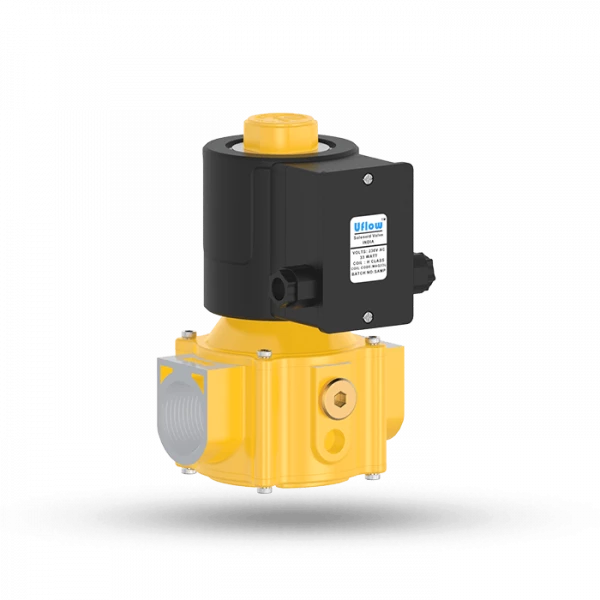

Uflow Gas Solenoid Valve - UGS Series

AvailabilityIn Stock
CategorySolenoid Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Gas Solenoid Valve - UGS Series Details

Valve Information

  • Port: Refer to the technical data sheet (Available BSP)
  • End Connection: Screwed
  • Body Material: Aluminum Pressure Die Cast
  • Media Temp: -30°C to 90°C
  • Diaphragm: Nitrile (NBR)
  • Circumstance Temp: -10°C to 70°C
  • Media: Air, Natural Gas, Town Gas.
  • Main Features: Flow adjustment, Opening time adjustment, Quick release initial flow adjustment
  • Operating Voltage & Power Consumption:
    110AC230AC
    30W30W
  • Other Specification Data: Available on Request

Coil Information

  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as required..
  • Coil Housing: IP65 Epoxy square coil & Power Saver Coil
  • Note: Use of a filter in the inlet port is recommended.

Technical Data

Model No.Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure mbarMax. Operating Pressure mbarSeal & Diaphragm MaterialFlow Factor Kv m³ / hr
UGS-201IAluminium½”150500NBR4
UGS-400KAluminium1”300350NBR13
