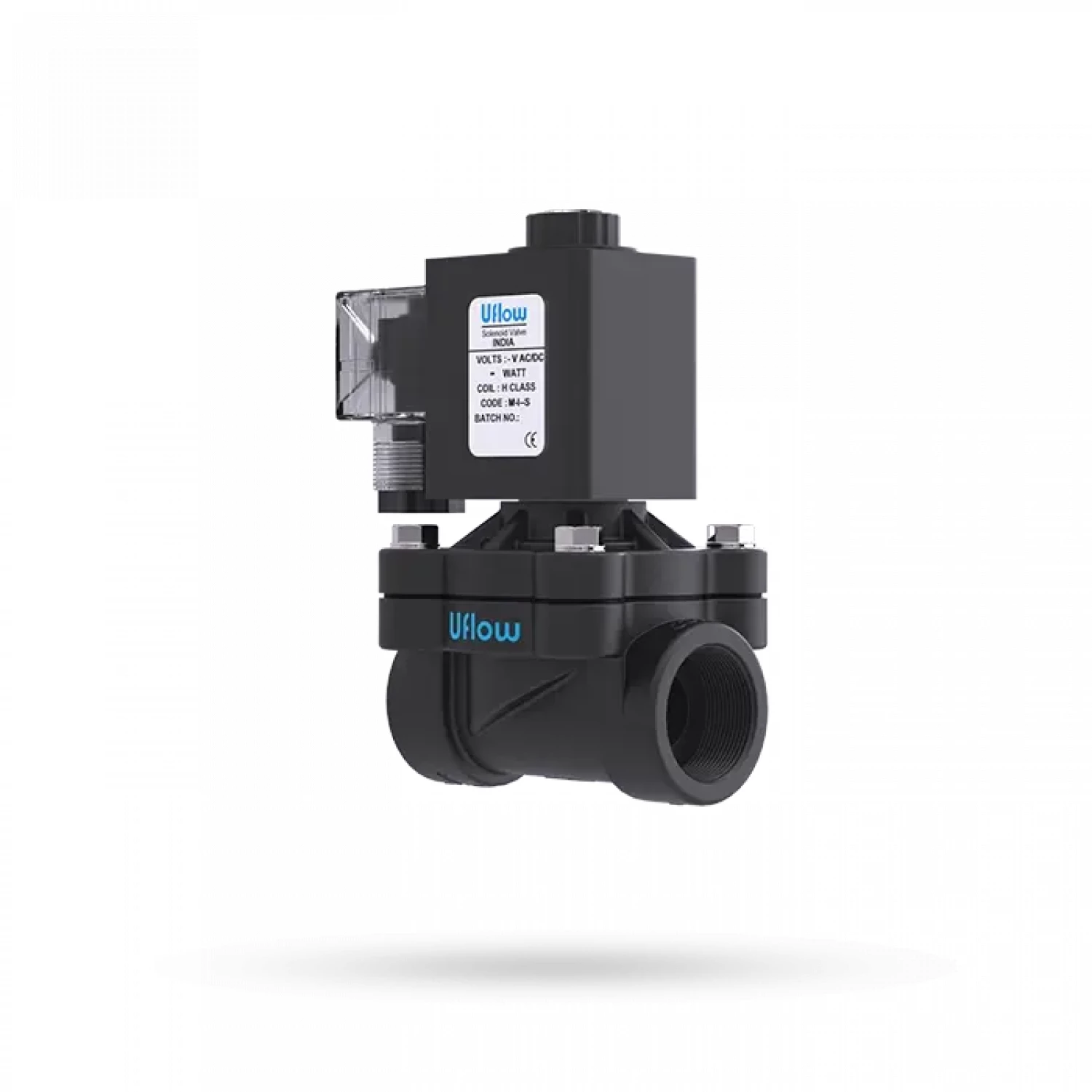

Uflow Semi Lift Diaphragm Operated Plastic Solenoid Valve (NC) - MNN Series

AvailabilityIn Stock
CategorySolenoid Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Semi Lift Diaphragm Operated Plastic Solenoid Valve (NC) - MNN Series Details

Specifications

  • Port: ½”,¾” & 1” (Available in BSP ⁄ BSPT ⁄ NPT)
  • End Connection: Screwed
  • Body Material: Nylon Glass Filled
  • Media Temp: 5°C to 50°C
  • Diaphragm: Nitrile (NBR)
  • Circumstance Temp: -10°C to 50°C
  • Media: Water
  • Main Features: Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
  • Operating Voltage & Power Consumption:
    110AC230AC12DC24DC
    11W10W10W11W
  • Other Specification Data: Available on Request
  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require
  • Coil Housing: IP65 Epoxy square coil, IP65 Metallic round enclosure, IP68 Weatherproof enclosure.
Model No.Body MaterialPipe (Inch)Orific (mm)Min. Operating Pressure mbarMax. Operating Pressure barSeal & Diaphragm MaterialFlow Factor Kv m³ / hr
MNN-2ENylon GF½”1607NBR2.1
MNN-3ENylon GF¾”1607NBR3
MNN-413ENylon GF1”2604NBR8.2
