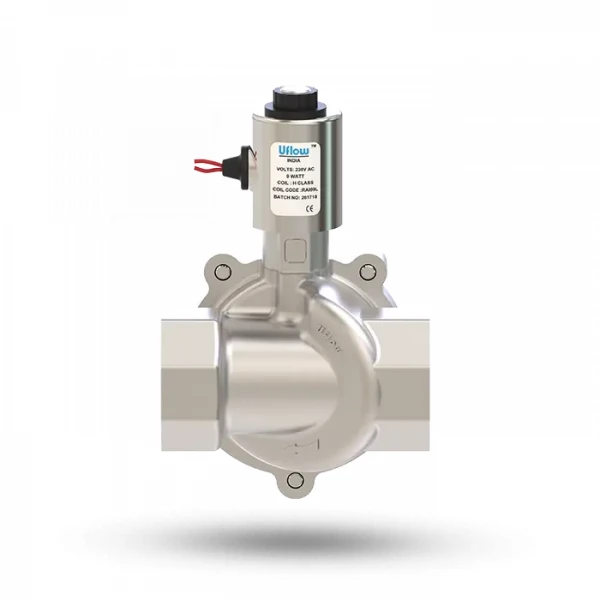

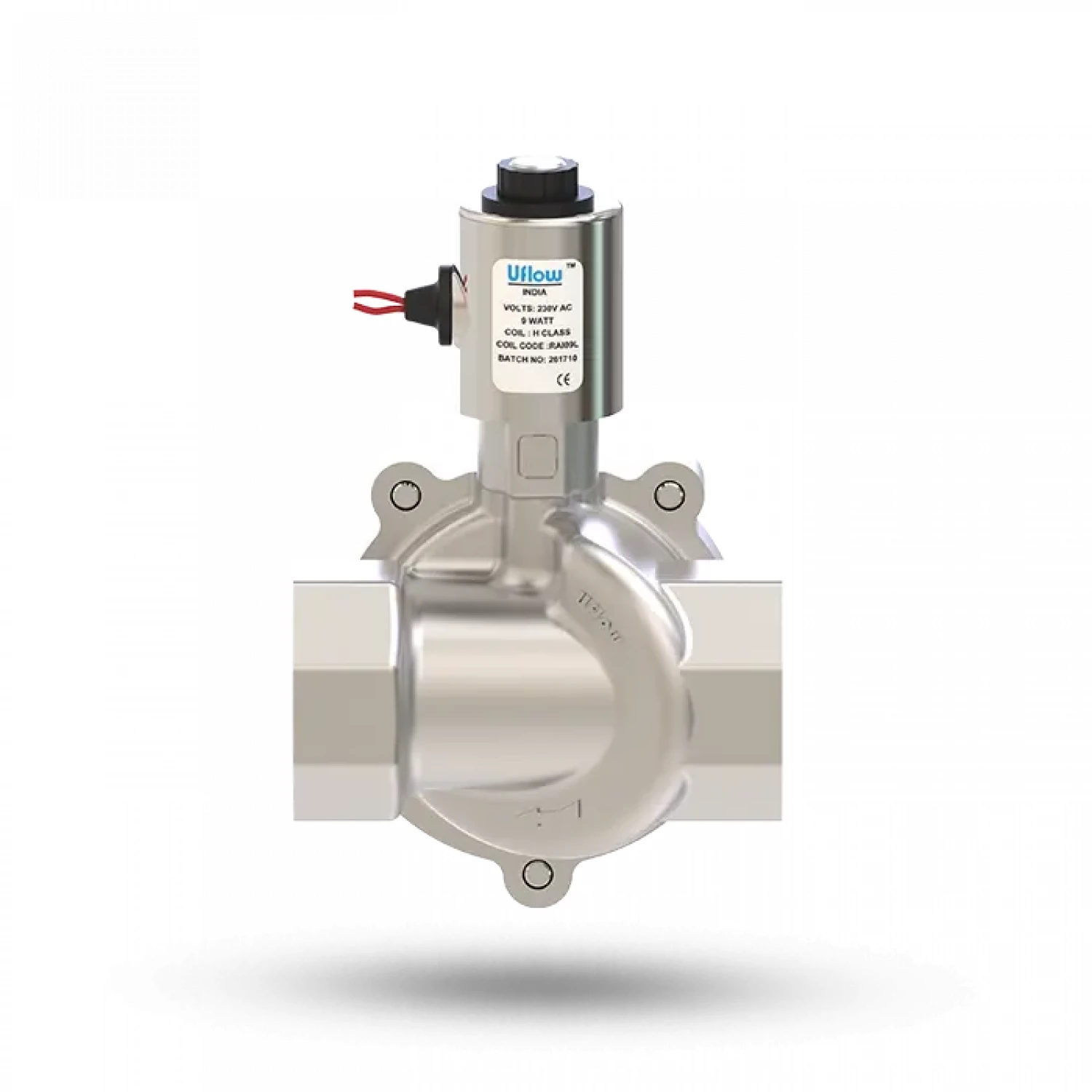

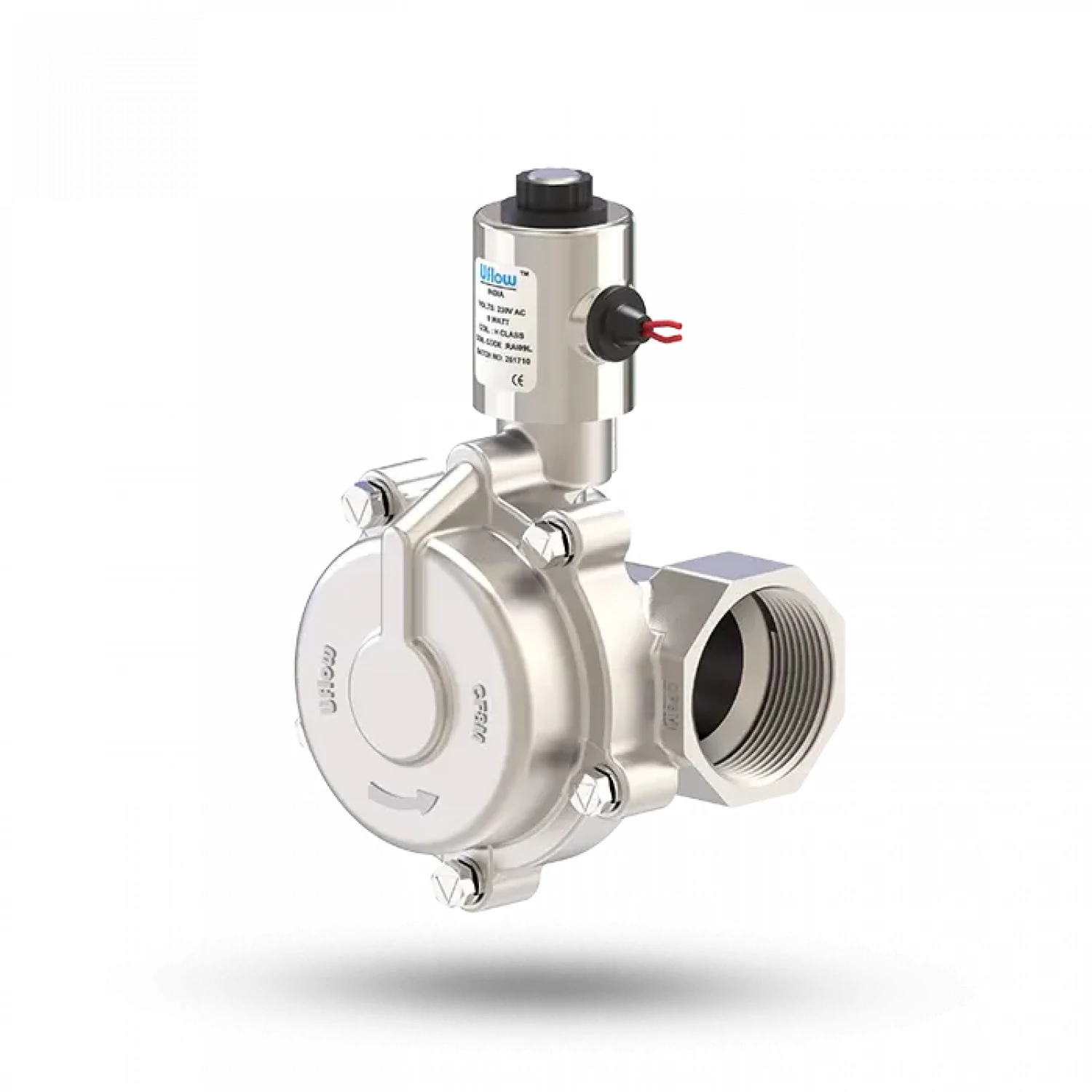

Uflow Pilot Operated Piston Type Steam Valve (NC / NO) - HCP Series

AvailabilityIn Stock
CategorySteam Valve
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pilot Operated Piston Type Steam Valve (NC / NO) - HCP Series Details

Valve Information

  • Port: Refer to the technical data sheet (Available BSP / NPT)

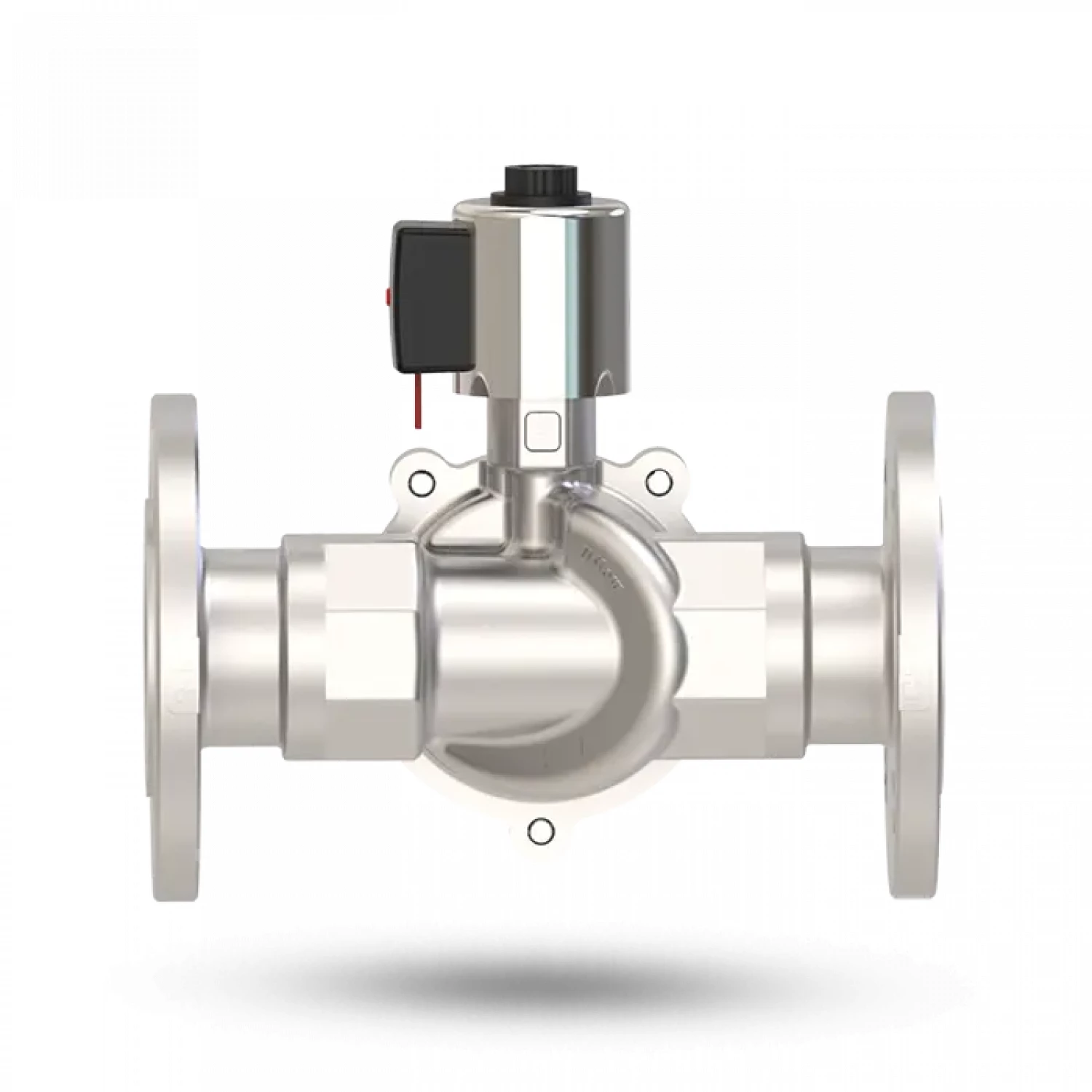

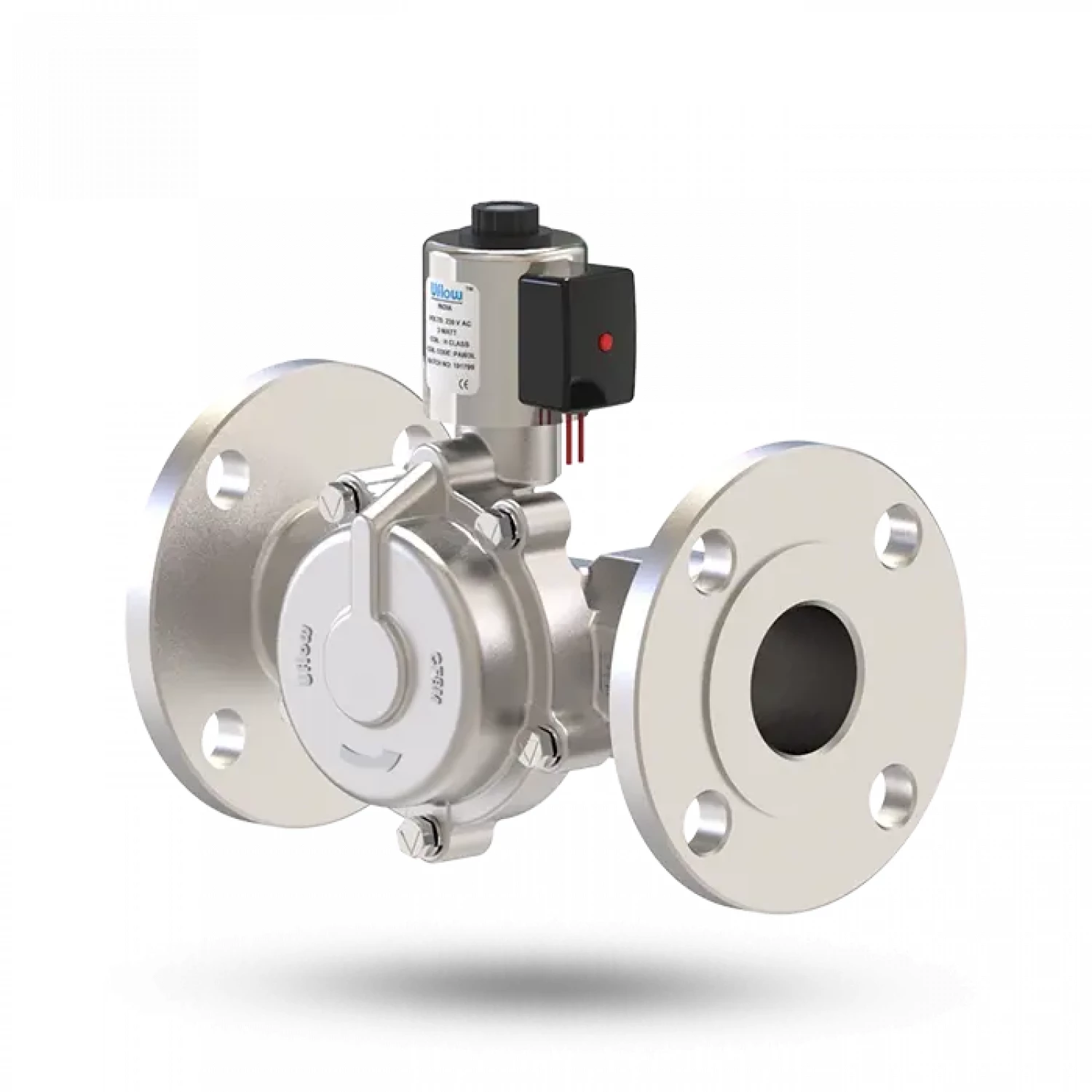

  • End Connection: Screwed / Flange
  • Body Material: SS ASTM A351 Grade CF8 / CF8M
  • Media Temp: -10°C to 180°C ,-10°C to +90°C
  • Diaphragm: PTFE + SPL. Viton , PTFE + NBR
  • Circumstance Temp: -10°C to 70°C
  • Media: Steam, Hot Water, Hot Fluid, Oil
  • Main Features: Internal Parts are in superior corrosion-resistant steel (Equivalent to SS316L).Suitable for Food Industries, Pharmaceuticals, Chemical applications & Highly corrosive environments.
  • Operating Voltage & Power Consumption:
    24AC110AC230AC12DC24DC
    15W
  • Optional Feature: 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
  • Other Specification Data: Available on Request. - Manual Override

Coil Information

  • Coil Features: High Reliability Unaffected by Voltage Surges.Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

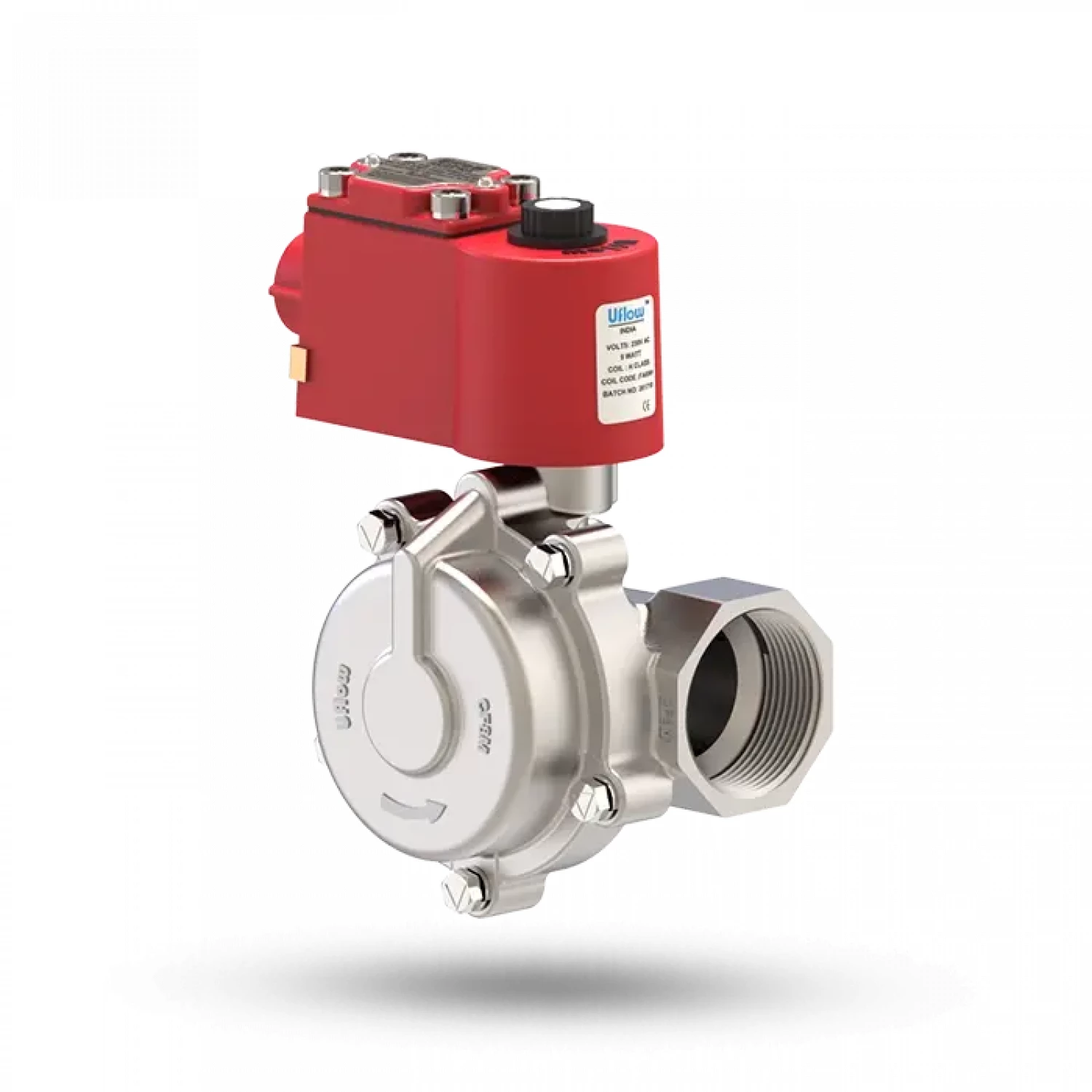

  • Coil Housing: IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure.
  • Note: Use of filter in the inlet port is recommended.

Technical Data

Model No.Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
HCP-2ICF8 / CF8M½”171.512SPL VITON4
HCP-3ICF8 / CF8M¾”201.512SPL VITON7
HCP-4ICF8 / CF8M1”251.512SPL VITON12
HCP-5ICF8 / CF8M1¼”361.512SPL VITON23
HCP-6ICF8 / CF8M1½”361.512SPL VITON23
HCP-8ICF8 / CF8M2”471.512SPL VITON38
HCP-A254ICF8 / CF8M½”17445PTFE4
HCP-A354ICF8 / CF8M¾”20445PTFE7
HCP-A454ICF8 / CF8M1”25445PTFE12
HCP-A554ICF8 / CF8M1¼”36445PTFE23
HCP-A654ICF8 / CF8M1½”36445PTFE23
HCP-A854ICF8 / CF8M2”47445PTFE38
