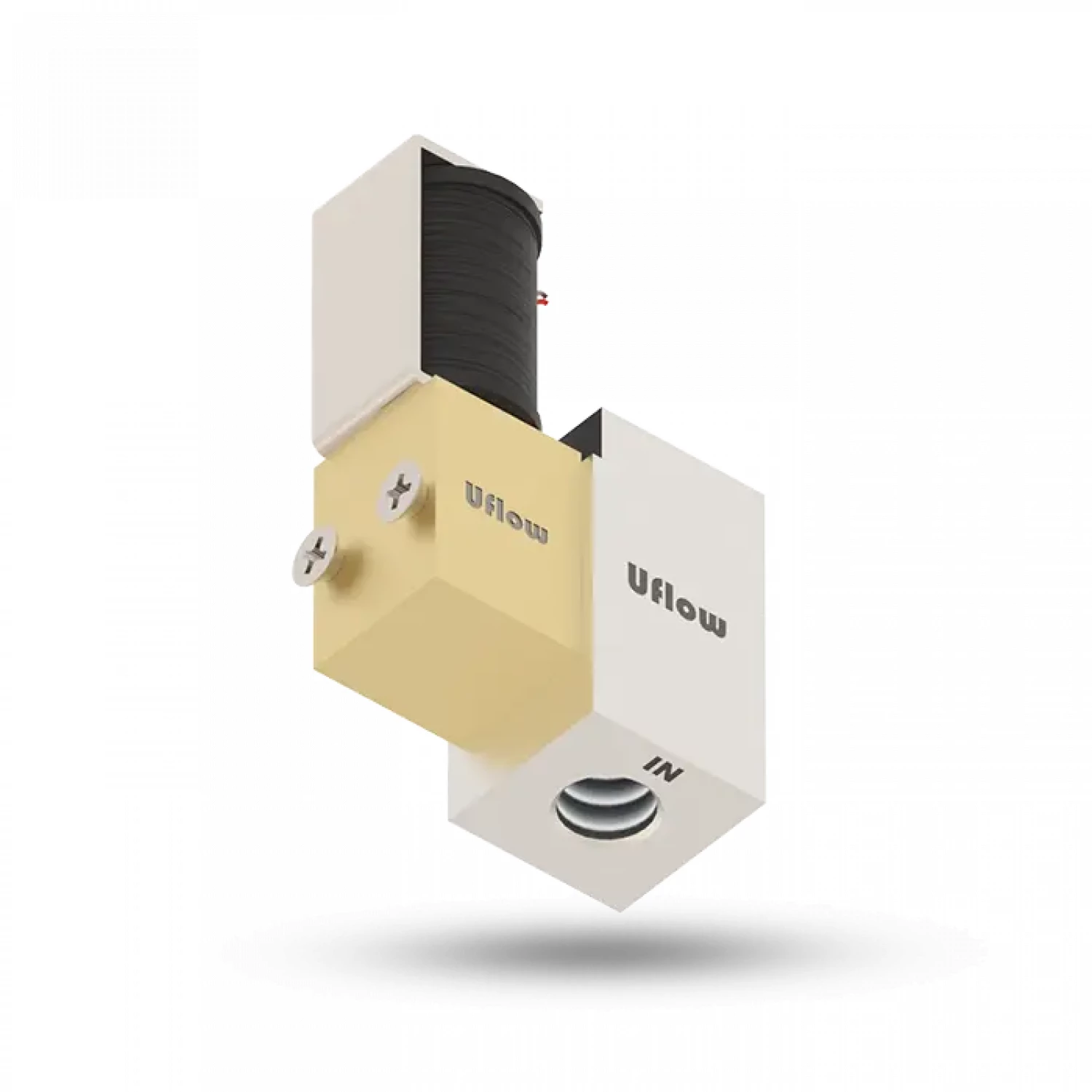

Valve Type: | 2 Way Normally Closed Proportional Valve |
Port: | Manifold Mounting |
Body Material: | Brass |
Seal: | Silicon |
Media: | Air, Oxygen, Nitrous Oxide, Carbon Dioxide, Heliox & Other Medical Gases |
Pressure: | 0 to 60 psi |
LPM: | 150LPM @ 35PSI Differential Pressure |
Power: | 12V DC (2.5 Watts) |
Stem Base: | Stainless steel |
Electric Termination: | 15” Lead Wire |
Operating Environment: | 32˚F to 132˚F (0˚C to 55˚C) |
Storage Temperature: | -40˚F to 158˚F (-40˚C to 70˚C) |
Dimensions: | L-17.6mm, W-16mm, H-53mm |
Weight: | 56g |
Application: | Ventilators, Insufflators, Anesthesia Delivery & Monitors, Pressure & Flow Control and Mass Flow Control |
All Others: | Silicon, VITON , Stainless Steel, Aluminium(Manifold) |
Port Type: | 1/4 |
Body Material: | Aluminium |
Recommendation: | Use 10 MM PU Connector |
