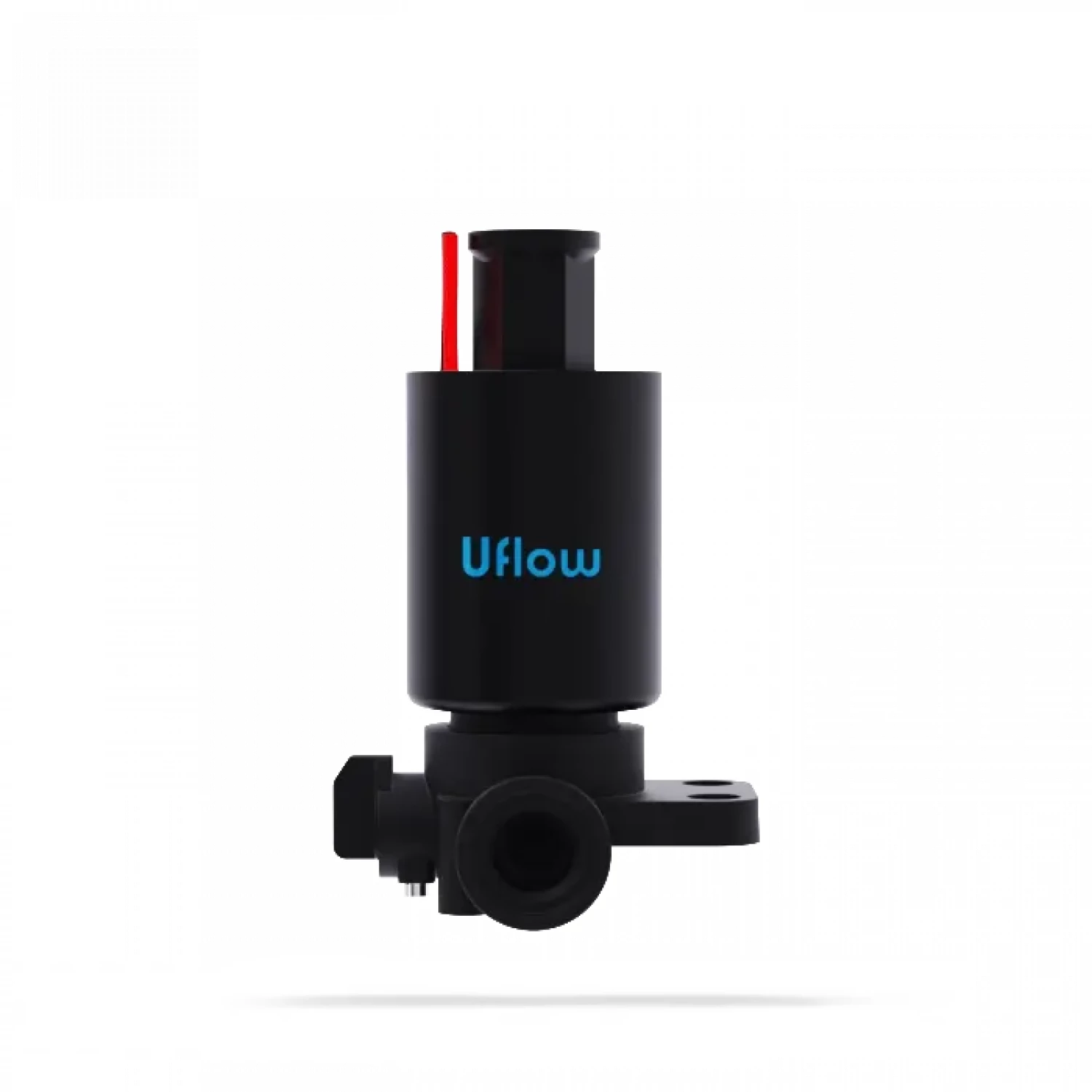

Uflow 2 Way - 3 Way Direct Acting Pilot Solenoid Valve (Normally Close/Open) - DAP Series

AvailabilityIn Stock
CategoryIrrigation Ball Valve
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow 2 Way - 3 Way Direct Acting Pilot Solenoid Valve (Normally Close/Open) - DAP Series Details

2 Way - 3 Way Valve Specifications

Port:

Refer below technical data sheet (Available BSPT / NPT)

End Connection:

Screwed

Body Material:

Nylon GF

Diaphragm:

Nitrile (NBR)

Max Media Temp:

5°C to 50°C

Circumstance Temp:

-10°C to 50°C

Media:

Water

Main Features:

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for irrigation.

operating voltage:

24AC

12DC

24DC - Latching

power consumption:

8W

3W

8W - Latch, 3W - Delatch

coil features:

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Other Specification Data:

Available on Request



Technical Data

Model No.Valve TypeBody MaterialPipe (Inch)Orifice(mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
DAP-DND0162 WayNylon GF¹⁄₈”1.6010NITRILE (NBR)0.07
DAP-TC0123 WayNylon GF¹⁄₈”1.2010NITRILE (NBR)0.042
DAP-TU30123 WayNylon GF¹⁄₈”1.2010NITRILE (NBR)0.042
