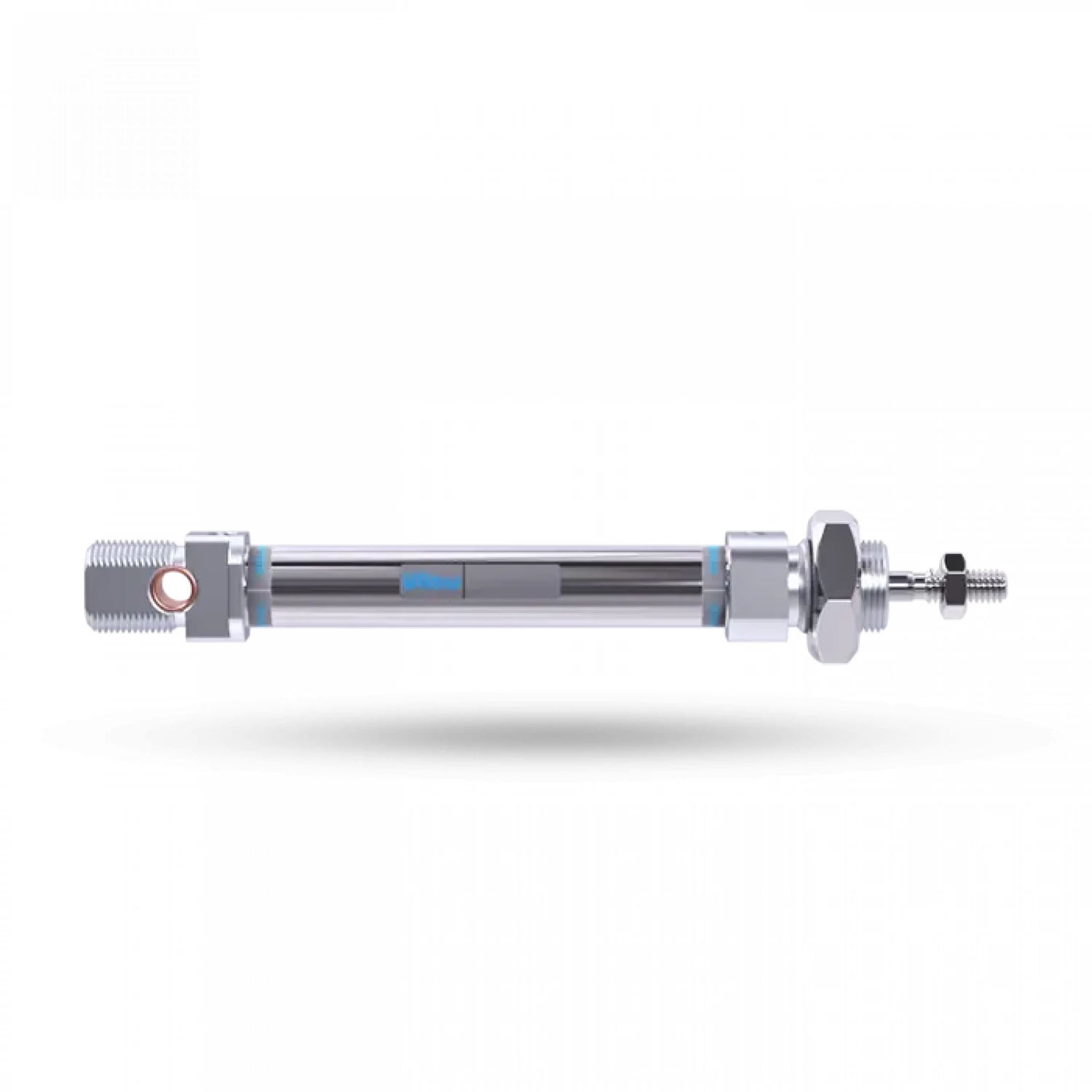

Uflow Miniature Air Cylinder - MXC Series

AvailabilityIn Stock
CategoryAir Cylinders
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Miniature Air Cylinder - MXC Series Details

Specifications

  • Technical Data:
    Cylinder bore Ø (mm)081012162025
    Standard strokes (mm)10, 25, 40, 50, 80, 10010, 25, 40, 50, 80, 100, 125,160, 20010, 25, 40, 50, 80, 100, 125,160, 200, 250, 300
  • Media: Compressed air - filtered - lubricated
  • Working pressure: 1 TO 10 bar
  • Materials of Construction: Aluminum, Brass, Steel, Nitrile, Acetal, Polyurethane
  • Mountings: Foot Mounting, Front / Rear Flange, Male Clevis, Female Clevis, Center Trunnion, Front Trunnion, Rear Trunnion
  • Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye
  • Ambient Temperature:-10°C to +70°C
  • Media Temperature: +5°C to 50° C
