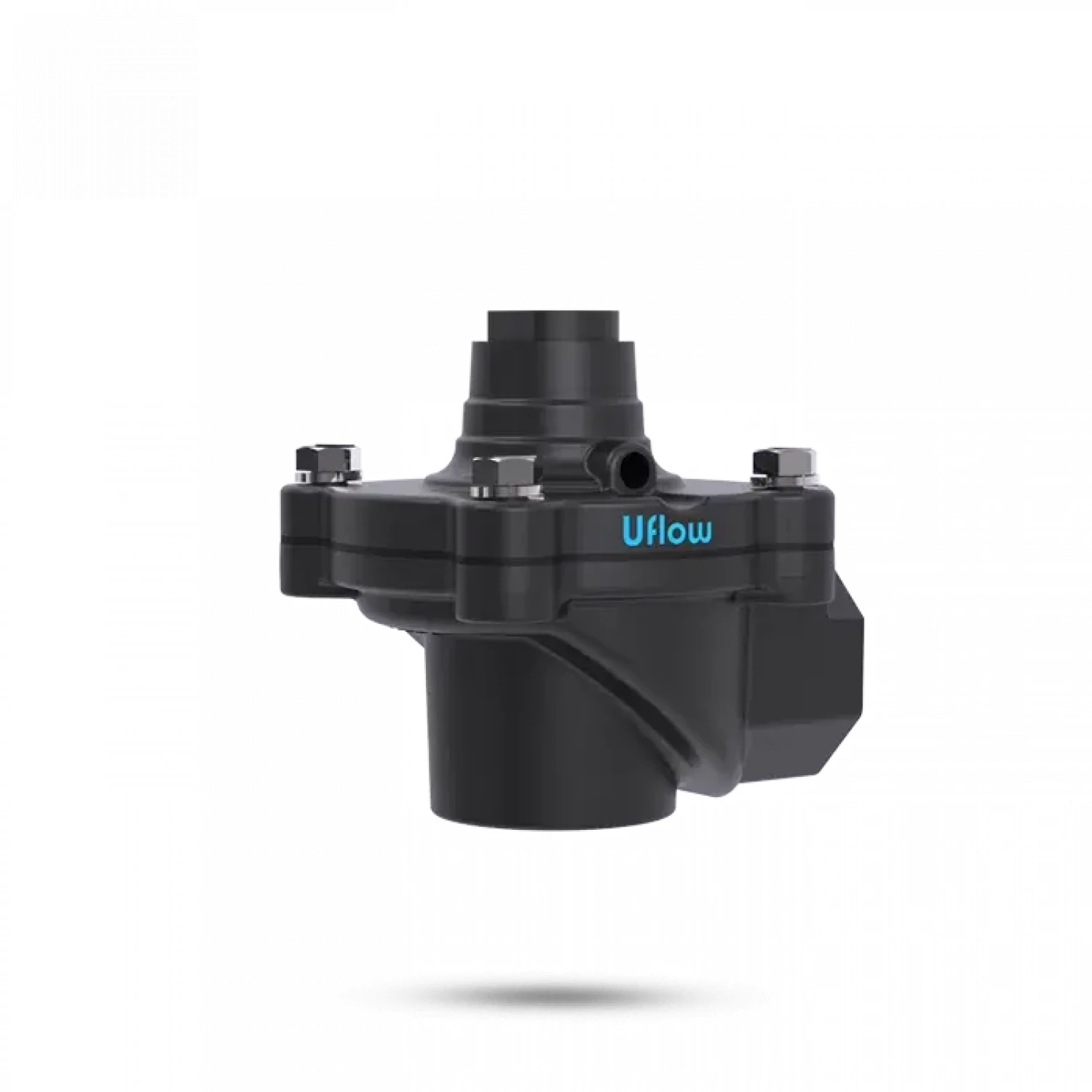

Uflow External Pilot Operated Pulse Jet Angle Type Dust Collector Valve - EPS Series

AvailabilityIn Stock
CategoryPulse Jet Valve
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow External Pilot Operated Pulse Jet Angle Type Dust Collector Valve - EPS Series Details

Specification

Port:

1” - BSP Thread

External Port:

1/8" BSP (F)

End Connection:

Screwed

Body Material:

Aluminium

Diaphragm:

Nitrile (NBR)

Media Temp:

-30°C to 90°C

Circumstance Temp:

-10°C to 70°C

Media:

Air

Note:

Use of filter in the inlet port is recommended. Specification may change without prior notice.

Technical Data


Valve Model NoBody MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
EPS-4Aluminium1"28.50.58.5Nitrile (NBR)16

Request For Quotation
