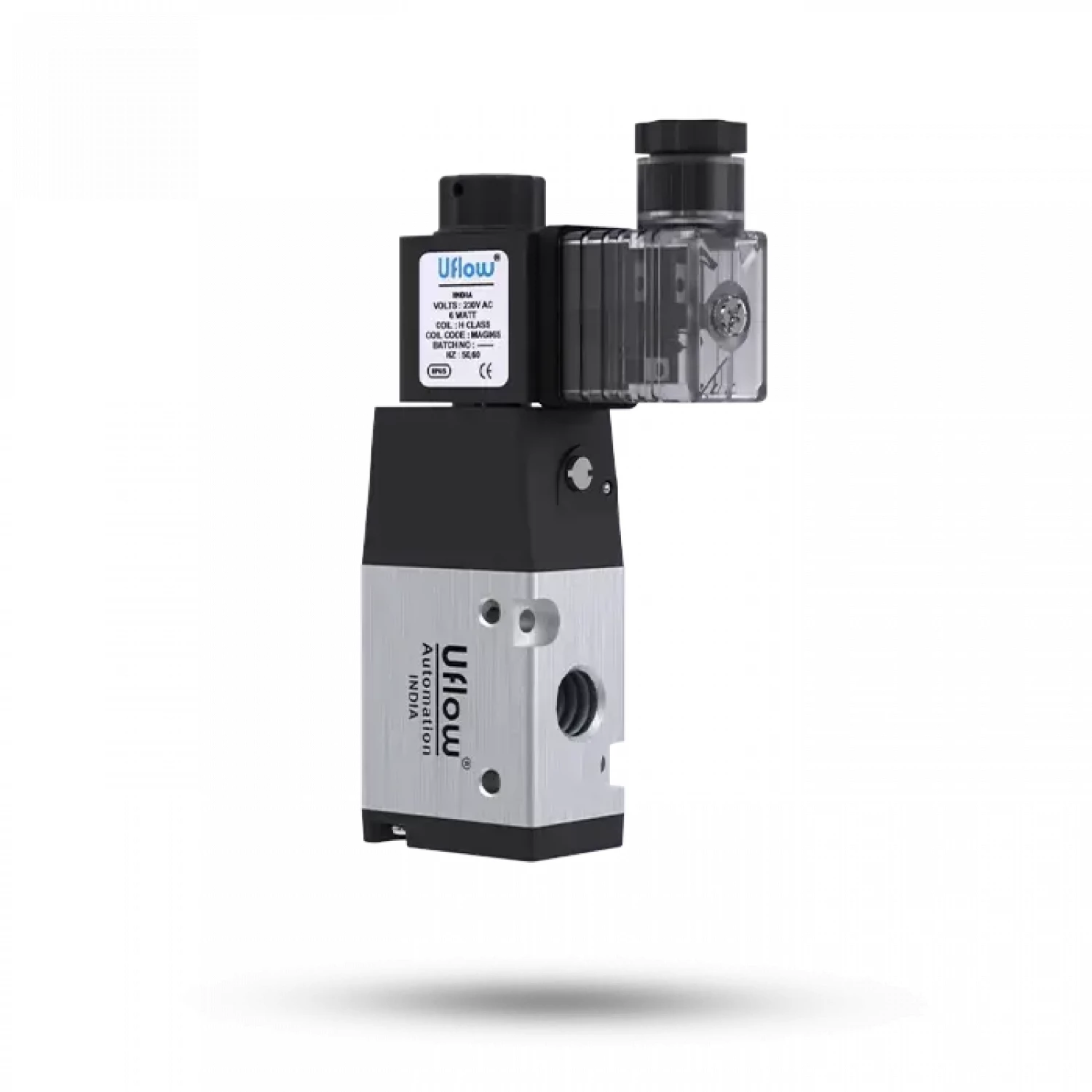

Uflow 3/2 Single Solenoid Valve With Spring Return (NC/NO) - DCC Series

AvailabilityIn Stock
CategorySolenoid Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow 3/2 Single Solenoid Valve With Spring Return (NC/NO) - DCC Series Details

Valve Information

  • Type: 3X2
  • Design: Spool with Cartridge Type
  • Media: Compressed Air, Filtered & Lubricated
  • Working Pressure Range: 2 - 10 bar
  • Ambient/Medium Temperature: 5°- 60° C
  • Materials of Construction: Aluminum, Nitrile, Brass, Polymer

Coil Information

  • Coil Width: 26 mm
  • Coil Bore: 10 mm
  • Voltage (V) + 10%: AC (50Hz, 60Hz) - 24V, 110V, 230V DC 12V, 24V,36V,48V,110V
  • Power Consumption: AC-6W, DC-6W
  • Duty Cycle: Continuous
  • Class of Insulation: Class H
  • Type of Coil Protection: IP65
  • Coil Housing: Epoxy Square Coil
