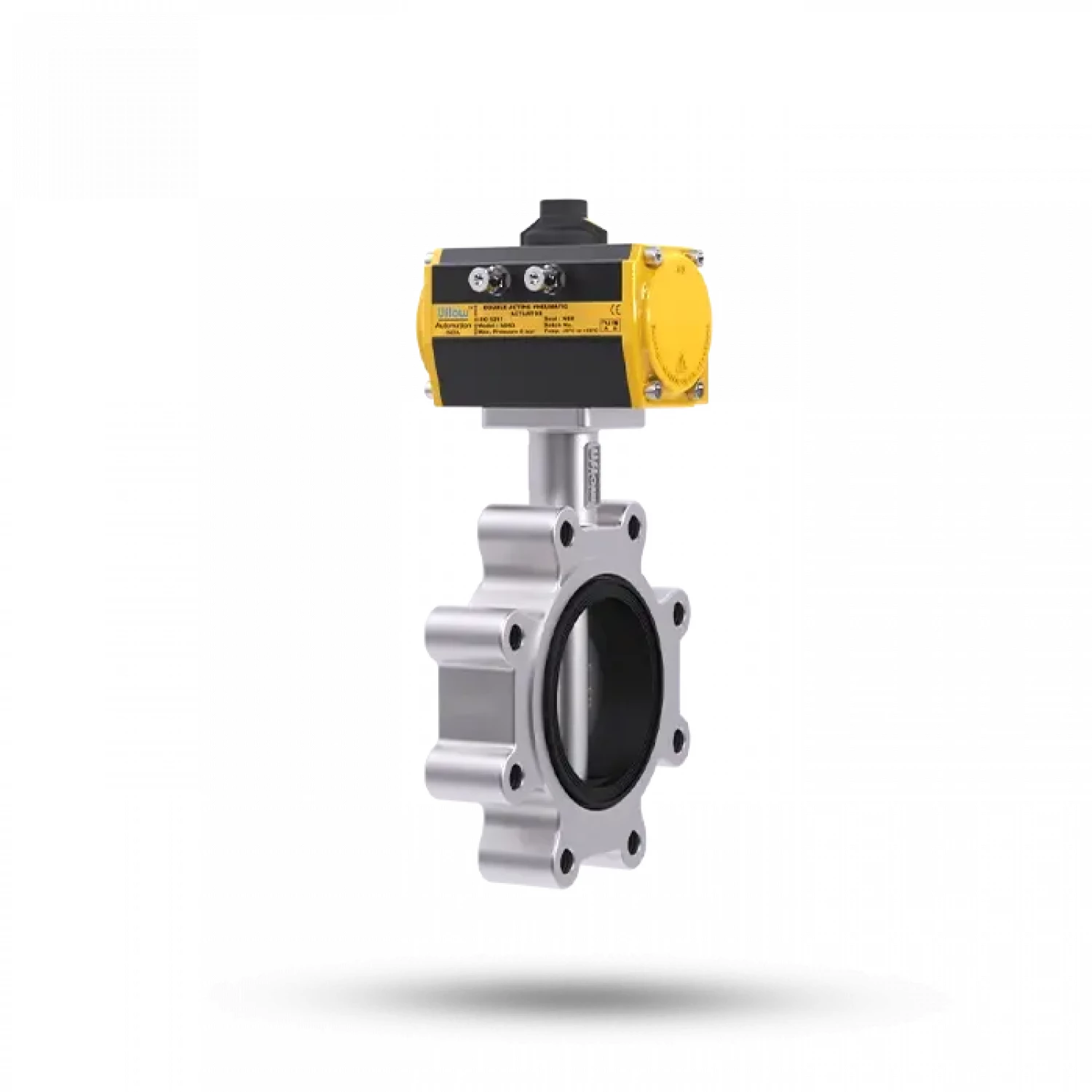

Uflow Pneumatic Operated Lug Type Butterfly Valve - PN16 - BL Series

AvailabilityIn Stock
CategoryButterfly Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Operated Lug Type Butterfly Valve - PN16 - BL Series Details

Specifications

End Connection:

Lug

Range:

DN50 - DN300

Suitable to:

ASMI B16.5 150#

Pressure Range:

PN16

Leakage Class:

100% Tightness at fully differential pressure

Standard:

API 609, BS 5155, ISO 5211, API 598, ASME B16.5

Body Material:

Cast Iron(CI), SGI, WCB, CF8, CF8M

Disc Material:

SGI, CF8, CF8M, WCB

Stem Material:

SS410, SS304, SS316

Body Liner / Seat Material:

NBR, EPDM, VITON, SILICONE, PTFE

Shaft Bearing Material:

PTFE

Diaphragm & Media Temp:

PTFE

RPTFE

CFT

GFT

-30°C to 200°C

-30°C to 200°C

-30°C to 200°C

-30°C to 180°C



Technical Data - with Double-Acting Actuator

SizeActuatorCouplerABØDF/FØLMNOMounting Flange
50 MM50NA170-50431209913085F05
65 MM50NA192-65461409913085F05
80 MM63C1455219408046152.5112147105F05
100 MM80C47772584010052190.5128170114F07
125 MM80NA287-12556216128170114F07
150 MM100C72773184015056241154220150F07
200 MM125NA393-20060298185389173F10
250 MM150C28004656125068362219465205F10

Technical Data - with Single-Acting Actuator

SizeActuatorCouplerABØDF/FØLMNOMounting Flange
50 MM80C1755170405043120128234114F05
65 MM80C1755192406546140128234114F05
80 MM100C1257219408046152.5153.5324151F05
100 MM100C42772584010052190.5153.5324151F07
125 MM125C72702876112556216185389173F07
150 MM 150C78703186115056241219465205F07

All dimensions are in mm. All dimensions are approx.
