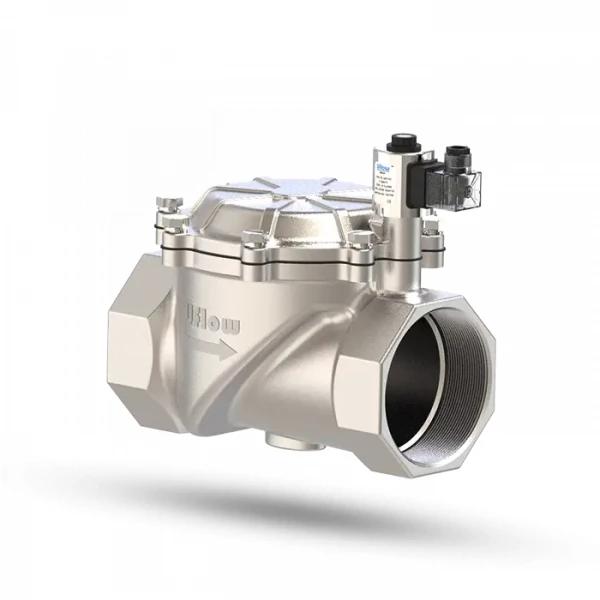

Uflow Pilot Operated Diaphragm Type Solenoid Valve (NC) - PBN Series

AvailabilityIn Stock
CategorySolenoid Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pilot Operated Diaphragm Type Solenoid Valve (NC) - PBN Series Details

Valve Information

  • Port: Refer to the technical data sheet (Available BSP / NPT)

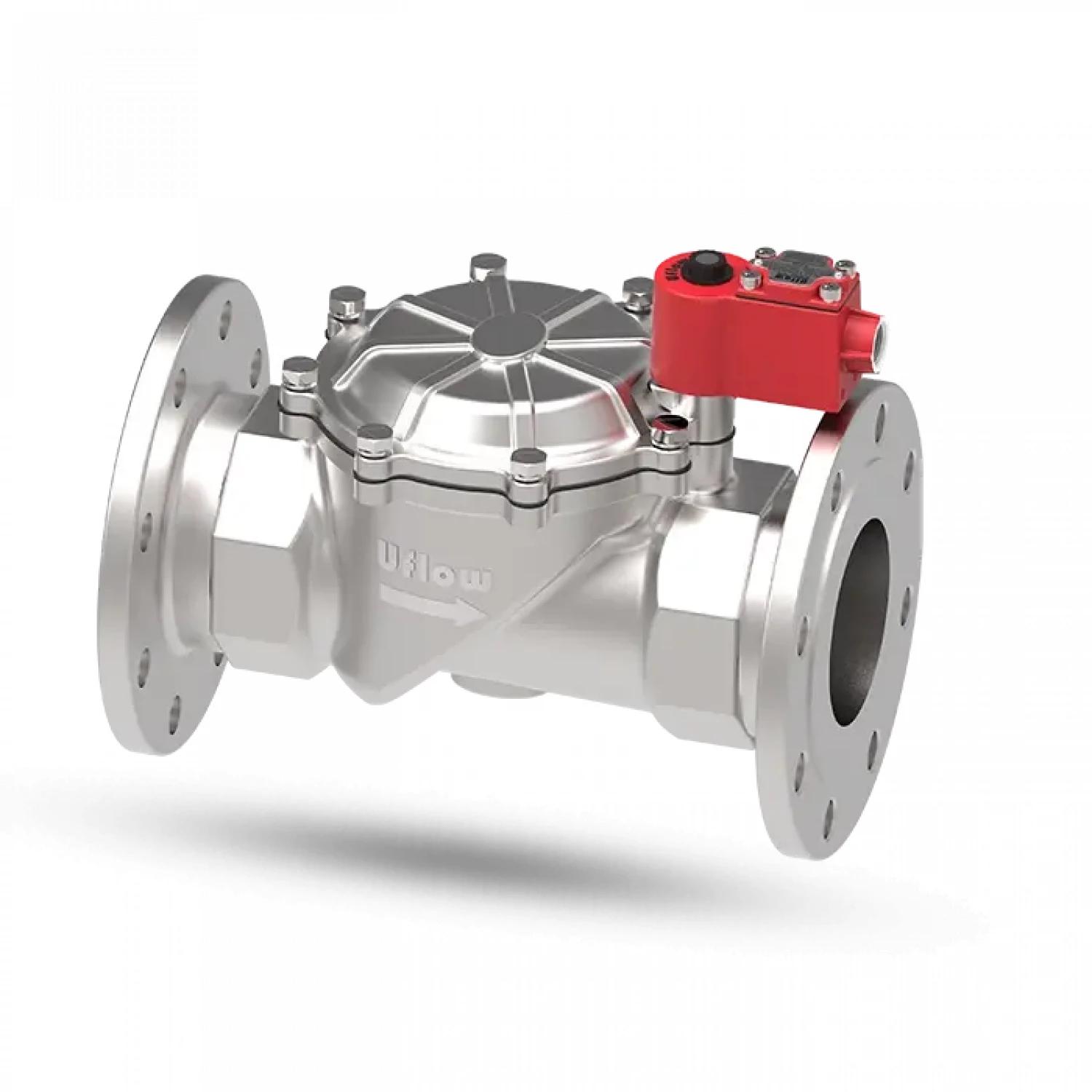

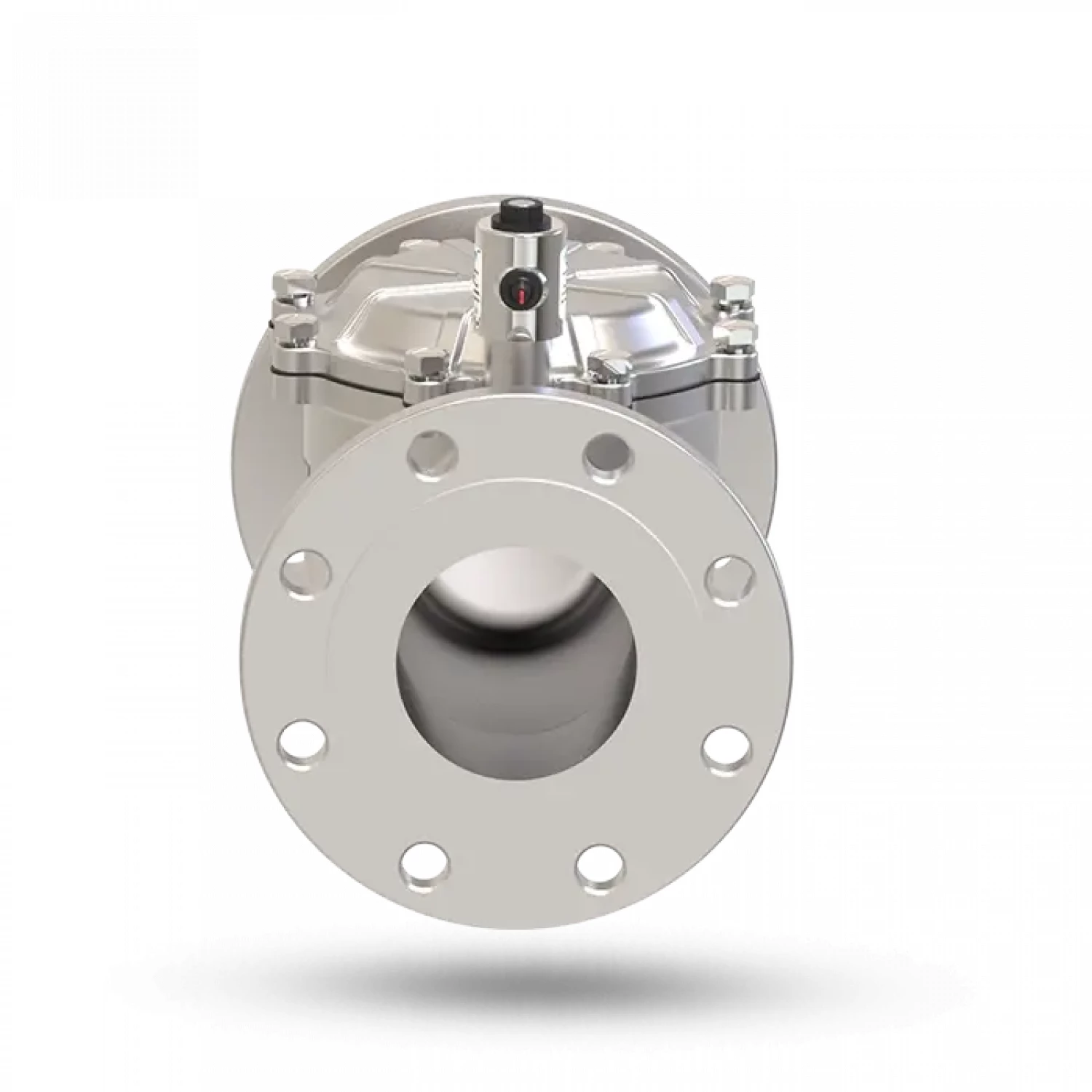

  • End Connection: Screwed / Flange

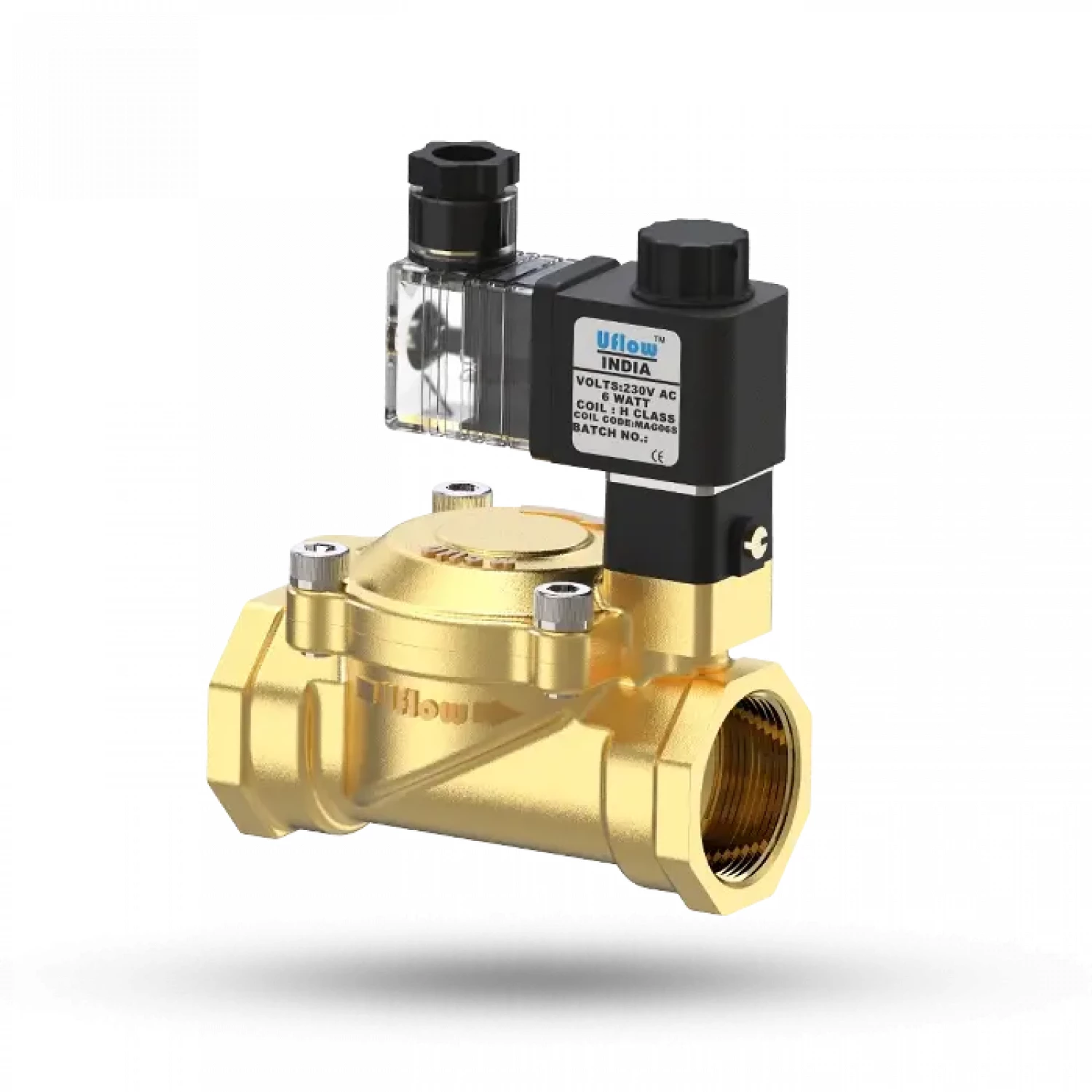

  • Body Material: Forged Brass
  • Diaphragm:
    Nitrile(NBR)EPDMViton(FKM)
    -30°C to 90°C-10°C to 140°C-10°C to 180°C
  • Circumstance Temp: -10° C to 70° C
  • Media: Air, Water, Chemical, Gas, Oil, Diesel, Kerosene, LPG.
  • Main Features: Internal Parts are in superior corrosion-resistant steel (Equivalent to SS316L).Suitable for Food Industries, Pharmaceuticals, Chemical applications, & Highly corrosive environments.
  • Operating Voltage & Power Consumption:
    24AC110AC230AC12DC24DC
    9W / 6W9W / 6W9W / 6W10W / 6W11W / 6W
  • Optional Feature: 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
  • Other Specification Data: Available on Request

Coil Information

  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as required.
  • Coil Housing: IP65 Epoxy square coil, IP65 Metallic round enclosure, IP68 Weatherproof enclosure.
  • Note: Use of a filter in the inlet port is recommended.

Technical Data

Model No.Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
PBN-7CMBRASS⅜"160.510NBR / EPDM / VITON1.5
PBN-2CMBRASS½”160.510NBR / EPDM / VITON2.1
PBN-3CMBRASS¾”200.510NBR / EPDM / VITON5.5
PBN-4CMBRASS1”250.510NBR / EPDM / VITON9
PBN-5CMBRASS1¼”360.510NBR / EPDM / VITON17.1
PBN-6CMBRASS1½”360.510NBR / EPDM / VITON17.1
PBN-8EBRASS2”500.510NBR / EPDM / VITON29.9
