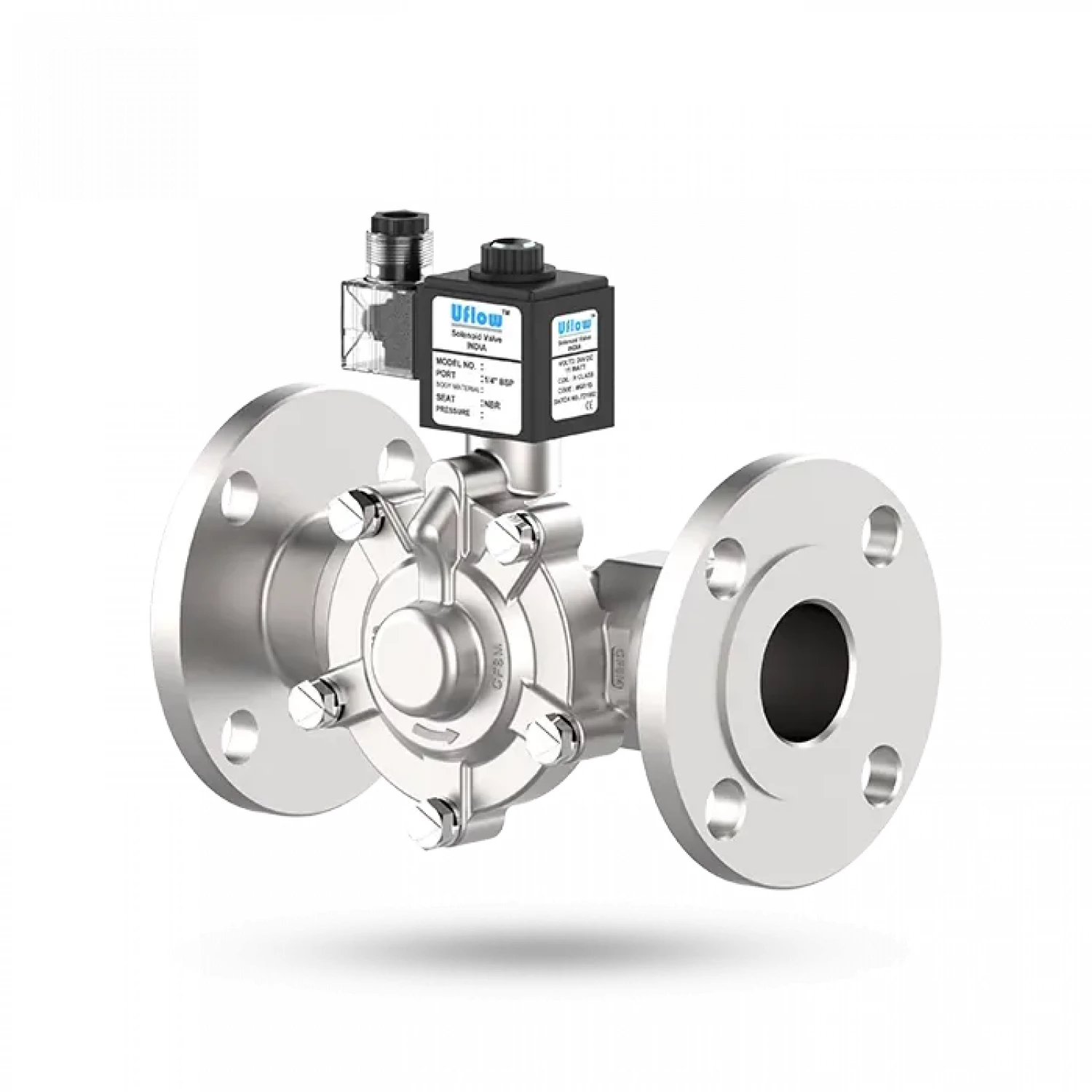

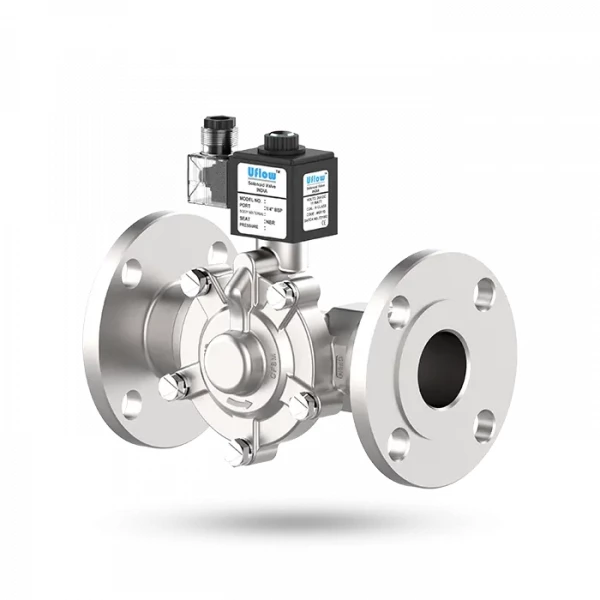

Uflow Pilot Operated Diaphragm Valve (Flange) - PCN Series

AvailabilityIn Stock
CategoryDiaphragm Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pilot Operated Diaphragm Valve (Flange) - PCN Series Details

Valve Information

Port: Refer to the technical data sheet (Available BSP / NPT)
End Connection: Screwed / Flange
Body Material: SS ASTM A351 Grade CF8 / CF8M, Forged Brass
Media Temp & seal o-ring:

Nitrile (NBR)EPDMViton (FKM)
-30° C to 90° C-10° C to 140° C-10° C to 180° C

Circumstance Temp: -10° C to 70° C
Media: Air, Water, Chemical, Gas, Oil, Diesel, Kerosene, LPG.
Main Features: Internal Parts are made of superior corrosion-resistant steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications, & Highly corrosive environments
Operating Voltage & Power Consumption:

24AC110AC230AC12DC24DC
9W9W9W10W11W
Optional Feature: 90% Power saver series also available, Manual Override. A water hammer reducer is also available to avoid water hammer forces.
Other Specification Data: Available on Request. - High Pressure 20Kg Series. - Manual Override

Coil Information

Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as required.

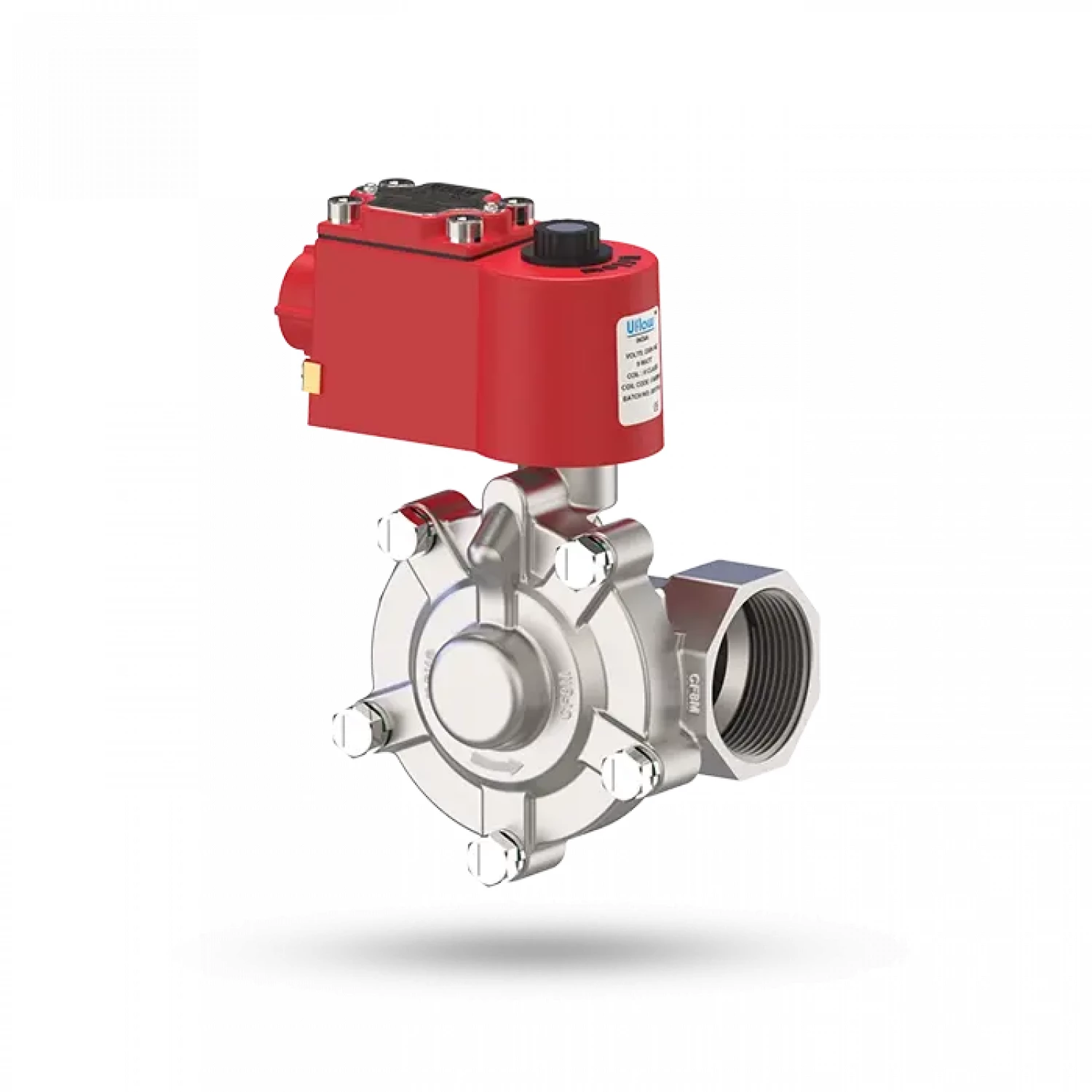

Coil Housing: Epoxy square coil, Metallic round enclosure, IP-68 Weatherproof enclosure.
Note: Use of a filter in the inlet port is recommended.

Technical Data

Model No.Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
PCN-2DECF8 / CF8M½”170.512NBR / EPDM / VITON4.4
PCN-3DECF8 / CF8M¾”200.512NBR / EPDM / VITON3.7
PCN-4DECF8 / CF8M1”250.512NBR / EPDM / VITON10
PCN-5DECF8 / CF8M1¼”360.512NBR / EPDM / VITON12.2
PCN-6DECF8 / CF8M1½”360.512NBR / EPDM / VITON17.1
PCN-8DECF8 / CF8M2”480.512NBR / EPDM / VITON33.3
PCN-9DECF8 / CF8M2½”600.512NBR / EPDM / VITON43.5
PCN-ADECF8 / CF8M3”720.512NBR / EPDM / VITON64.5
PCN-BDICF8 / CF8M4”980.520NBR / EPDM / VITON115
