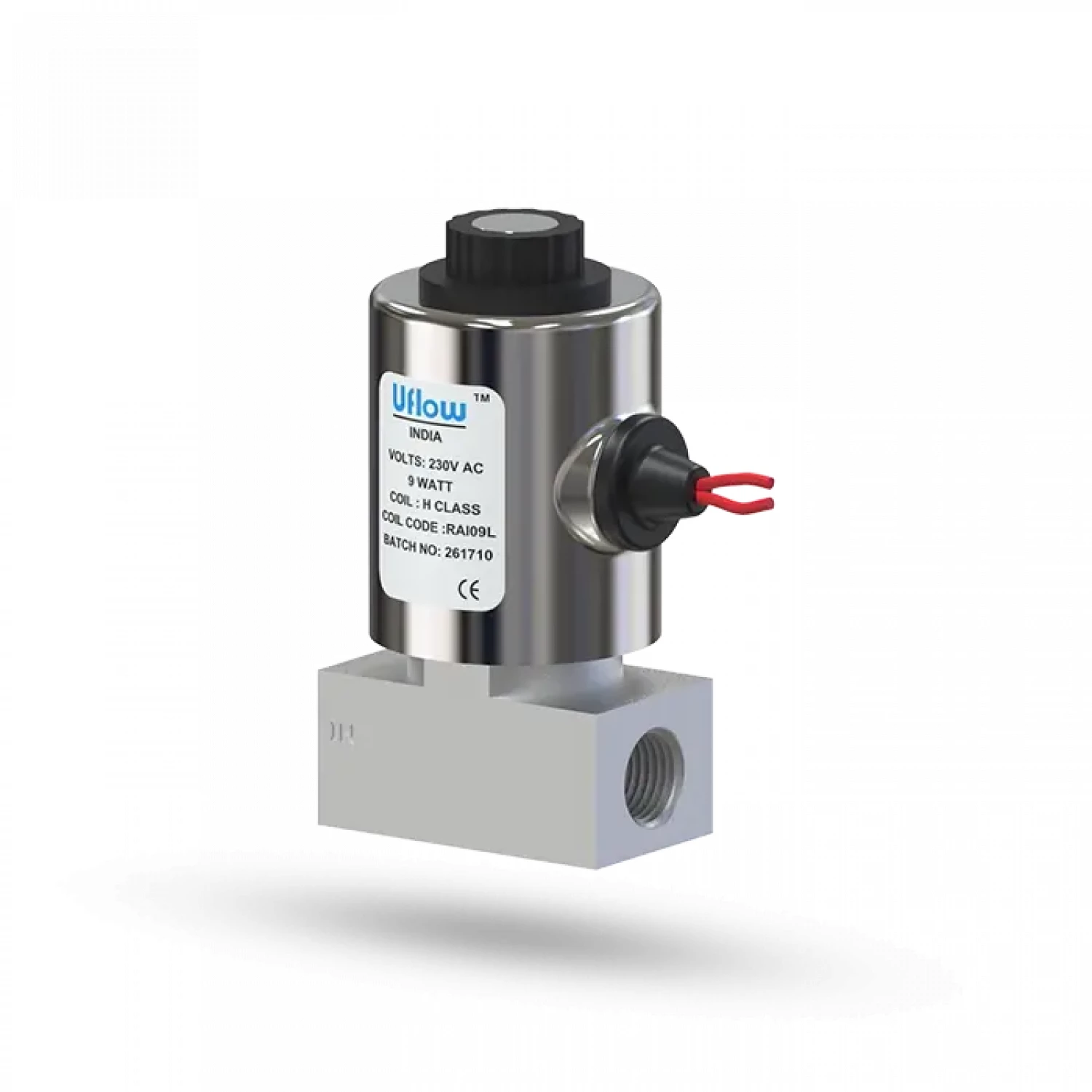

Uflow 2/2 Way Direct Acting Valve (NC / NO) - DAS Series
Call Now
WhatsApp
AvailabilityIn Stock
CategoryDirect Acting Valve
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%
Uflow 2/2 Way Direct Acting Valve (NC / NO) - DAS Series Details
Valve Information
- Port: Refer technical data sheet (Available BSP / NPT)
- End Connection: Screwed
- Body Material: SS ASTM A351 Grade 304 / 316, Brass Bar, AAluminumMedia Temp & seal o-ring:
Nitrile(NBR) EPDM Viton(FKM) Silicone -30°C to 90°C -10°C to 140°C -10°C to 180°C -10°C to 60°C - Circumstance Temp: -10° C to 70° C
- Media: Air, Chemical, Gas, Oil, Steam, Hot Water, Oil.
- Main Features: Internal Parts are in superior corrosion-resistant steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications, & Highly corrosive environments.
- Operating Voltage & Power Consumption:
24AC 110AC 230AC 12DC 24DC 9W 9W 9W 10W 11W - Optional Feature: 90% Power saver series also available & Latching as per Application.
- Other Specification Data: Available on Request, Manually Override
Coil Information
- Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as required.
- Coil Housing: IP65 Epoxy square coil, IP65 Metallic round enclosure, IP67 Flameproof enclosure, IP68 Weatherproof enclosure
- Note: Use of a filter in the inlet port is recommended.
Technical Data
| Model No. | Body Material | Port Size | Orifice (mm) | Min. Operating Pressure Kg/cm² | Max. Operating Pressure Kg/cm² | Seal & Diaphragm Material | Flow Factor Kv m³ / hr | ||
|---|---|---|---|---|---|---|---|---|---|
| NC | NO | NC | NO | ||||||
| DAS-DA204E040 | Aluminium | ½” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-DA205E030 | Aluminium | ½” | 3 | 2 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.11 |
| DAS-DA204I050 | Aluminium | ½” | 5 | 4 | 0 | 10 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-DA217I025 | Aluminium | ½” | 2.5 | NA | 0 | 60 | NBR / FKM / EPDM | 0.16 | - |
| DAS-DR017E018 | Brass | ¹⁄₈” | 1.8 | NA | 0 | 60 | NBR / FKM / EPDM | 0.10 | - |
| DAS-DR115E060 | Brass | ¼” | 6 | NA | 0 | 1 | NBR / FKM / EPDM | 0.84 | - |
| DAS-DR113E050 | Brass | ¼” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-DR104E040 | Brass | ¼” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-DR105E030 | Brass | ¼” | 3 | 2.5 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.16 |
| DAS-DR111E025 | Brass | ¼” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DR118E020 | Brass | ¼” | 2 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.05 |
| DAS-DR117E018 | Brass | ¼” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-DR120E015 | Brass | ¼” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-DR112E013 | Brass | ¼” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-DR713E050 | Brass | ³⁄₈” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-DR704E040 | Brass | ³⁄₈” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-DR705E030 | Brass | ³⁄₈” | 3 | 2 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.11 |
| DAS-DR711E025 | Brass | ³⁄₈” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DR718E020 | Brass | ³⁄₈” | 2 | 1.5 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.03 |
| DAS-DR717E018 | Brass | ³⁄₈” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-DR720E015 | Brass | ³⁄₈” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-DR712E013 | Brass | ³⁄₈” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-DR215E060 | Brass | ½” | 6 | NA | 0 | 1 | NBR / FKM / EPDM | 0.84 | -- |
| DAS-DR213E050 | Brass | ½” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-DR204E040 | Brass | ½” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-DR205E030 | Brass | ½” | 3 | 2.5 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.16 |
| DAS-DR211E025 | Brass | ½” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DR218E020 | Brass | ½” | 2 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.05 |
| DAS-DR217E018 | Brass | ½” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-DR220E015 | Brass | ½” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-DR212E013 | Brass | ½” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-D115E060 | SS304 | ¼” | 6 | 6 | 0 | 1 | NBR / FKM / EPDM | 0.84 | 0.84 |
| DAS-D113E050 | SS304 | ¼” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-D104E040 | SS304 | ¼” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-D105E030 | SS304 | ¼” | 3 | 2 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.11 |
| DAS-D111E025 | SS304 | ¼” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-D118E020 | SS304 | ¼” | 2 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.05 |
| DAS-D117E018 | SS304 | ¼” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-D120E015 | SS304 | ¼” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-D112E013 | SS304 | ¼” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-D713E050 | SS304 | ³⁄₈” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-D704E040 | SS304 | ³⁄₈” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-D705E030 | SS304 | ³⁄₈” | 3 | 2 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.11 |
| DAS-D711E025 | SS304 | ³⁄₈” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DA113F050 | Aluminium | ¼” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-DA104E030 | Aluminium | ¼” | 3 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.20 | 0.16 |
| DAS-DA105E022 | Aluminium | ¼” | 2.2 | 1.8 | 0 | 16 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DA111E022 | Aluminium | ¼” | 2.2 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-DA118E018 | Aluminium | ¼” | 1.8 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-DA117E015 | Aluminium | ¼” | 1.5 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.07 | 0.05 |
| DAS-DA204I050 | Aluminium | ½” | 5 | NA | 0 | 10 | NBR / FKM / EPDM | 0.73 | - |
| DAS-D718E020 | SS304 | ³⁄₈” | 2 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.05 |
| DAS-D717E018 | SS304 | ³⁄₈” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-D720E015 | SS304 | ³⁄₈” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-D712E013 | SS304 | ³⁄₈” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-DS226E170 | SS304 | ½” | 17 | NA | 0 | 0.200 | Ntd/ SI / FKM / EPDM | 3.20 | -- |
| DAS-D213E050 | SS304 | ½” | 5 | 4 | 0 | 4 | NBR / FKM / EPDM | 0.73 | 0.54 |
| DAS-D204E040 | SS304 | ½” | 4 | 2.5 | 0 | 10 | NBR / FKM / EPDM | 0.54 | 0.16 |
| DAS-D205E030 | SS304 | ½” | 3 | 2.5 | 0 | 16 | NBR / FKM / EPDM | 0.20 | 0.16 |
| DAS-D211E025 | SS304 | ½” | 2.5 | 1.8 | 0 | 25 | NBR / FKM / EPDM | 0.16 | 0.10 |
| DAS-D218E020 | SS304 | ½” | 2 | 1.3 | 0 | 40 | NBR / FKM / EPDM | 0.11 | 0.05 |
| DAS-D217E018 | SS304 | ½” | 1.8 | 1.3 | 0 | 60 | NBR / FKM / EPDM | 0.10 | 0.05 |
| DAS-D220E015 | SS304 | ½” | 1.5 | 0.9 | 0 | 100 | NBR / FKM / EPDM | 0.07 | 0.03 |
| DAS-D212E013 | SS304 | ½” | 1.3 | NA | 0 | 150 | NBR / FKM / EPDM | 0.05 | -- |
| DAS-DS202I120 | SS304 | ½” | 12 | NA | 0 | 2 | NBR / td/ FKM / EPDM | 2.10-- | |
| DAS-D202I120 | SS304 | ½” | 12 | NA | 0 | 2 | NBR / FKM / EPDM | 2.10 | -- |
| DAS-D201I120 | SS304 | ½” | 12 | 12 | 0 | 0.500 | NBR / FKM / EPDM | 2.10 | 2.10 |
| DAS-DA004C020 | Aluminum | ¹⁄₈” | 2 | NA | 0 | 10 | NBR / FKM / EPDM | 0.11 | -- |
| DAS-DA102C025 | Aluminum | ¼” | 2.5 | NA | 0 | 2 | NBR / FKM / EPDM | 0.16 | -- |
| DAS-DA104C020 | Aluminum | ¼” | 2 | NA | 0 | 10 | NBR / FKM / EPDM | 0.11 | -- |
| DAS-DR014C030 | Brass | ¹⁄₈” | 3 | NA | 0 | 3 | NBR / FKM / EPDM | 0.20 | -- |
| DAS-DR004C020 | Brass | ¹⁄₈” | 2 | NA | 0 | 10 | NBR / FKM / EPDM | 0.11 | -- |
| DAS-DR104C020 | Brass | ¼” | 2 | NA | 0 | 10 | NBR / FKM / EPDM | 0.11 | -- |
| DAS-D102C020 | SS304 | ¼” | 2 | NA | 0 | 2 | NBR / FKM / EPDM | 0.11 | -- |
| DAS-D103C025 | SS304 | ¼” | 2.5 | NA | 0 | 7 | NBR / FKM / EPDM | 0.16 | -- |
| DAS-D104C020 | SS304 | ¼” | 2 | NA | 0 | 10 | NBR / FKM / EPDM | 0.11 | -- |
Our Products
Latest Updates
Related Products
Uflow 3/2 Way Direct Acting Valve (NC / NO) - DAS Series
Valve InformationPort: Refer to the technical data sheet (Available BSP / NPT)End Connection: ScrewedBody ... Continue
Request a Call Back!
