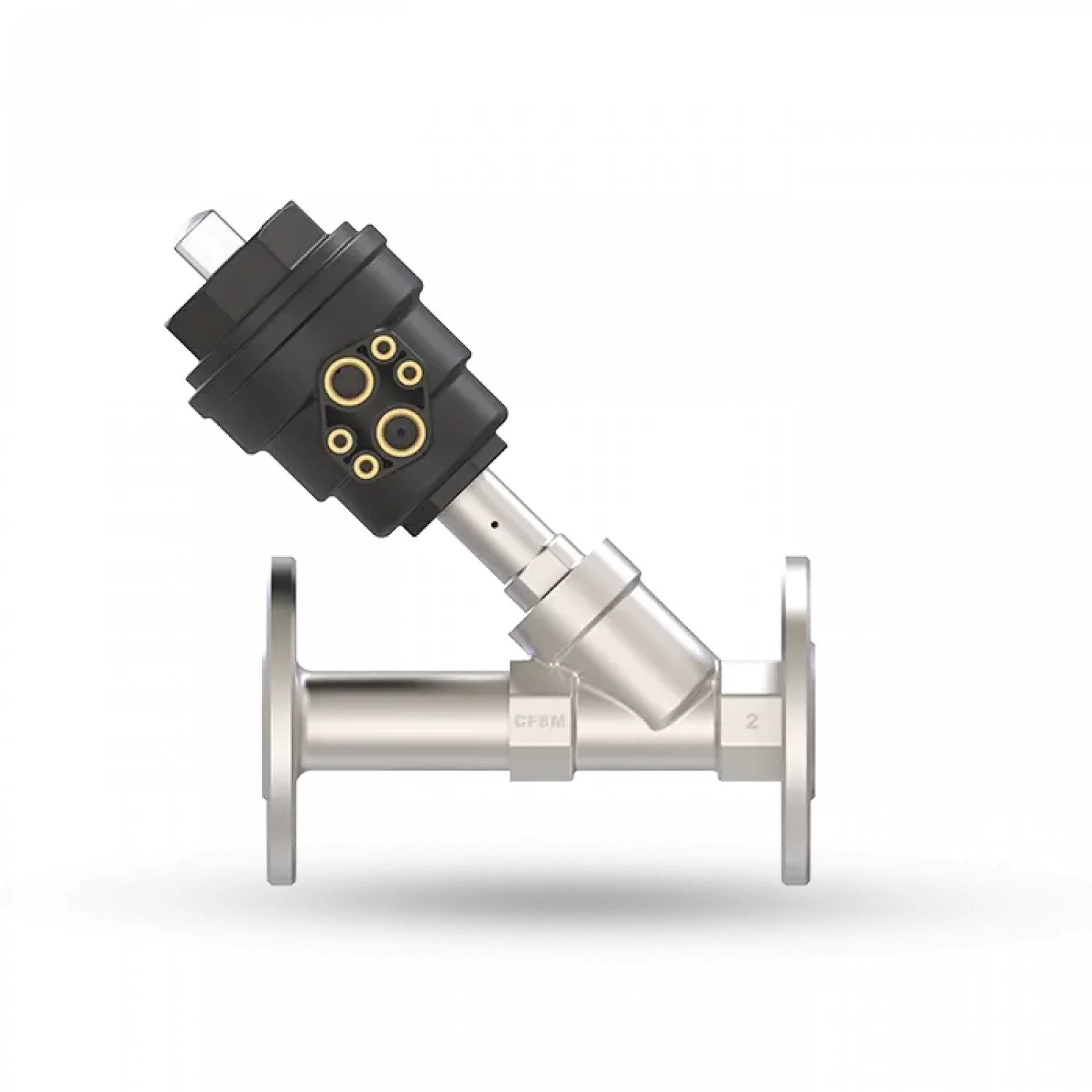

Port: | ½” , ¾”, 1”, 1¼”, 1½” , 2” & 2-1/2" (Available BSP / NPT) |
End Connection: | Screwed / Flange / Tri-Clamp / Socket Weld |
Body Material: | SS ASTM A351 Grade CF8 / CF8M / CF3M |
Seal: | PTFE / PEEK / VITON |
Circumstance Temp: | -10°C to 70°C |
Media Temp: | -10°C to 180°C |
Shaft: | SS304 / SS316 |
Cover: | Nylon Glass-Filled (Corrosion resistive) with SS Liner |
Plate: | NBR / VITON |
Working Pressure: | Refer Below Pressure Chart Table |
Life: | Three Million Cycle Tested |
Other Technical Data: | Available on Request - Adjust Stroke Limiter - Position Sensor |
| Position | A | B |
|---|---|---|
| Normally Open | Pilot Inlet | Exhaust |
| Normally Close | Exhaust | Pilot Inlet |
| Pipe (Inch) | Body Material | Orifice (mm) | Seal & ‘O’ Ring Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|
| ½” | CF8 / CF8M | 15 | PTFE / PEEK / VITON | 6 |
| ¾” | CF8 / CF8M | 20 | PTFE / PEEK / VITON | 10.9 |
| 1” | CF8 / CF8M | 25 | PTFE / PEEK / VITON | 21 |
| 1¼” | CF8 / CF8M | 32 | PTFE / PEEK / VITON | 35 |
| 1½” | CF8 / CF8M | 40 | PTFE / PEEK / VITON | 49 |
| 2” | CF8 / CF8M | 50 | PTFE / PEEK / VITON | 68 |
| 2½” | CF8 / CF8M | 65 | PTFE / PEEK / VITON | 120 |
