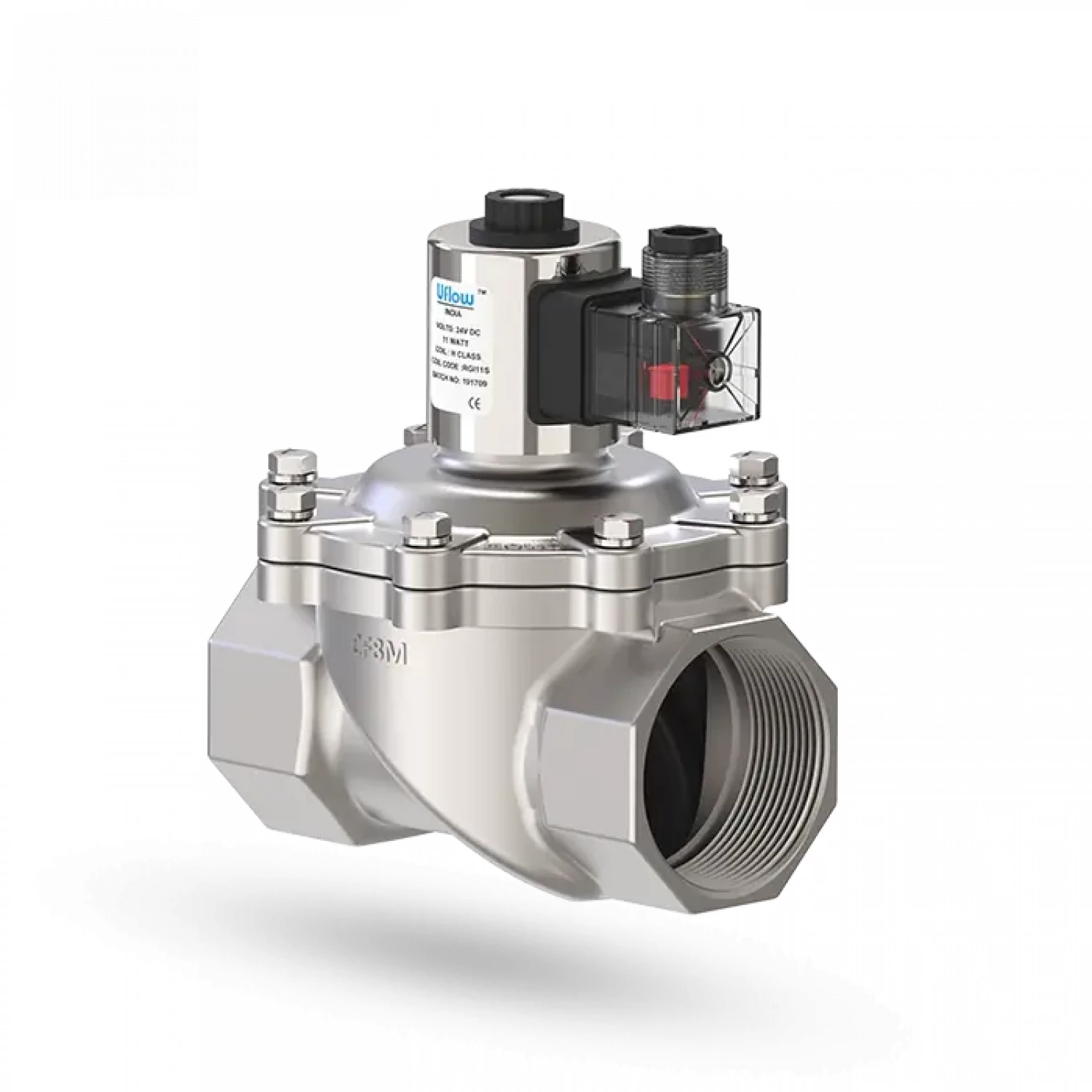

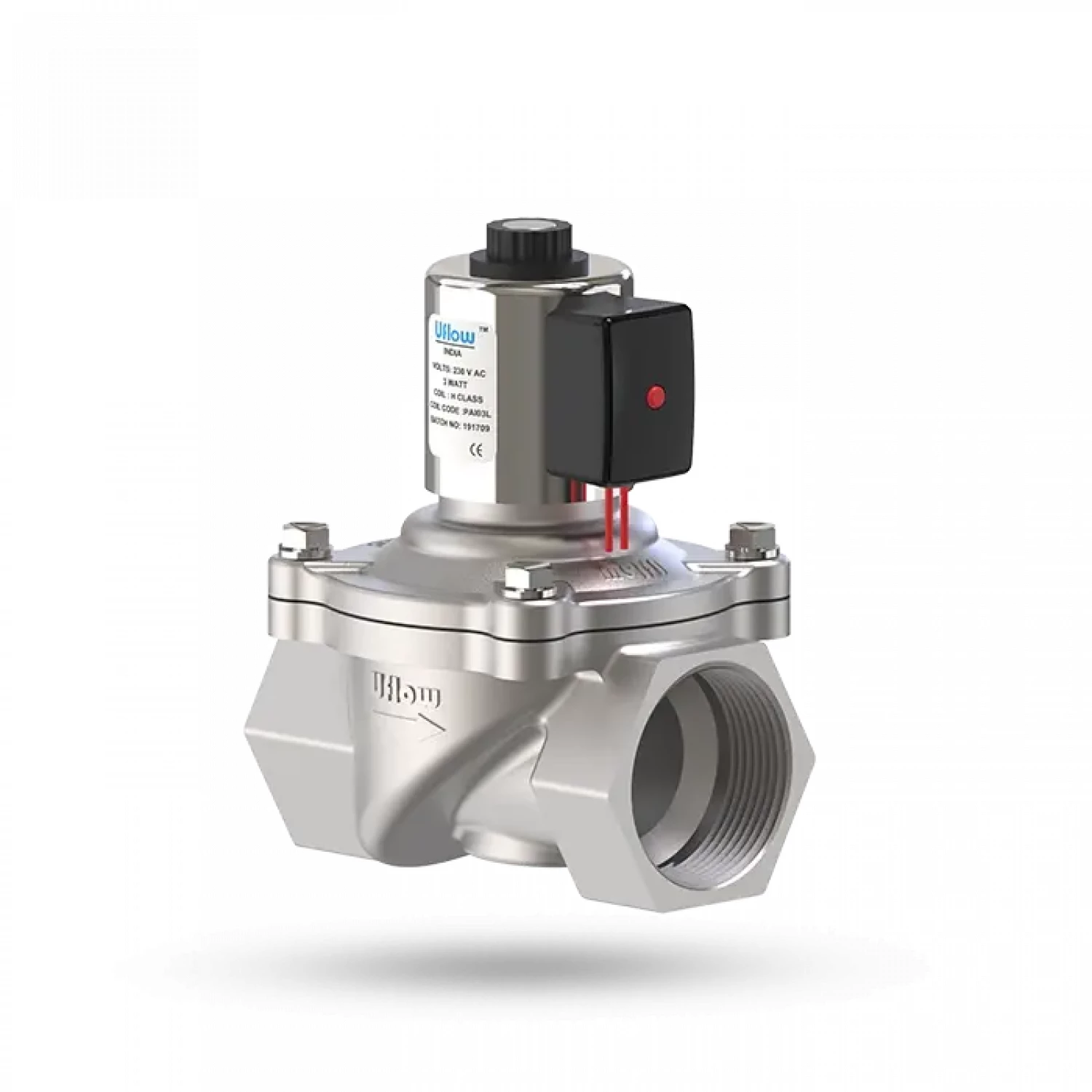

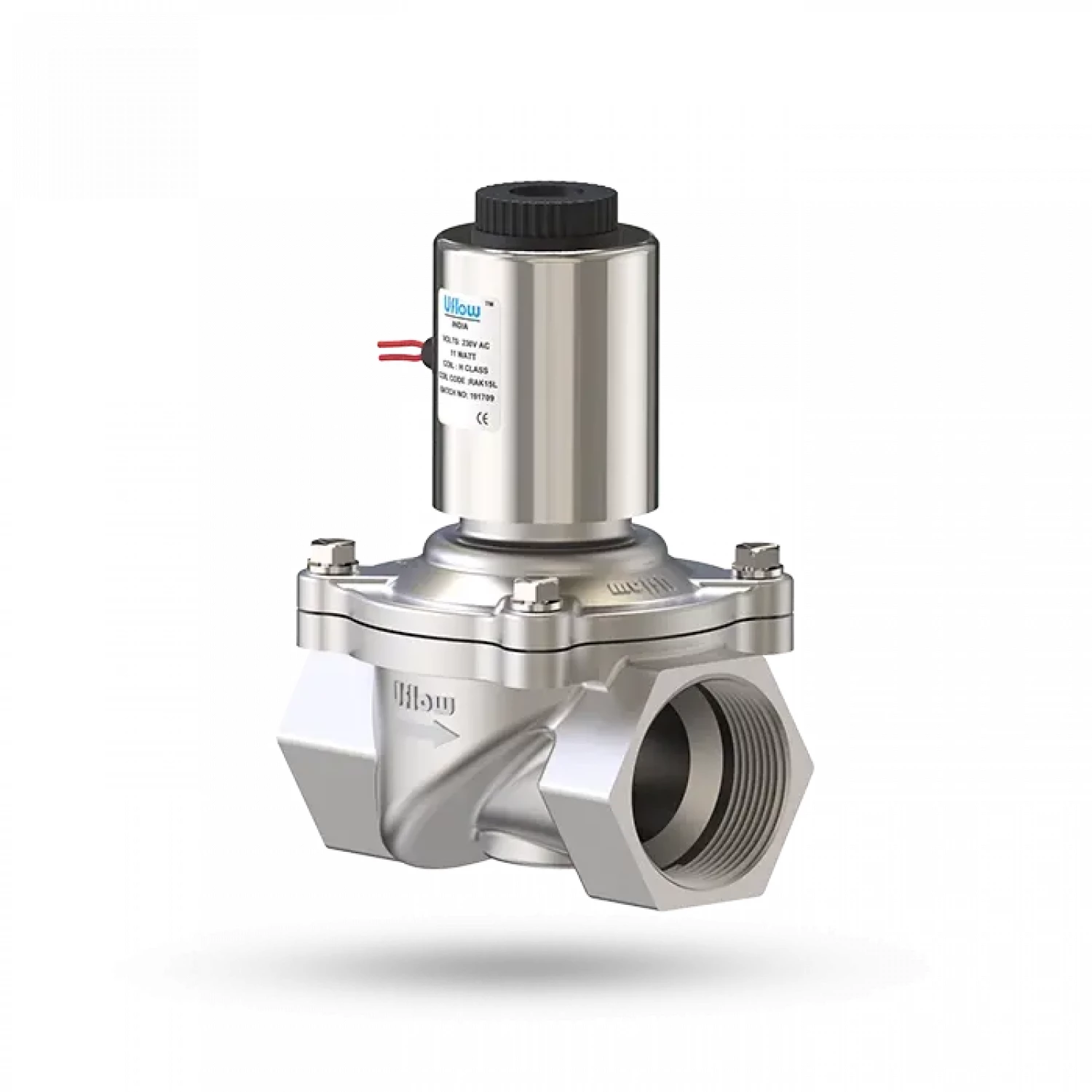

Uflow Semi Lift Diaphragm Operated Solenoid Valve (NC / NO) - MCN Series

Valve Information

• Port: Refer to the technical data sheet (Available BSP / NPT)

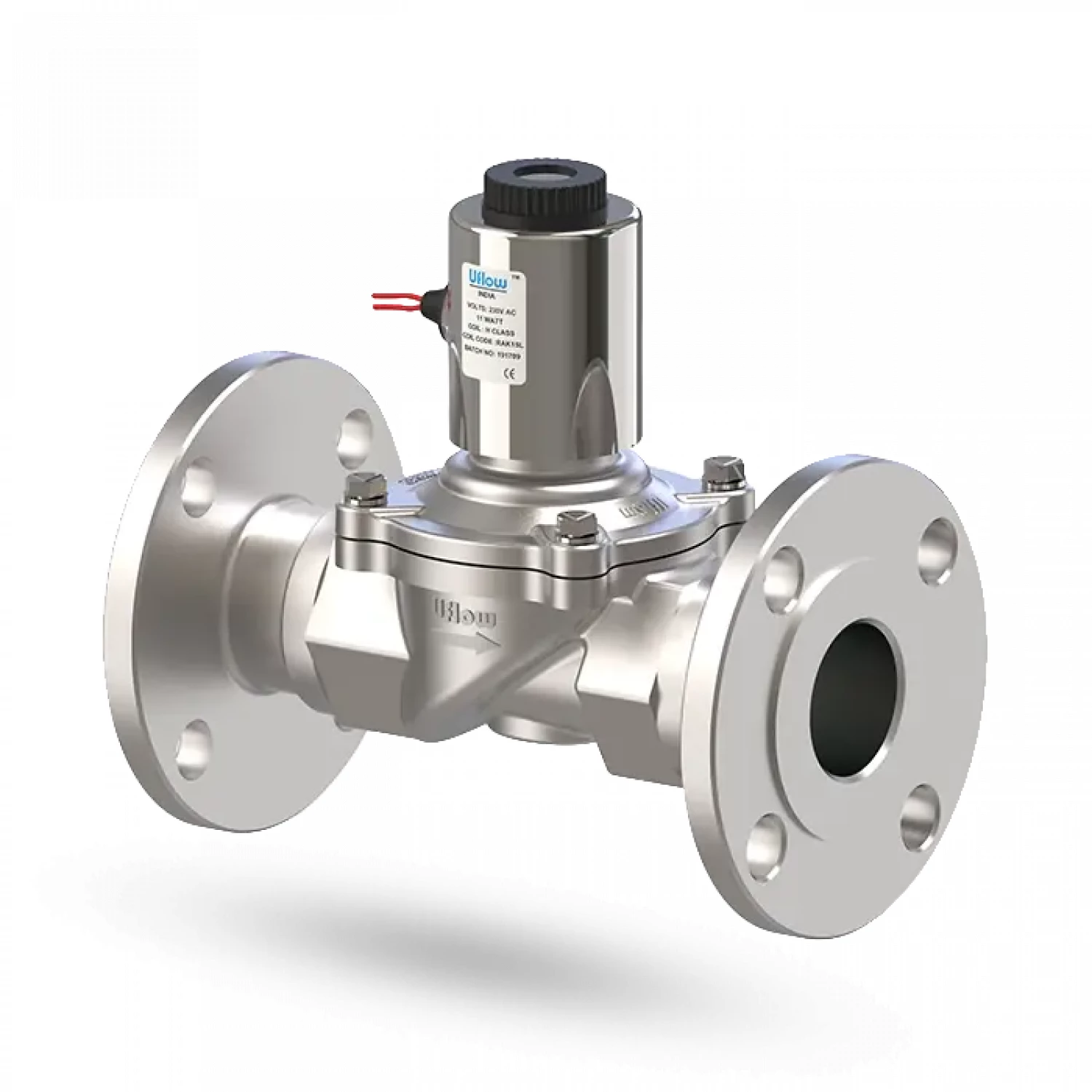

• End Connection: Screwed / Flange

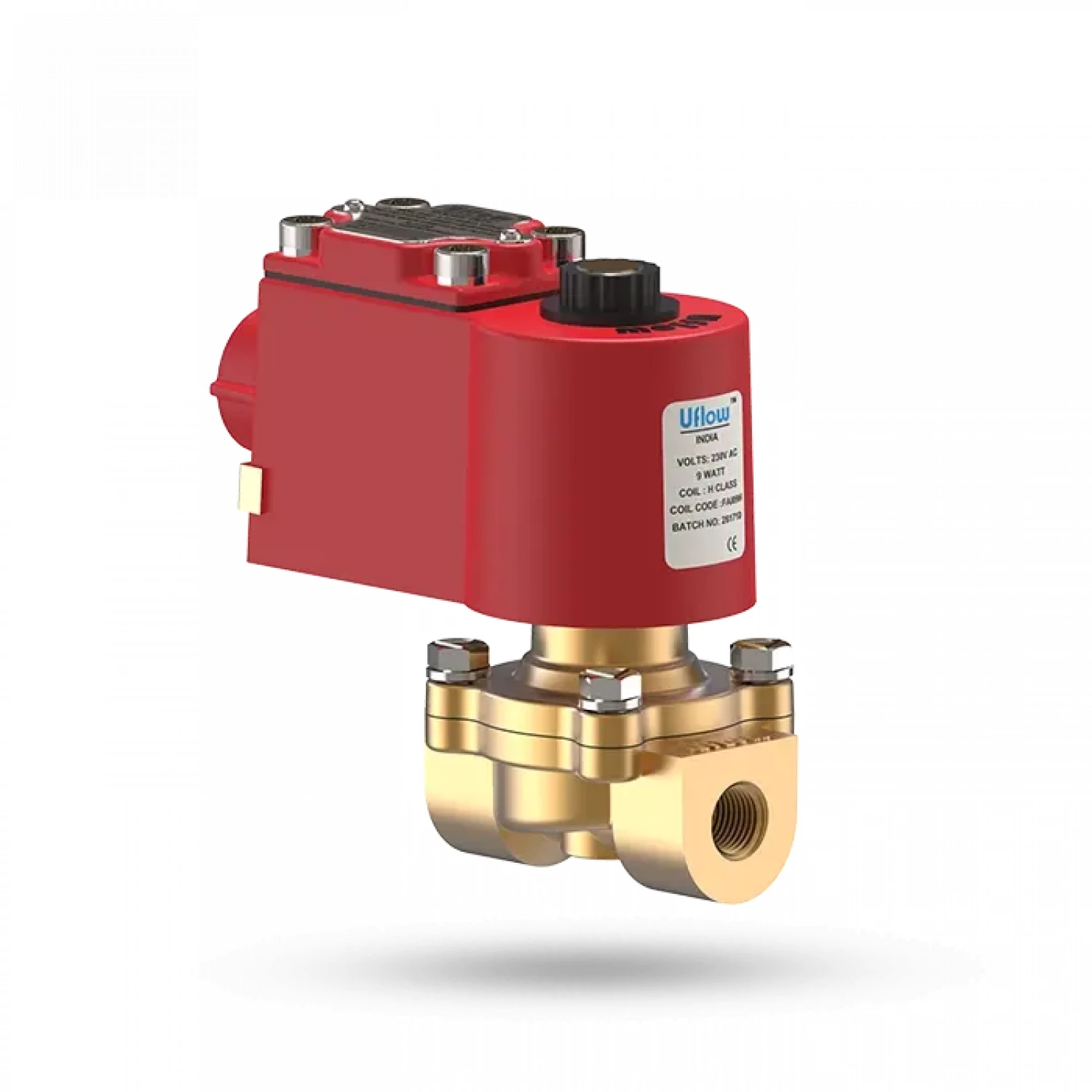

• Body Material: SS ASTM A351 Grade CF8 / CF8M, Forged Brass
• Diaphragm:

  Nitrile (NBR)	EPDM	Viton (FKM)	PTFE
  -30° C to 90° C	-10° C to 140° C	-10° C to 180° C	-10° C to 180° C

• Circumstance Temp: -10° C to 70° C
• Media: Air, Water, Chemical, Gas, Oil, Steam, LPG.
• Main Features: Internal Parts are in superior corrosion-resistant steel (Equivalent to SS316L). Suitable for Food Industries, Pharmaceuticals, Chemical applications & highly corrosive environments.
• Operating Voltage & Power Consumption:

  24AC	110AC	230AC	12DC	24DC
  9W	9W	9W	10W	11W

• Optional Feature: 90% Power saver series also available, Water hammering reducer also available to avoid water hammer forces. Special high flow rate series available on request at low pressure or gravity pressure application.
• Other Specification Data: Available on Request.

Coil Information

• Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as required.
• Coil Housing: Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
• Note: Use an f filter in the inlet port is recommended. Preferably over a Horizontal Pipeline with the coil upright.
• Caution: AC coil should not be used on a DC coil valve and vice versa. For the DC coil, the maximum operating pressure may be reduced by 1 Kg/cm²
