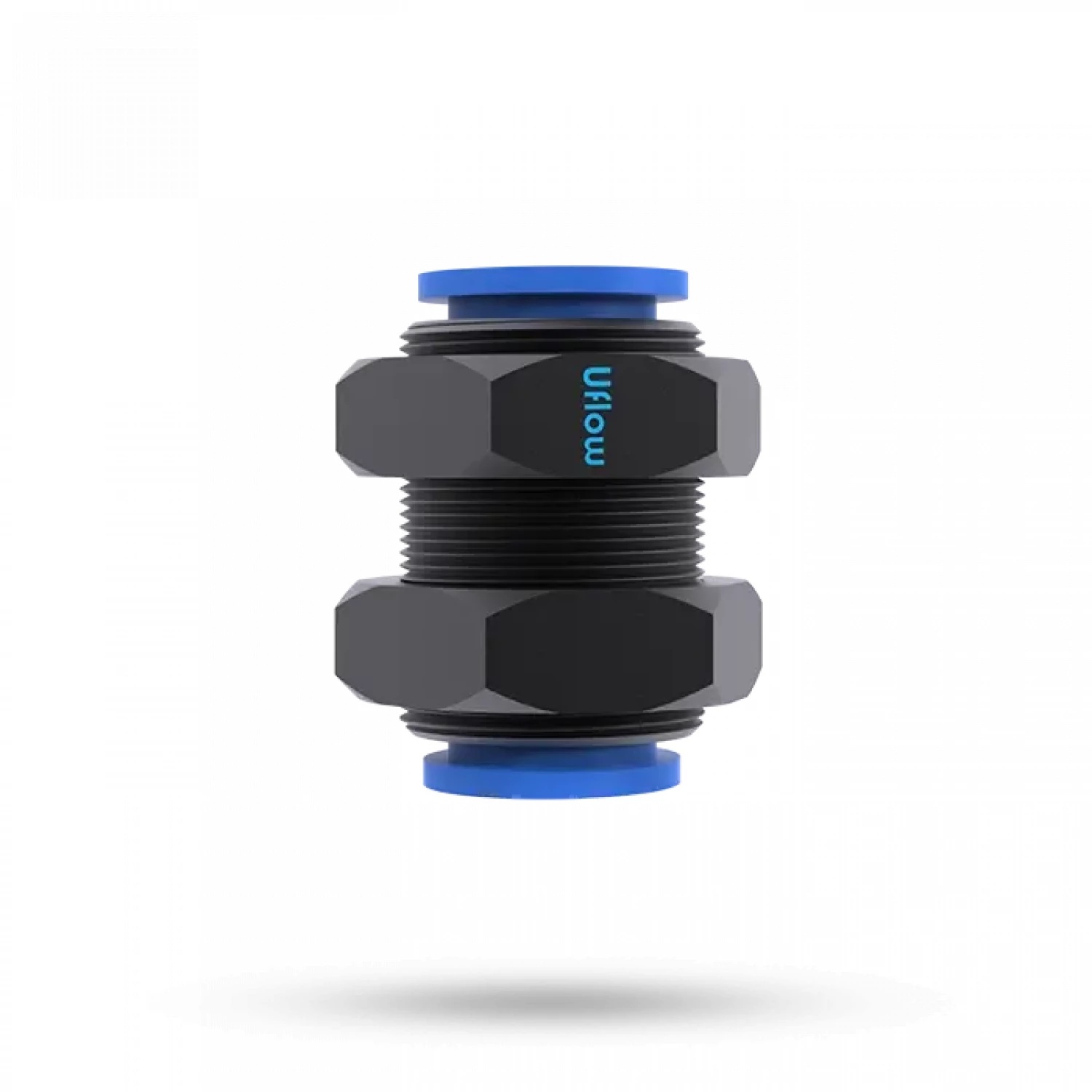

Fluid: | Air |
Max. operating pressure: | 10 Bar |
Ambient temperature: | -10°C to +60°C |
Threaded connection: | Male : R - Taper thread, Female : G - Parallel thread |
Media temperature: | +5°C to +50°C |
Applicable tube material: | Nylon, Polyurethane |
Applicable tube size (OD): | Ø4, Ø6, Ø8, Ø10, Ø12, Ø14, Ø16 |
Recommended tolerance for tube OD: | ±0.1 mm |
| Model No. | Tube OD | HEX | L | A | Mounting Plate Thickness Max. | Mounting Hole Dia. |
|---|---|---|---|---|---|---|
| VO-2904 | 4 | 14 | 32 | 15 | 16 | 13 |
| VO-2906 | 6 | 17 | 33 | 16 | 14 | 15 |
| VO-2908 | 8 | 19 | 34 | 16 | 12 | 17 |
| VO-2910 | 10 | 24 | 38 | 18 | 12 | 21 |
| VO-2912 | 12 | 27 | 39 | 19 | 12 | 23 |
| VO-291 | 14 | 30 | 40 | 19 | 10 | 25 |
| VO-2916 | 16 | 32 | 49 | 24 | 12 | 28 |
