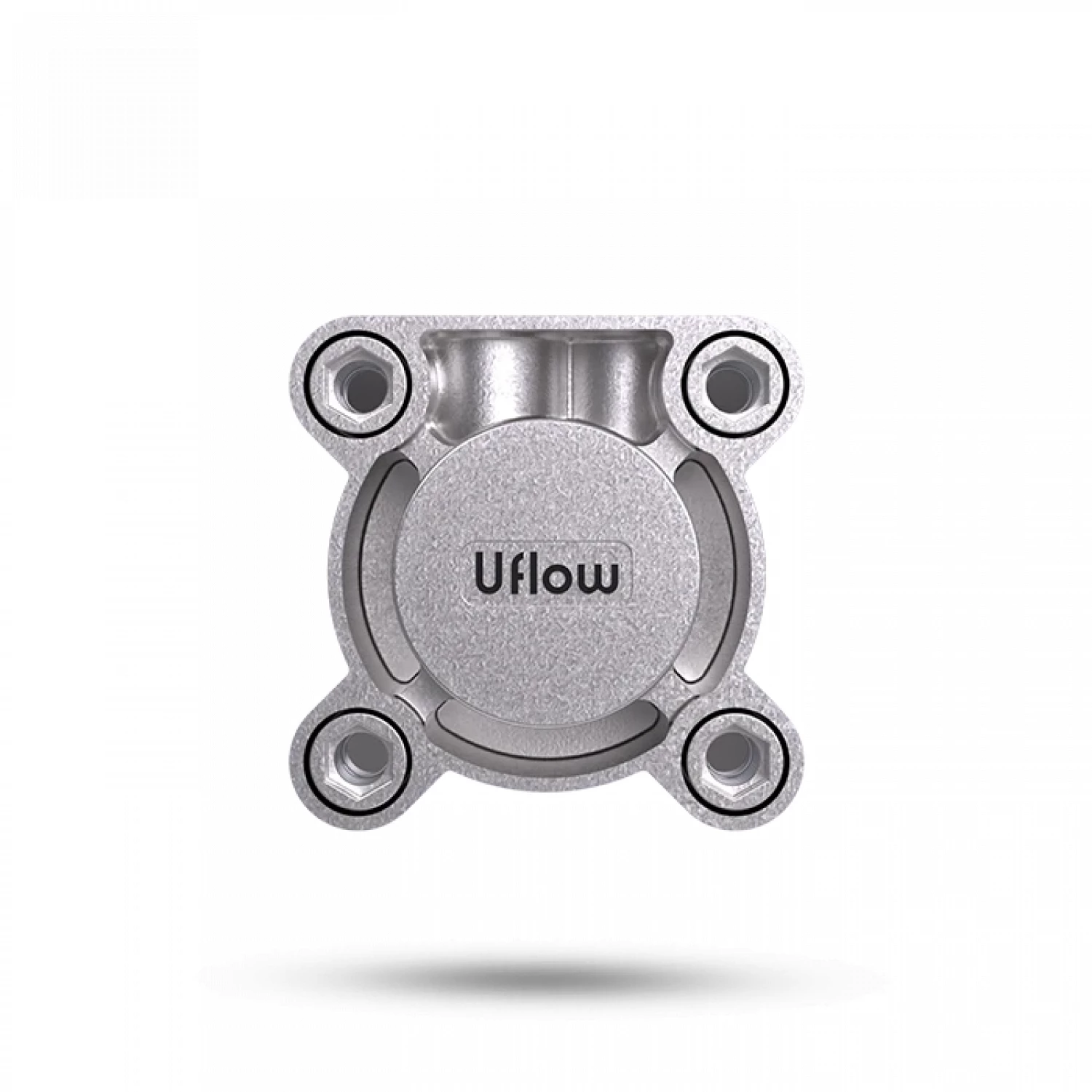

Uflow PU Tie Rod Pneumatic Cylinder ISO 15552 - PS4 Series

AvailabilityIn Stock
CategoryTie Rod Cylinder
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow PU Tie Rod Pneumatic Cylinder ISO 15552 - PS4 Series Details

Valve Information

  • Technical Data:
    Cylinder bore Ø (mm)3240506380100125
    Cushion stroke (mm)21232323282840
    Standard strokes (mm)25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500
  • Media: Compressed air - filtered - lubricated
  • Working pressure: 0.5 - 10 bar
  • Medium temperature:
    Regular
    -30°C to +90°C
  • Materials of Construction: Aluminium, Brass, Steel, Acetal, Polyurethane (Regular), Nitrile
  • Mountings: Foot Mounting, Front / Rear Flange, Male Clevis, Female Clevis,Center Trunnion, Front Trunnion , Rear Trunnion
  • b: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye
  • Ambient Temperature: -10°C to +70°C
