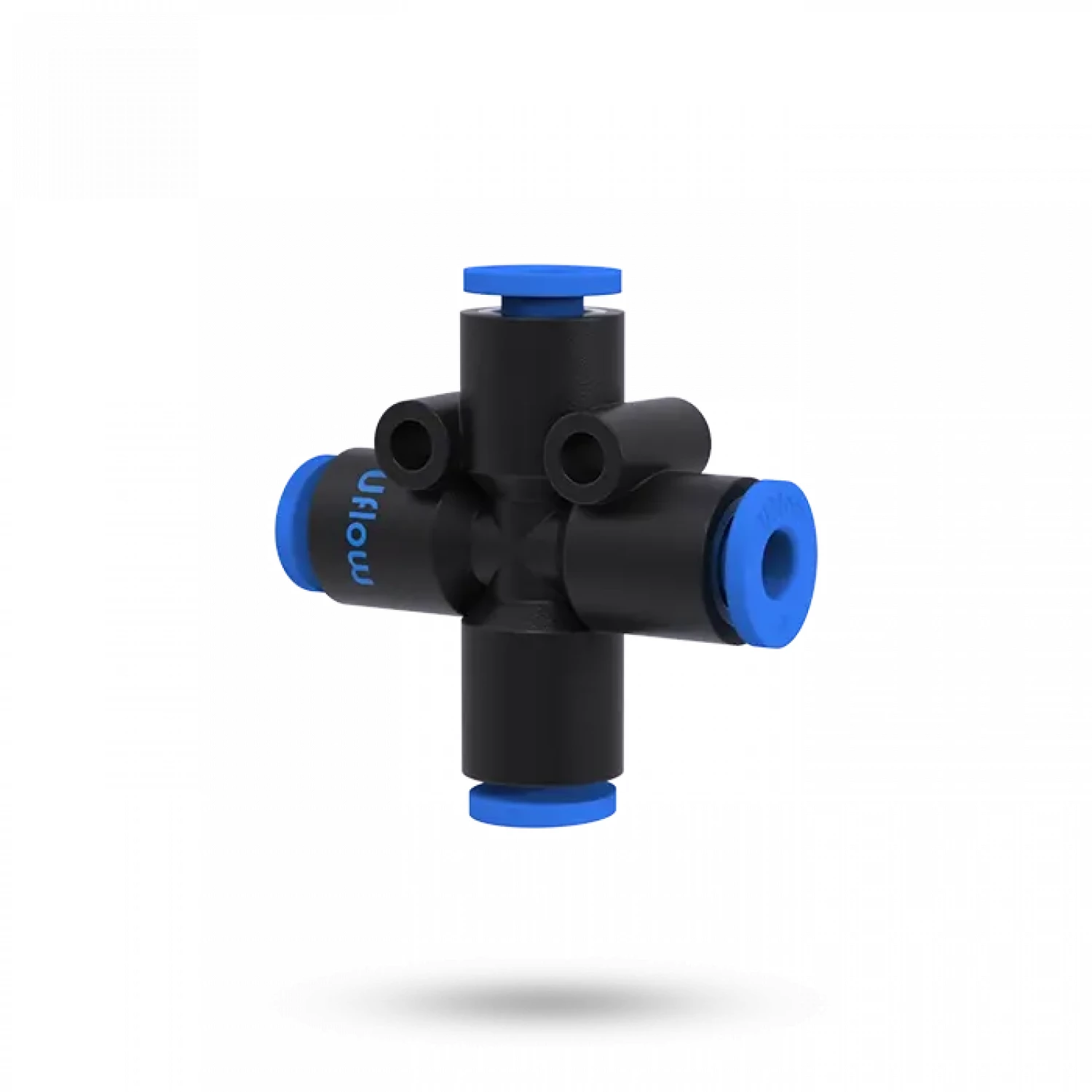

Fluid: | Air |
Max. operating pressure: | 10 Bar |
Ambient temperature: | -10°C to +60°C |
Threaded connection: | Male : R - Taper thread, Female : G - Parallel thread |
Media temperature: | +5°C to 50° C |
Applicable tube material: | Nylon, Polyurethane |
Applicable tube size (OD): | Ø4, Ø6, Ø8, Ø10, Ø12, Ø14, Ø16 |
Recommended tolerance for tube OD: | ±0.1 mm |
| Model No. | Tube OD | ØD | L1 | L2 | C | A | ØDXH |
|---|---|---|---|---|---|---|---|
| VO-490404 | 4 | 10.6 | 17.7 | 6.5 | 13 | 14.9 | Ø3.3X11 |
| VO-490606 | 6 | 12.6 | 20 | 7.5 | 15 | 16 | Ø3.3X13 |
| VO-490808 | 8 | 15 | 25 | 9 | 18 | 17.2 | Ø3.3X15.5 |
| VO-491010 | 10 | 18.5 | 26.4 | 11 | 22 | 19.2 | Ø4.3X19 |
| VO-491212 | 12 | 21.1 | 28.8 | 12 | 24 | 20.7 | Ø4.3X21.5 |
