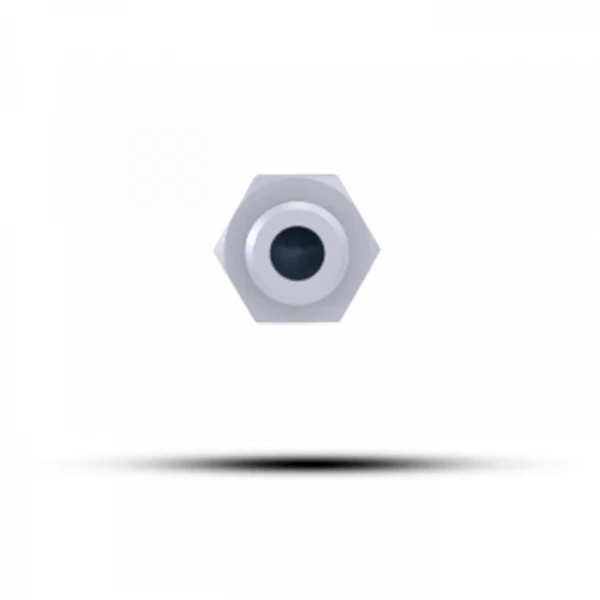

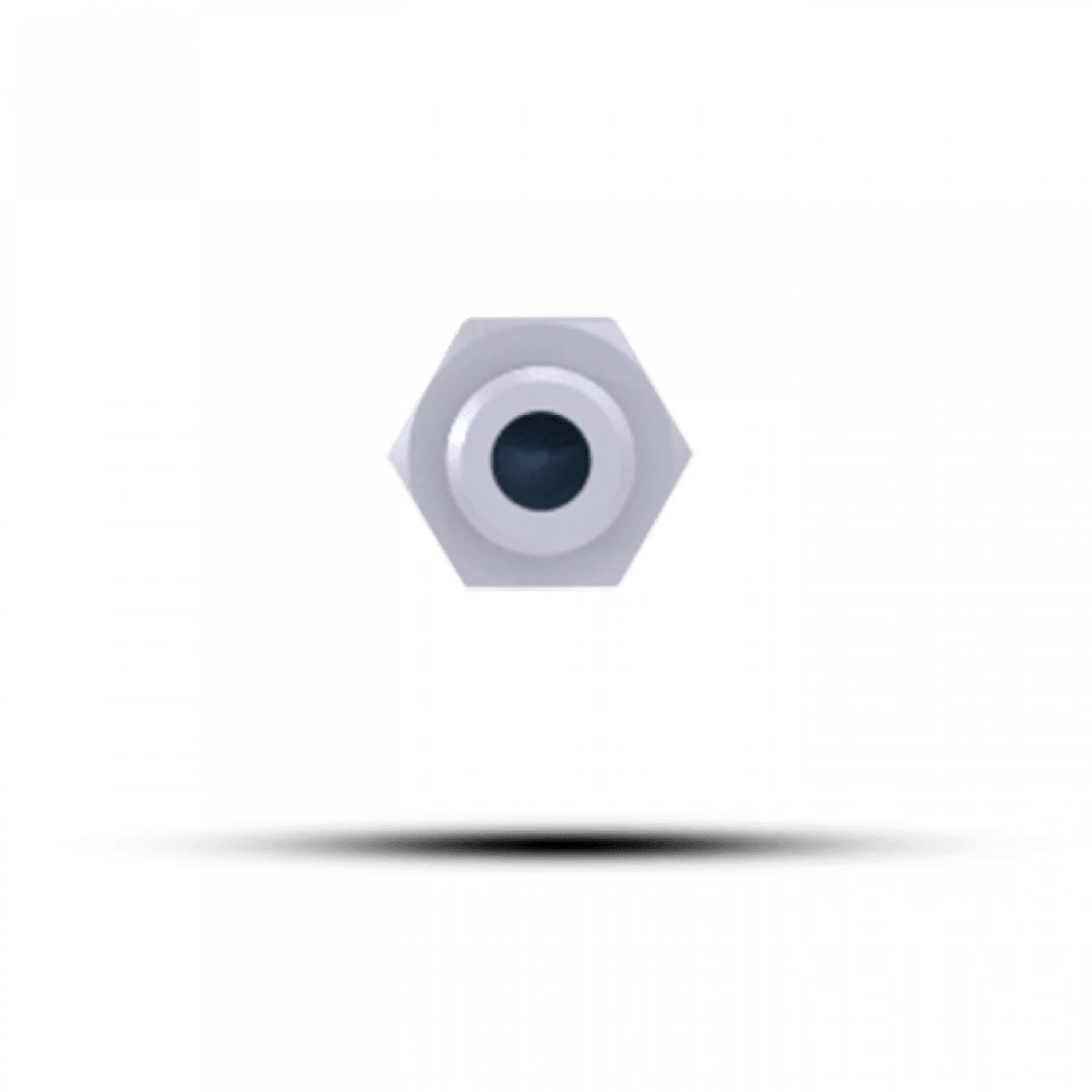

Uflow Pneumatic Check Valves

Model No:

HV-3

Body Material:

Anodised aluminium alloy

Seal Material:

Nitrile, FKM

Ambient Temp:

10°C to 60°C

Operating Pressure:

0.5 to 10 Bar

Flow Factor CV:

475 lpm

Media:

10°C to 60°C

Pneumatic Connection, Port 1:

G¹⁄₈”

Pneumatic Connection, Port 2:

G¹⁄₈”

Flow Factor:

475 LPM

Valve function:

NON RETURN FUNCTION

Operation:

Pneumatic Check valve (Non-Return Valves) allow compressed air to flow in one direction and prevent or block it from flowing in the opposite direction.

Note:

Lubricated operation possible (in which case lubricated operation will always be required)
