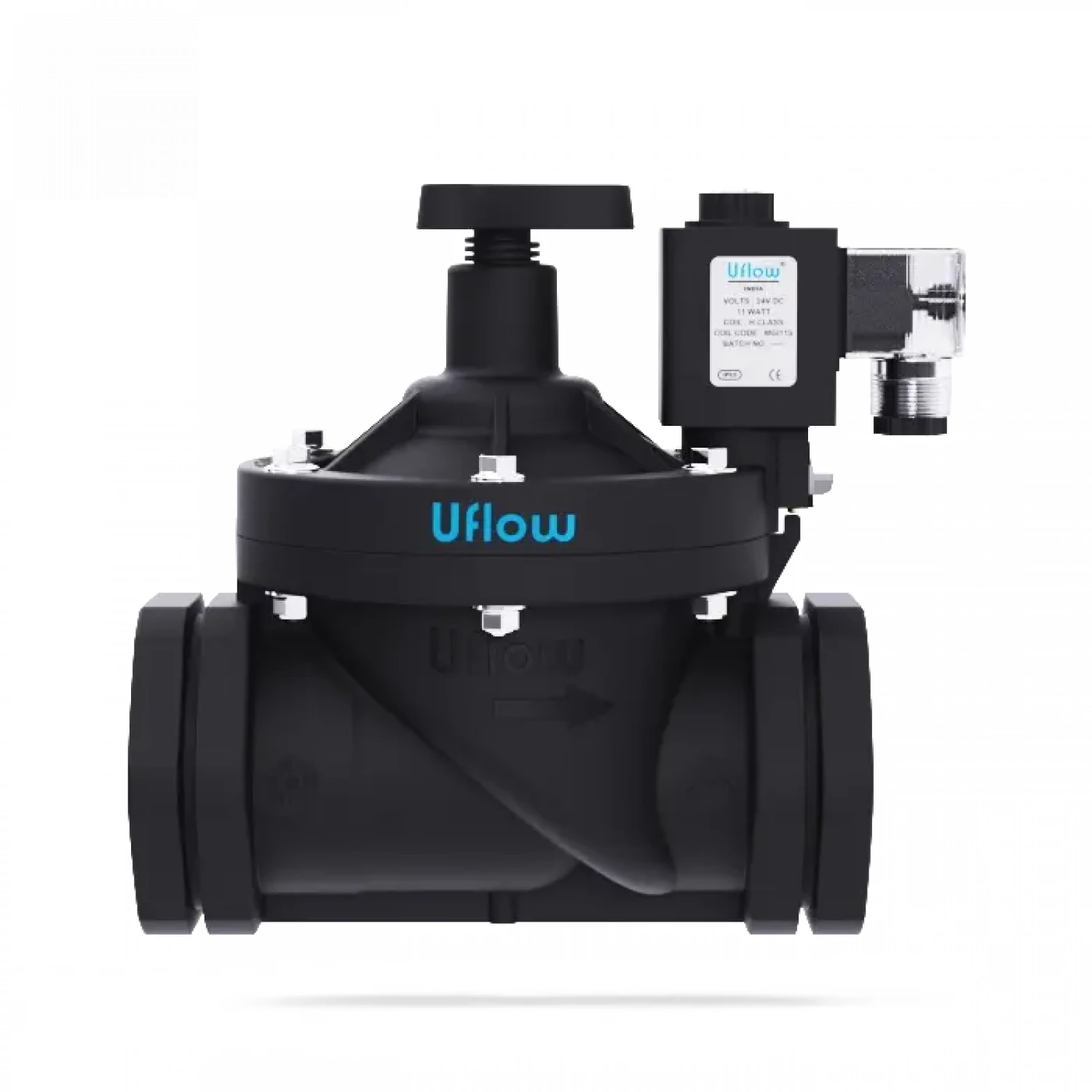

Uflow Pilot Operated Diaphragm Type Plastic Solenoid Valve With Flow Controller (NC) - PNN Series

AvailabilityIn Stock
CategoryIrrigation Ball Valve
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pilot Operated Diaphragm Type Plastic Solenoid Valve With Flow Controller (NC) - PNN Series Details

Specifications

Port:

Refer below technical data sheet ( BSP/NPT)

End Connection:

Screwed

Body Material:

Nylon GF

Diaphragm:

Natural Rubber

Max Media Temp:

5°C to 50°C

Circumstance Temp:

-10°C to 50°C

Media:

Water

Coil Housing:

IP65 Epoxy square coil, IP65 Metallic round enclosure, IP68 Weatherproof enclosure

Note:

Use of filter in the inlet port is recommended.

operating voltage:

24AC

24DC

12DC

power consumption:

8W

8W

8W

coil features:

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Other Specification Data:

Available on Request

Technical Data

Model No.Body MaterialPipe (Inch)Orific (mm)Min. Operating Pressure mbarMax. Operating Pressure barSeal & Diaphragm MaterialFlow Factor Kv m³ / hr
PNN-3TFNylon GF¾”200.510Natural Rubber8
PNN-4TFNylon GF1”250.510Natural Rubber12
PNN-6TFNylon GF1½”400.510Natural Rubber23
PNN-8TFNylon GF2”520.510Natural Rubber38
