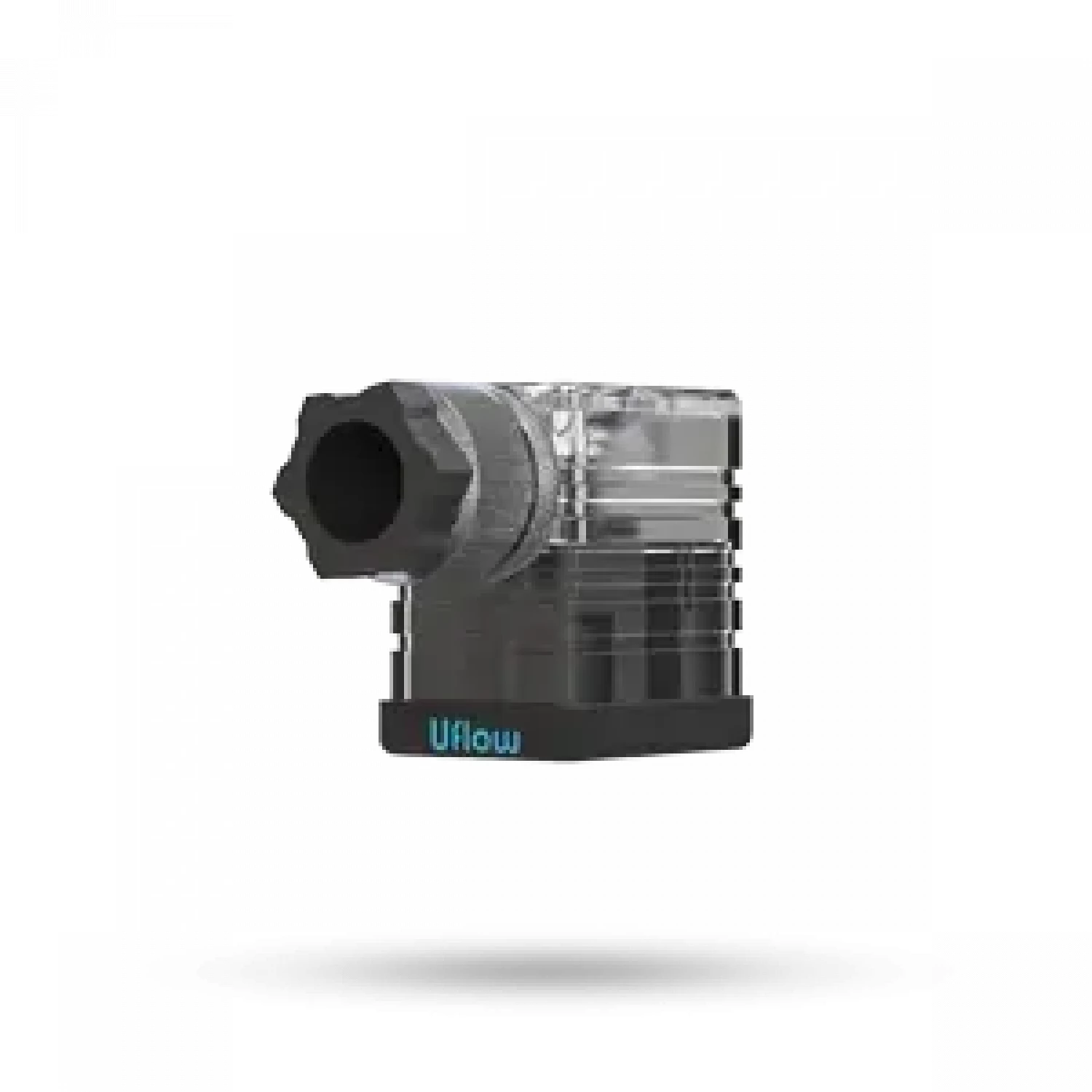

Uflow Solenoid Din Connector

AvailabilityIn Stock
CategorySolenoid Coil
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Solenoid Din Connector Details

Specifications

Connector Type:

Solenoid Connector

V/A Rating:

10A 250V AC

Contact Resistance (Initial):

20 M Ohms Max.

Insulation Resistance At 500V DC:

100 M Ohms Min.

H.V. Breakdown Test (For 1 Minute):

2 KV AC

Connector Mounting:

Screw Mounting

Terminals:

Solder Type

Permissible Temp. With / Without Load:

0°C to 90°C

Body Material:

Poly Carbonate, Nylon GF (Black)

Rubber Gasket:

NBR

Terminals / Contacts:

Brass, Tin Plated

Reference Standard:

DIN - 43650, ISO 4400, EN - 175,301 - 803
