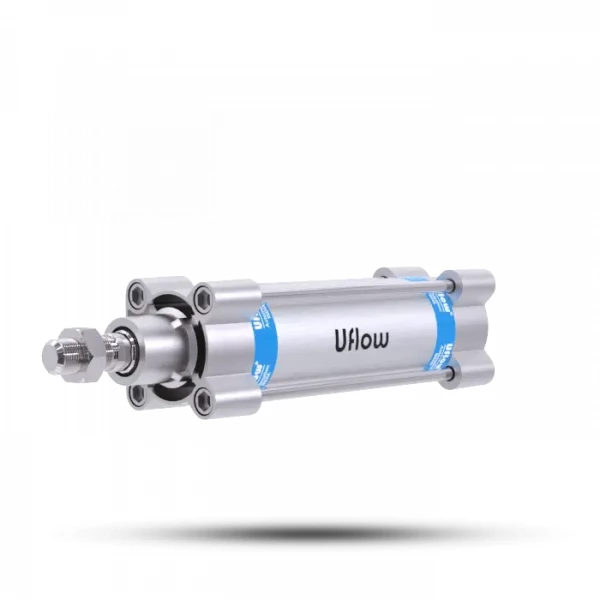

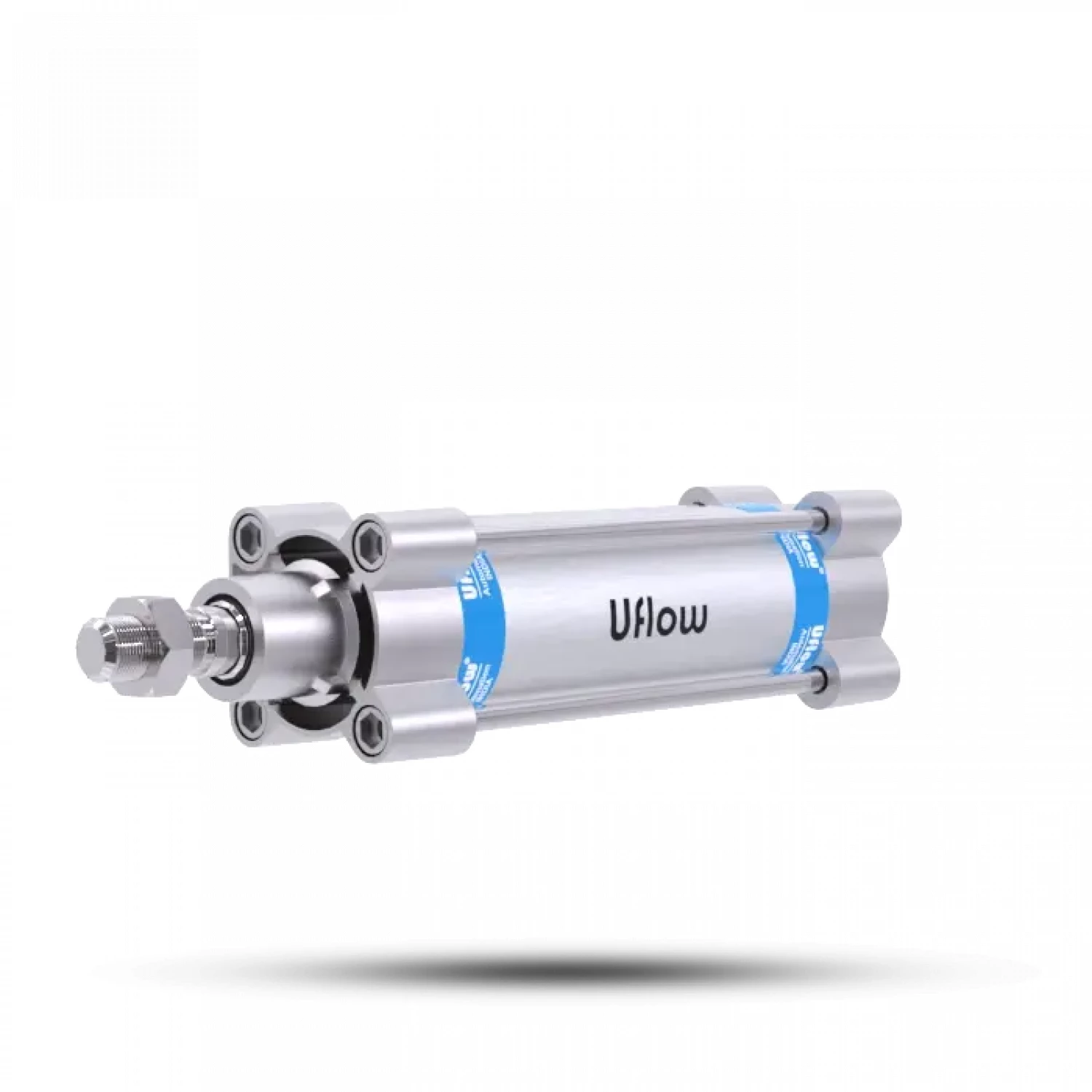

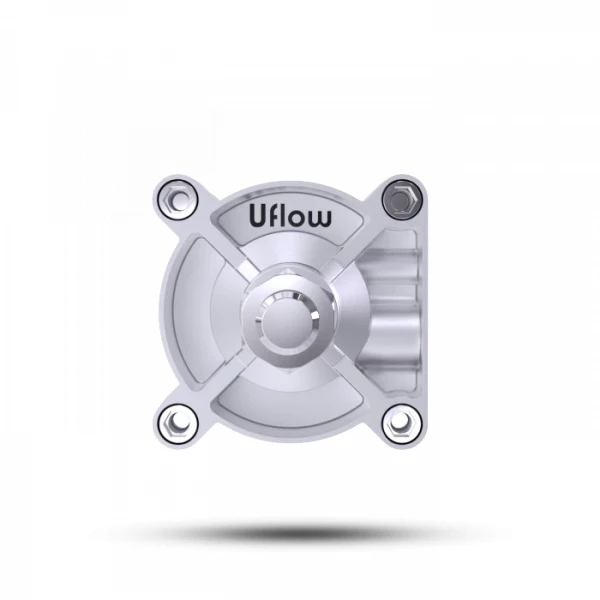

Uflow Pneumatic Tie Rod Cylinder (As Per ISO 15552 / VDMA 24562 Standards) - CS4 Series

AvailabilityIn Stock
CategoryAir Cylinders
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Tie Rod Cylinder (As Per ISO 15552 / VDMA 24562 Standards) - CS4 Series Details

Specification

Technical Data:
Cylinder bore Ø (mm)3240506380100125160200250
Cushion stroke (mm)21232323282840404050
Standard strokes (mm)25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500
Media: Compressed air - filtered - lubricated
Working pressure: 0.5 - 10 bar
Medium temperature:
RegularHigh temperature applications
+5°C to +60°C+5°C to +150°C Max
Materials of Construction: Aluminum, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature)
Mountings: Foot Mounting, Front / Rear Flange, Male Clevis, Female Clevis,Center Trunnion, Front Trunnion , Rear Trunnion
Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye
Ambient Temperature: -10°C to +70°C
