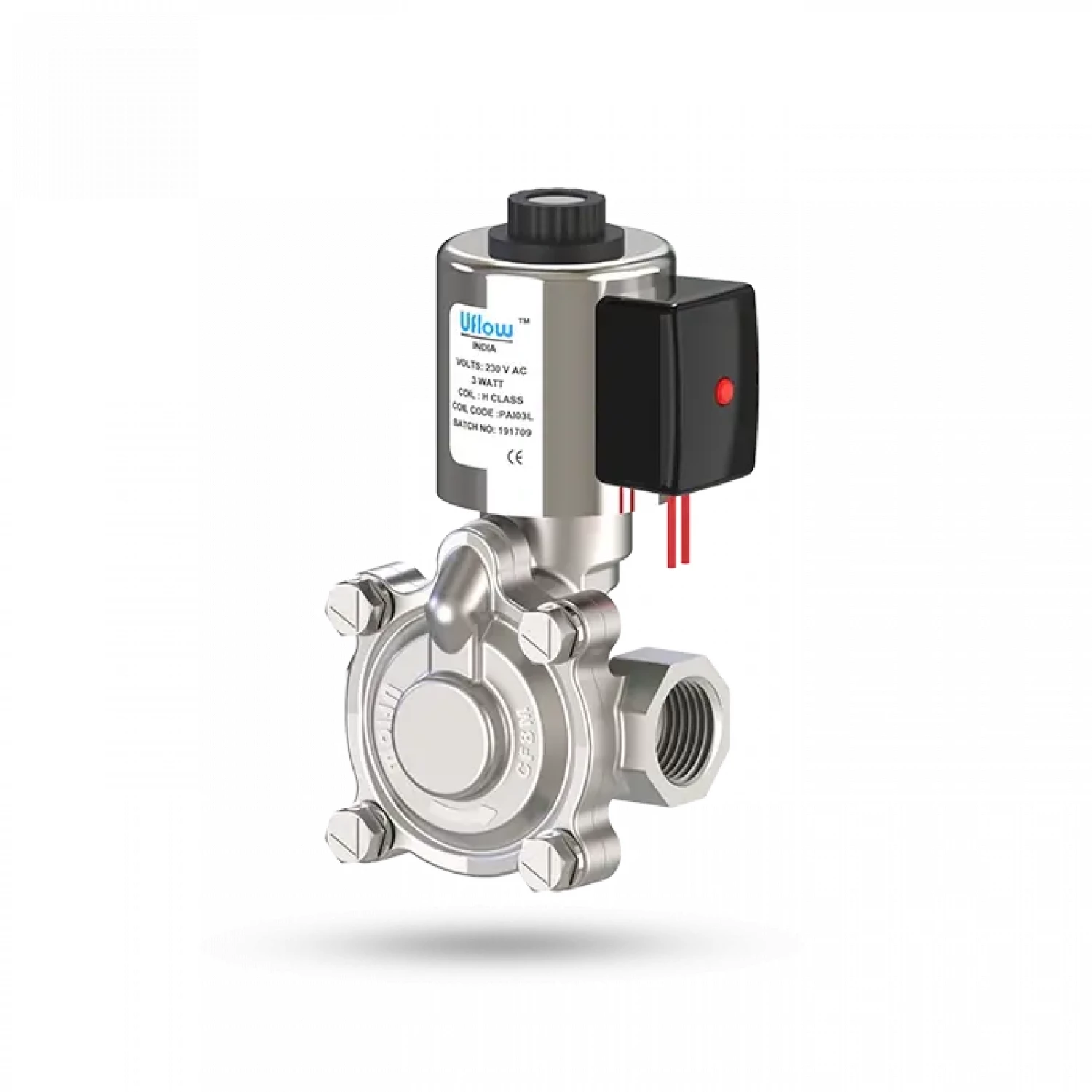

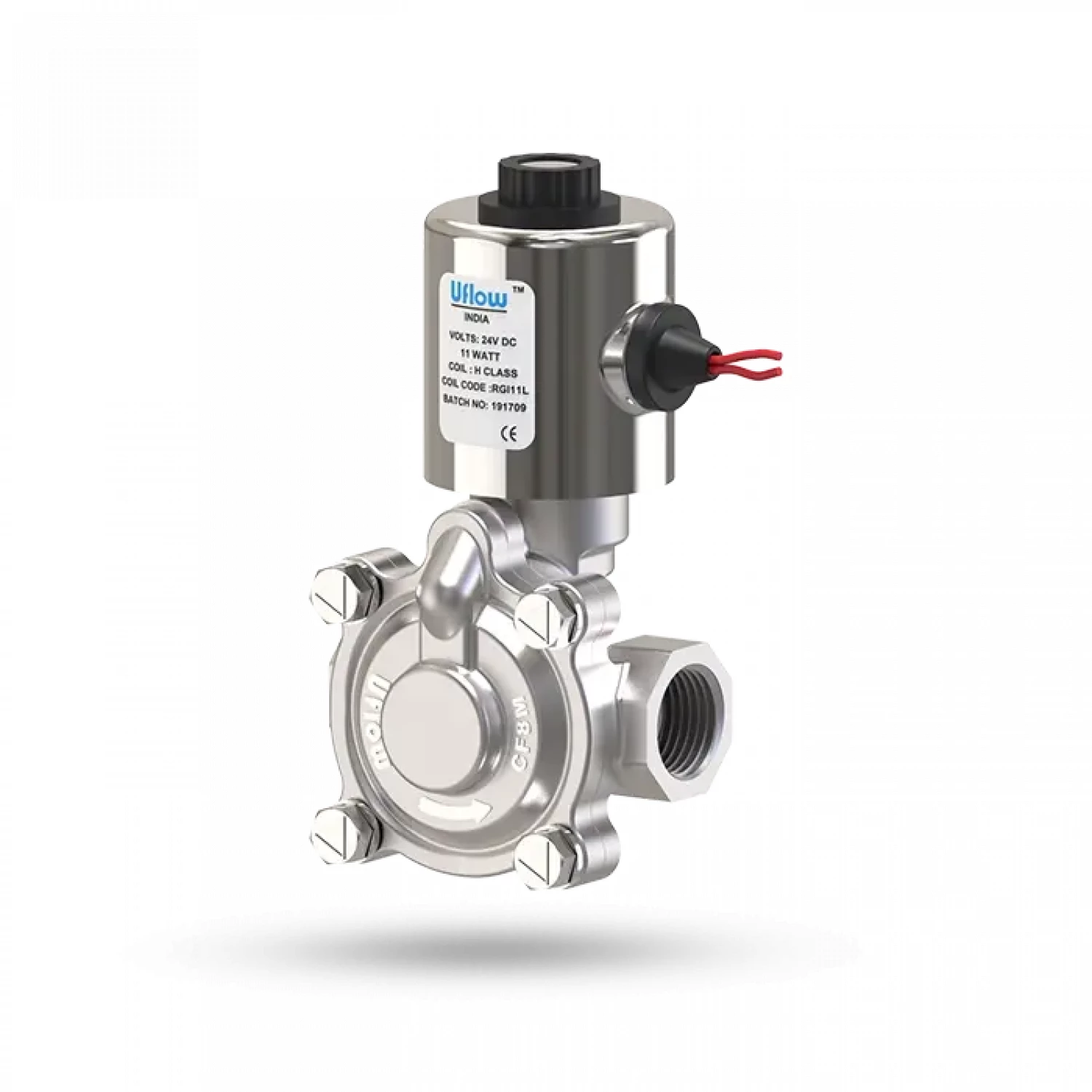

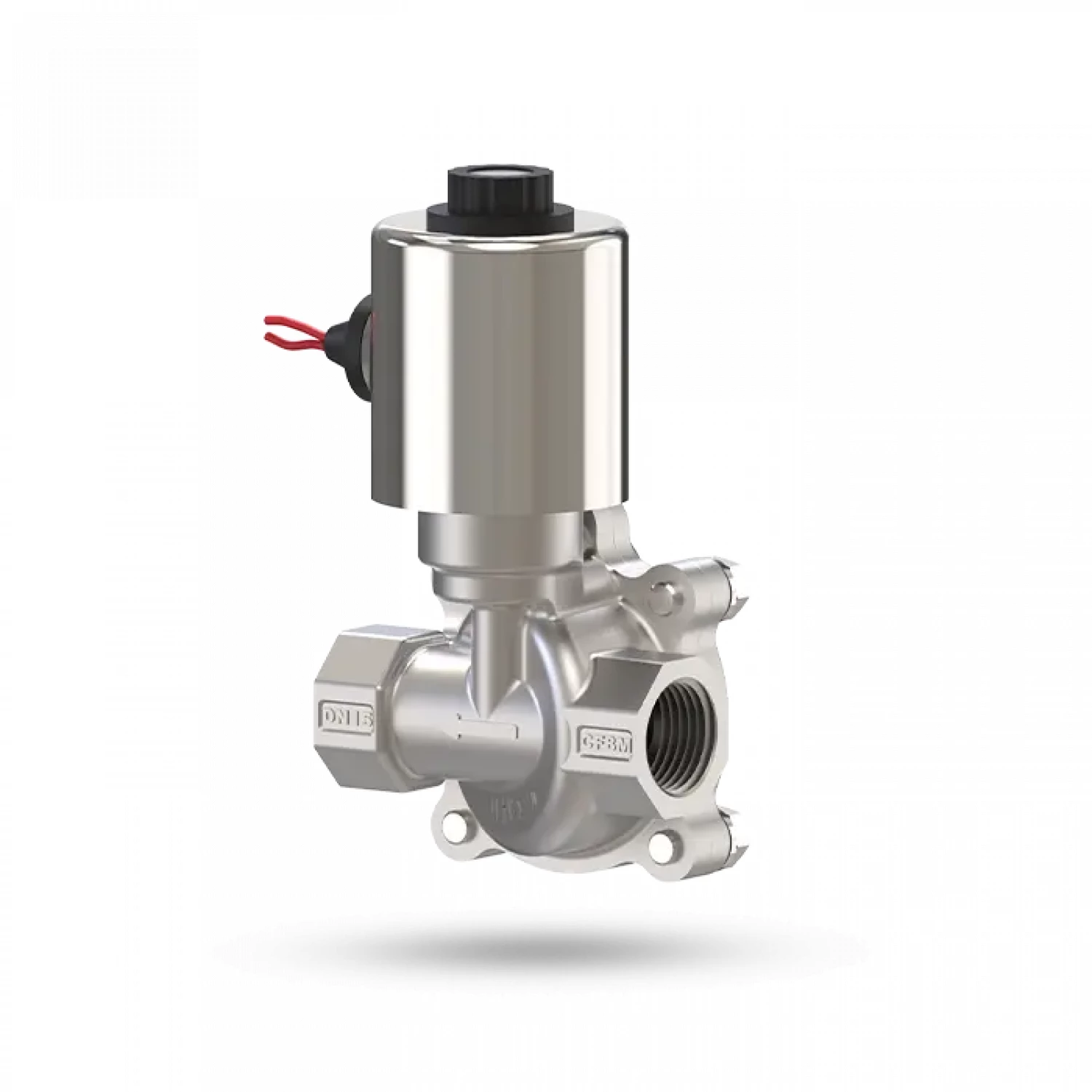

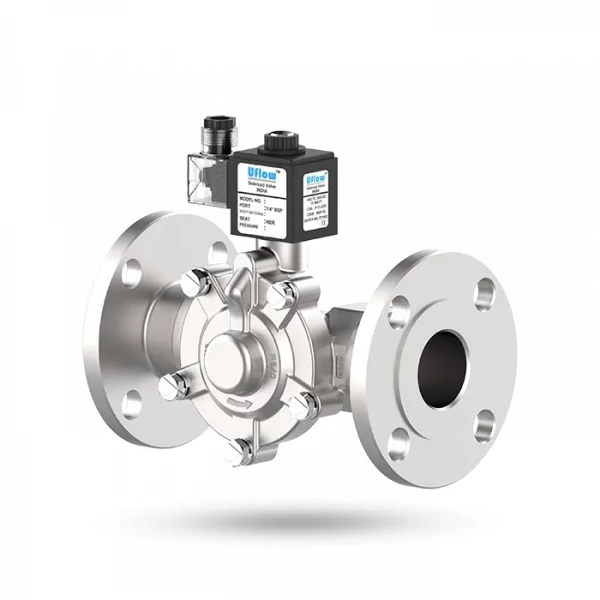

Uflow Pilot Operated Diaphragm Valve (NC / NO) - PCN Series

AvailabilityIn Stock
CategoryDiaphragm Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pilot Operated Diaphragm Valve (NC / NO) - PCN Series Details

Valve Information

  • Port: Refer to the technical data sheet (Available BSP / NPT)

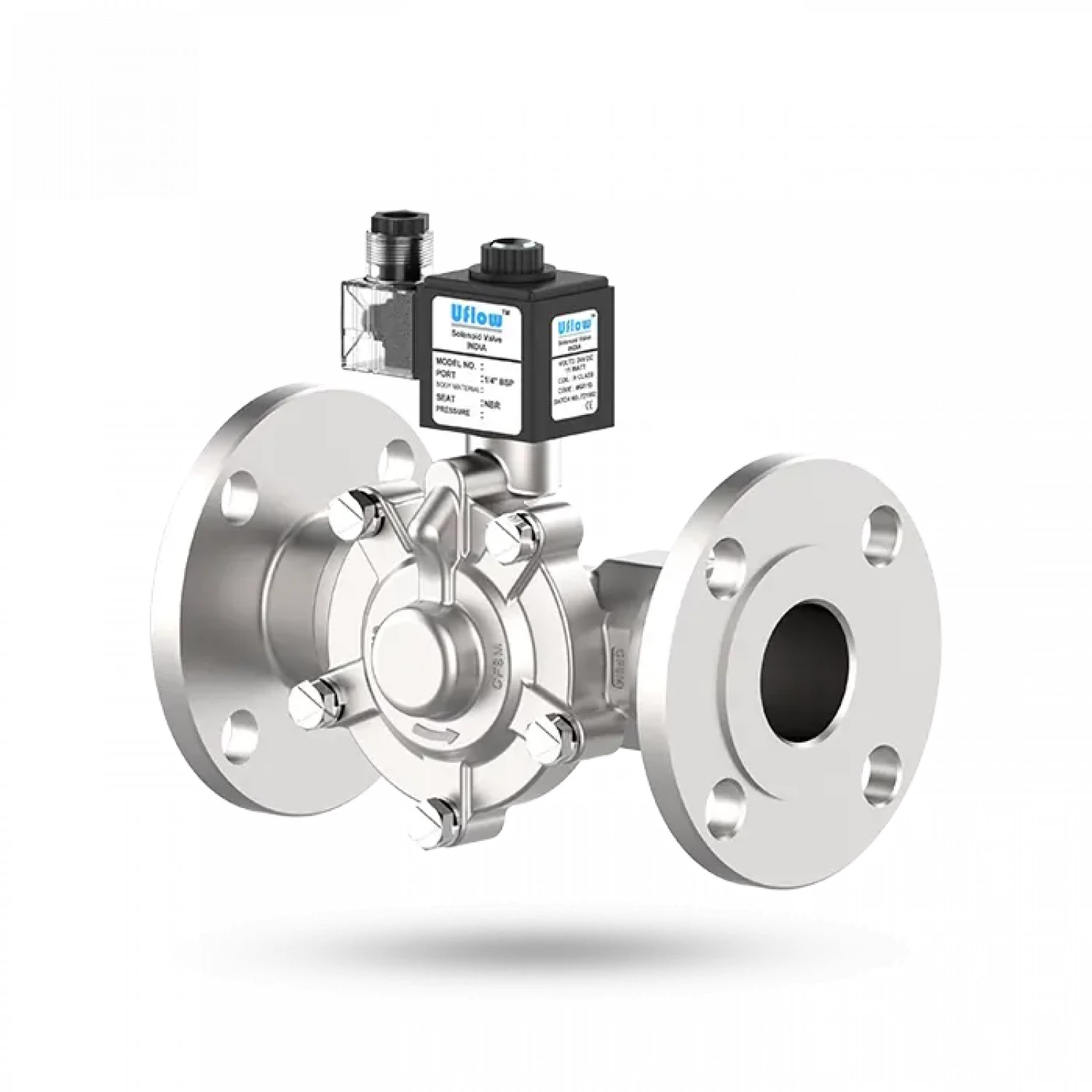

  • End Connection: Screwed / Flange
  • Body Material: SS ASTM A351 Grade CF8 / CF8M
  • Diaphragm:
    Nitrile (NBR)EPDMViton (FKM)
    -30° C to 90° C-10° C to 140° C-10° C to 180° C
  • Circumstance Temp: -10° C to 70° C
  • Media: Air, Water, Chemical, Gas, Oil, Diesel, Kerosene, LPG.
  • Main Features: Internal Parts are in superior corrosion-resistant steel (Equivalent to SS316L), Suitable for Food Industries, Pharmaceuticals, Chemical applications, & Highly corrosive environments
  • Operating Voltage & Power Consumption:
    24AC110AC230AC12DC24DC
    9W9W9W10W11W
  • Optional Feature: 90% Power saver series also available, Manual Override, Water hammering reducer also available to avoid water hammer forces.
  • Other Specification Data: Available on Request. - High Pressure 20Kg Series. - Manual Override

Coil Information

  • Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as required.

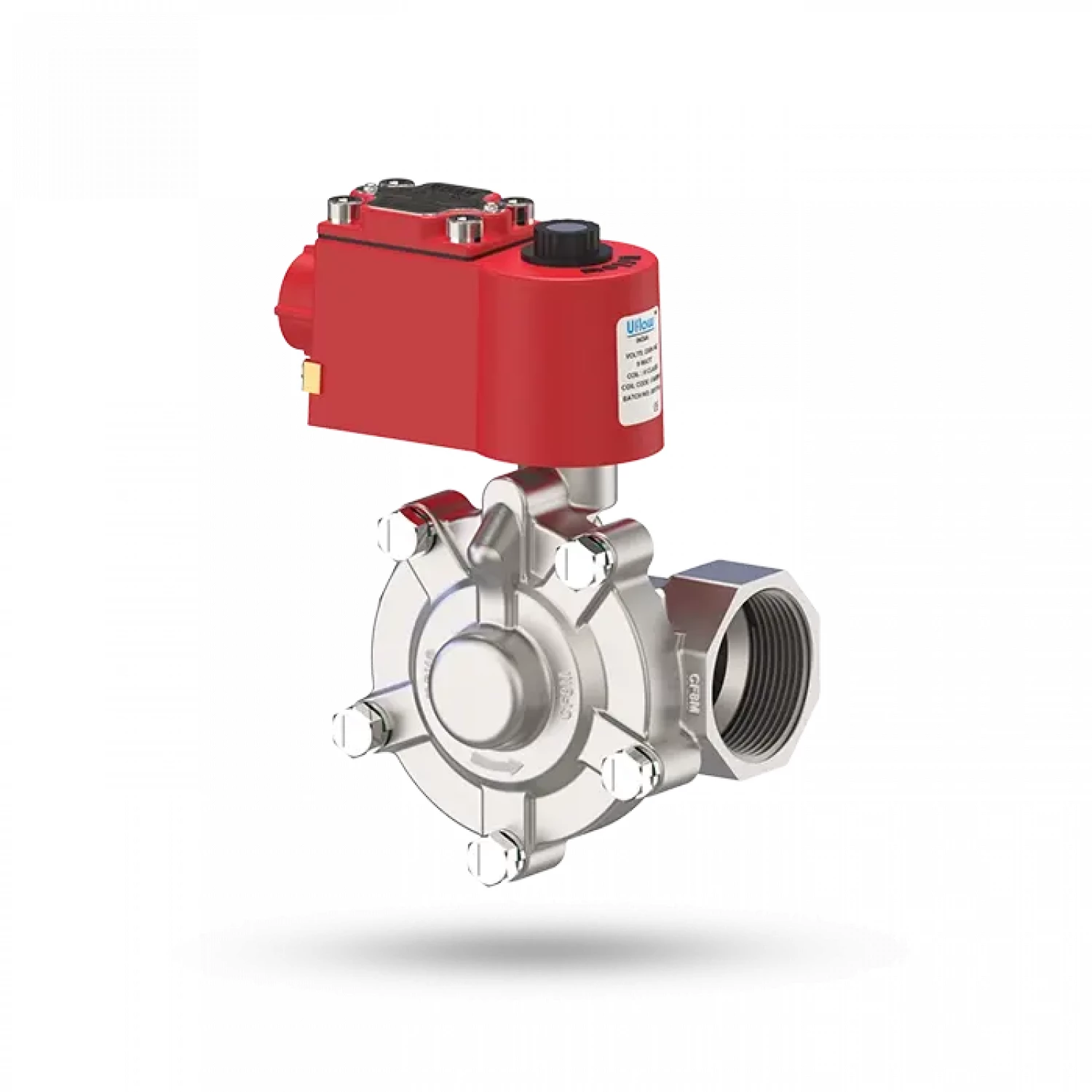

  • Coil Housing: Epoxy square coil, Metallic round enclosure, IP-68 Weatherproof enclosure.
  • Note: Use of a filter in the inlet port is recommended.

Technical Data

Model No.Body MaterialPipe (Inch)Orifice (mm)Min. Operating Pressure Kg/cm²Max. Operating Pressure Kg/cm²Seal & Diaphragm MaterialFlow Factor Kv m³ / hr
PCN-7ECF8 / CF8M⅜”150.512NBR / EPDM / VITON2
PCN-2ECF8 / CF8M½”170.512NBR / EPDM / VITON4.4
PCN-3ECF8 / CF8M¾”200.512NBR / EPDM / VITON3.7
PCN-4ECF8 / CF8M1”250.512NBR / EPDM / VITON10
PCN-5ECF8 / CF8M1¼”360.512NBR / EPDM / VITON12.2
PCN-6ECF8 / CF8M1½”360.512NBR / EPDM / VITON17.1
PCN-8ECF8 / CF8M2”470.512NBR / EPDM / VITON33.3
PCN-9ECF8 / CF8M2½”590.512NBR / EPDM / VITON43.5
PCN-AECF8 / CF8M3”710.512NBR / EPDM / VITON64.5
PCN-BICF8 / CF8M4”980.512NBR / EPDM / VITON115
