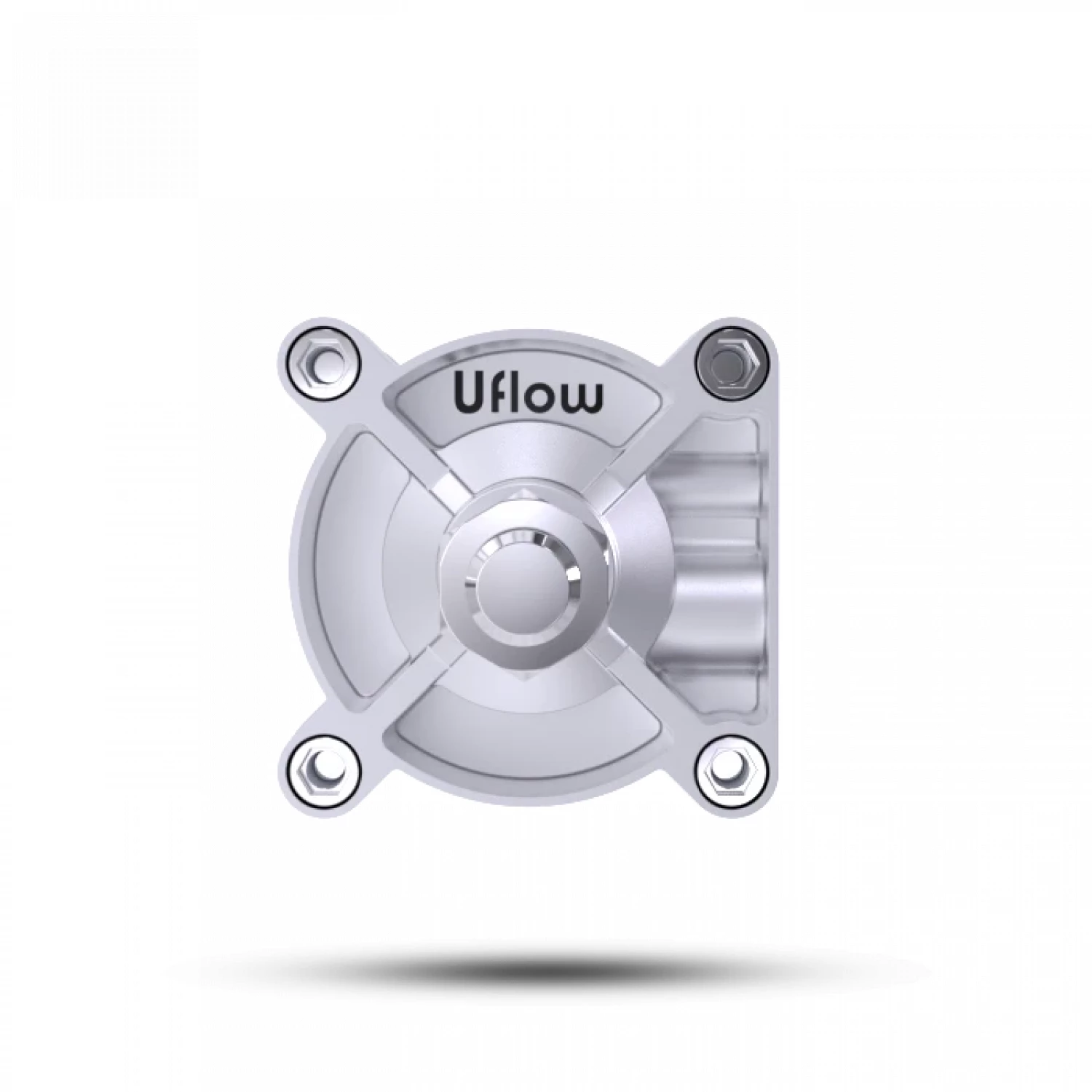

Uflow Pneumatic Cylinder Double End Double Acting (As Per ISO 15552 / VDMA 24562 Standards) - CS4 Series

AvailabilityIn Stock
CategoryPneumatic Cylinder
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Cylinder Double End Double Acting (As Per ISO 15552 / VDMA 24562 Standards) - CS4 Series Details

Valve Information

Technical Data

Cylinder bore Ø (mm)

32

40

50

63

80

100

125

160

200



Cushion stroke (mm)

21

23

23

23

28

28

40

40

40



Standard strokes (mm)

25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500

Media

 Compressed air - filtered - lubricated

Working pressure

 0.5 - 10 bar

Medium temperature

Regular

High Temperature Applications

+5°C to +60°C

+5°C to +150°C Max

Materials of Construction

 Aluminum, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature)

Mountings

 Foot Mounting, Front / Rear Flange, Male Clevis, Female Clevis, Center Trunnion, Front Trunnion, Rear Trunnion

Accessories

 Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye

Ambient Temperature

 -10°C to +70°C
