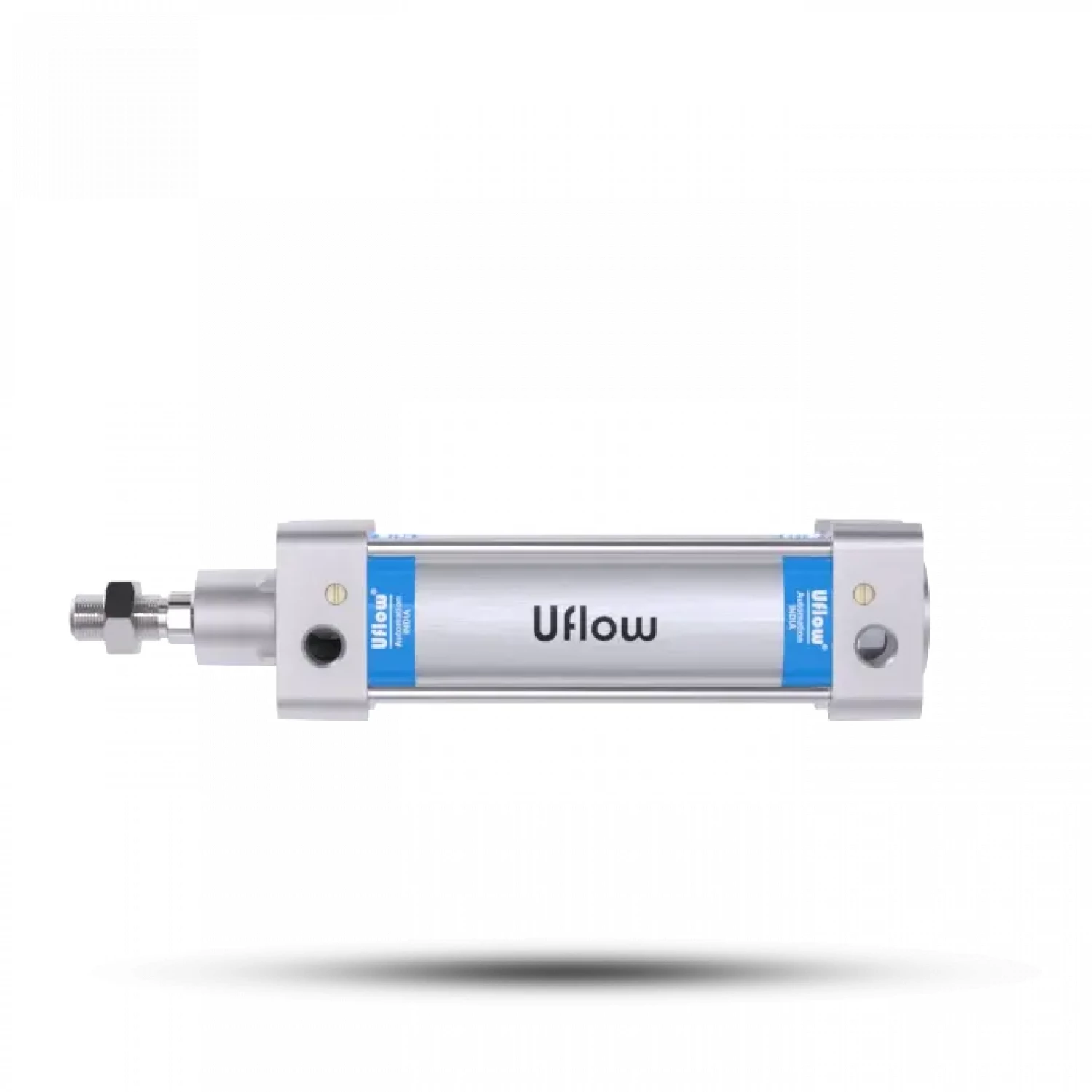

Uflow Pneumatic Tie Rod Cylinder (As Per ISO 6431 / CETOP RP43P, RP53P Standards) - CN4 Series

AvailabilityIn Stock
CategoryTie Rod Cylinder
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Tie Rod Cylinder (As Per ISO 6431 / CETOP RP43P, RP53P Standards) - CN4 Series Details

Valve Information

  • Technical Data:
    Cylinder bore Ø (mm)3240506380100
    Cushion stroke (mm)212323232828
    Standard strokes (mm)25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500
  • Media: Compressed air - filtered - lubricated
  • Working pressure: 0.5 - 10 bar
  • Medium temperature: C series
    RegularHigh temperature applications
    +5°C to +60°C+5°C to +150°C Max
  • Materials of Construction: Aluminum, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature)
  • Mountings: Foot Mounting, Front / Rear Flange, Male Clevis, Female Clevis, Center Trunnion, Front Trunnion, Rear Trunnion
  • Accessories: Clevis Foot Bracket, Wall Mounting Bracket, Trunnion Bracket, Rod End Fork, Rod End Aligner, Rod End Spherical Eye
  • Ambient Temperature: -10°C to +70°C
