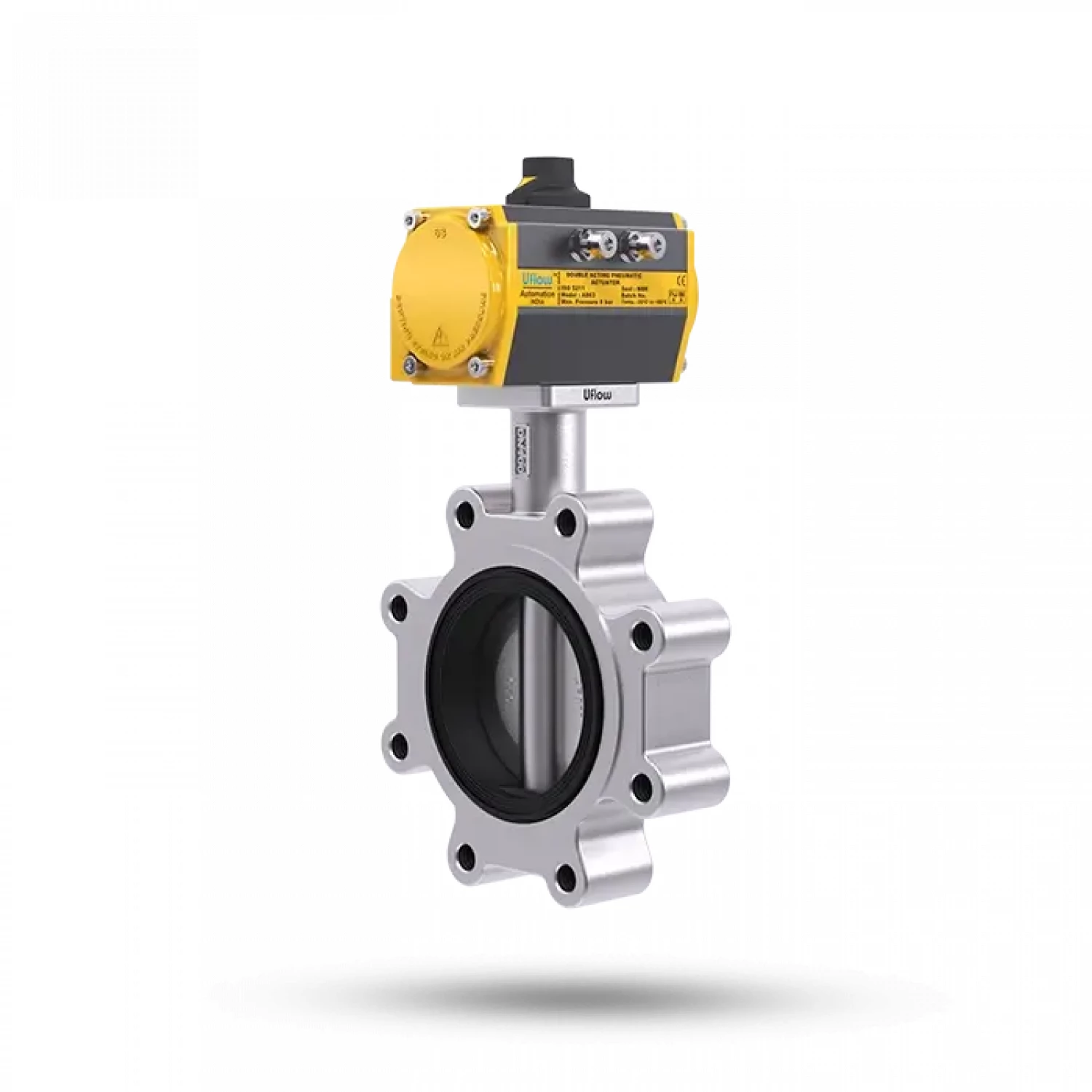

Uflow Pneumatic Operated Lug Type Butterfly Valve - PN10 - BL Series

AvailabilityIn Stock
CategoryButterfly Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Operated Lug Type Butterfly Valve - PN10 - BL Series Details

Specifications

End Connection:

Lug

Range:

DN50 - DN300

Suitable to:

ASMI B16.5 150#

Pressure Range:

PN06, PN10

Leakage Class:

100% Tightness at fully differential pressure

Standard:

API 609, BS 5155, ISO 5211, API 598, ASME B16.5

Body Material:

Cast Iron(CI), SGI, WCB, CF8, CF8M

Disc Material:

SGI, CF8, CF8M, WCB

Stem Material:

SS410, SS304, SS316

Body Liner / Seat Material:

NBR, EPDM, VITON

Shaft Bearing Material:

PTFE

Diaphragm & Media Temp:

PTFE

RPTFE

CFT

GFT

-30°C to 200°C

-30°C to 200°C

-30°C to 200°C

-30°C to 180°C

Technical Data - with Double-Acting Actuator

SizeActuatorCouplerABØDF/FØLMNOMounting Flange
50 MM50NA170-50431209913085F05
65 MM50NA192-65461409913085F05
80 MM50NA219-8046152.59913085F05
100 MM63NA258-10052190.5112147105F07
125 MM80NA287-12556216128170114F07
150 MM80NA318-15056241128170114F07
200 MM100NA393-20060298154220150F10
250 MM125NA465-25068362185389174F10
300 MM150NA552-30078432219465205F12

Technical Data - with Single-Acting Actuator

SizeActuatorCouplerABØDF/FØLMNOMounting Flange
50 MM50NA170-50431209916284.9F05
65 MM63C1455192406546140112202105F05
80 MM80C1755219408046152.5128234114F05
100 MM100C42772584010052190.5153324151F07
125 MM100C72772874012556216153324151F07
150 MM125C72703186115056241185389173F07
200 MM150C28003936120060298219465205F10
250 MM150C28004656125068362219465205F10

All dimensions are in mm. All dimensions are approx.
