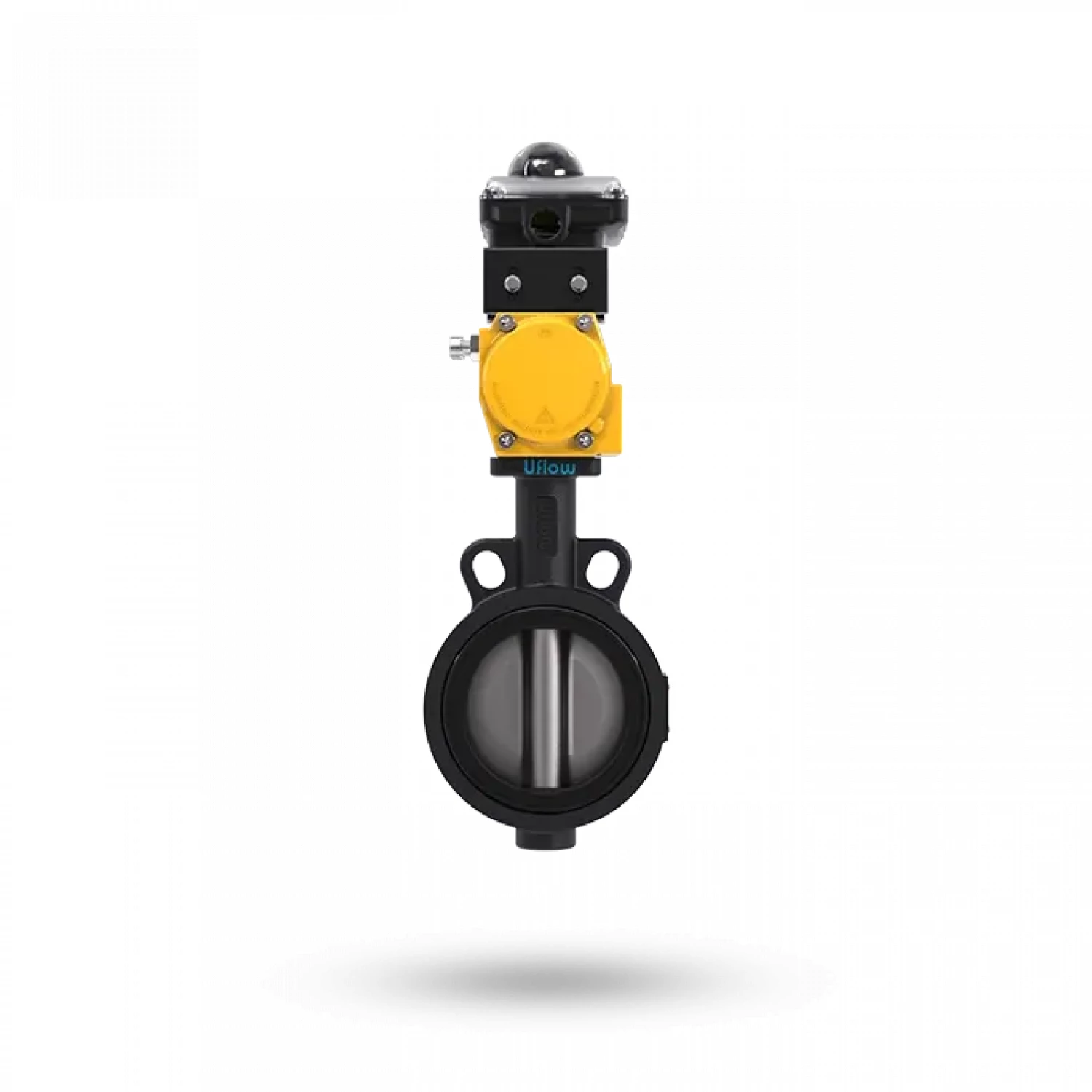

Uflow Pneumatic Operated Wafer Type Butterfly Valve - PN16 - BW Series

AvailabilityIn Stock
CategoryButterfly Valves
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Uflow Pneumatic Operated Wafer Type Butterfly Valve - PN16 - BW Series Details

Specifications

End Connection:

Wafer - API 609 (CAT - A)

Range:

DN40 - DN300

Suitable to:

ASMI B16.5 150#

Pressure Range:

PN06, PN10, PN16

Leakage Class:

100% Tightness at fully differential pressure

Standard:

API 609, BS 5155, ISO 5211, API 598, ASME B16.5

Body Material:

Cast Iron(CI), SGI, WCB, CF8, CF8M

Disc Material:

SGI, CF8, CF8M, WCB

Stem Material:

SS410, SS304, SS316

Body Liner / Seat Material:

NBR, EPDM, VITON

Shaft Bearing Material:

PTFE

Diaphragm & Media Temp:

PTFE

RPTFE

CFT

GFT

-30°C to 200°C

-30°C to 200°C

-30°C to 200°C

-30°C to 180°C

Technical Data - With Double-Acting Actuator

SizeActuatorCouplerABØDF/FØKØLMNOMounting Flange
40 MM50NA140-4033105989913085F05
50 MM50NA165-50431251149913085F05
65 MM50NA192-65461451279913085F05
80 MM63C1455218408046164146112147105F05
100 MM80C47772434010052190179128170114F07
125 MM80NA276-12556216200128170114F07
150 MM100C72773104015056241225154220150F07
200 MM125NA404-20060298292185389174F07/F10
250 MM150C28004706125068362350219465205F07/F10

Technical Data - With Single-Acting Actuator

SizeActuatorCouplerABØDF/FØKØLMNOMounting Flange
40 MM63C145514040403310598112202105F05
50 MM80C1755165405043125114128234114F05
65 MM80C1755192406546145127128234114F05
80 MM100C1257218408046164146153.5324151F05
100 MM100C42772434010052190179153.5324151F07
125 MM125C72702766112556216200185389173F07
150 MM150C78703106115056241225219465205F07
200 MM150C28004046120060298292219465205F07/F10
250 MM150C28004706125068362350219465205F07/F10
